Vertical Mini-Box Stitchers VS2474, VS2485, VS2487, VS24116, VS24118
| LxWxH | 240x440x500 mm | ||
| Weight | 40 kgs | ||
| Wire used | 24# flat wire 0.48x0.85 mm | ||
| Voltage | 110V single phase 1/8 HP, 60Hz | 220V single phase 1/8 HP, 50Hz | |
| Operating Type | Single shoot with pedal |
Continue shoot with pedal
|
Touch Switch |
| Anvil Type | Standard type | L type | |

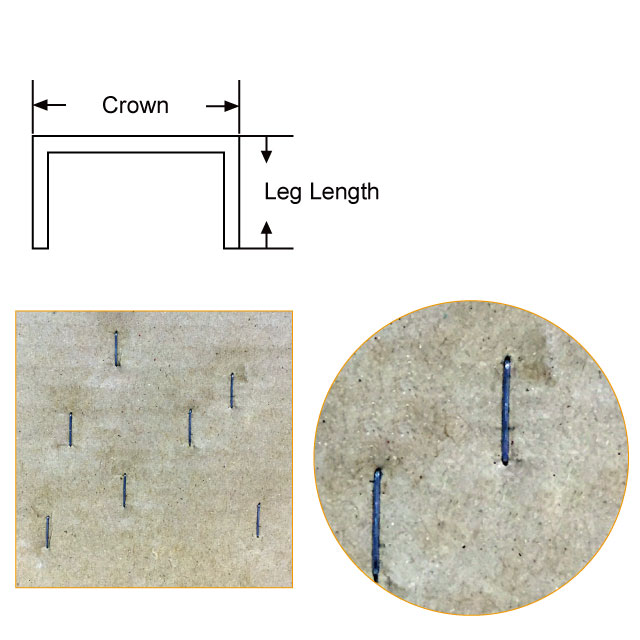

| Model No | Crown | Leg Length | Throat Depth |
| VS2474 | 7 mm | 4.0 mm | 210mm |
| VS2485 | 8 mm | 5.0 mm | 210 mm |
| VS2487 | 8 mm | 7.0 mm | 210 mm |
| VS24116 | 11 mm | 6.0 mm | 210 mm |
| VS24118 | 11 mm | 8.0 mm | 210 mm |
APPLICATION
Cardboard box packaging
Color box packaging
Blister packs packaging
FEATURES
Easy operation - automatic stapling and foot pedal control
Mini size - occupied only 24x44 cm
Precision engineered parts - extend you a faultless job and perfect clinching
Deep throat - up to 21 cm for a wide range of stapling
