PNPB-BR SERIES
BRASS BLIND RIVET NUT
PLUSNUT-PRE-BULBED

METRIC SIZE :MM

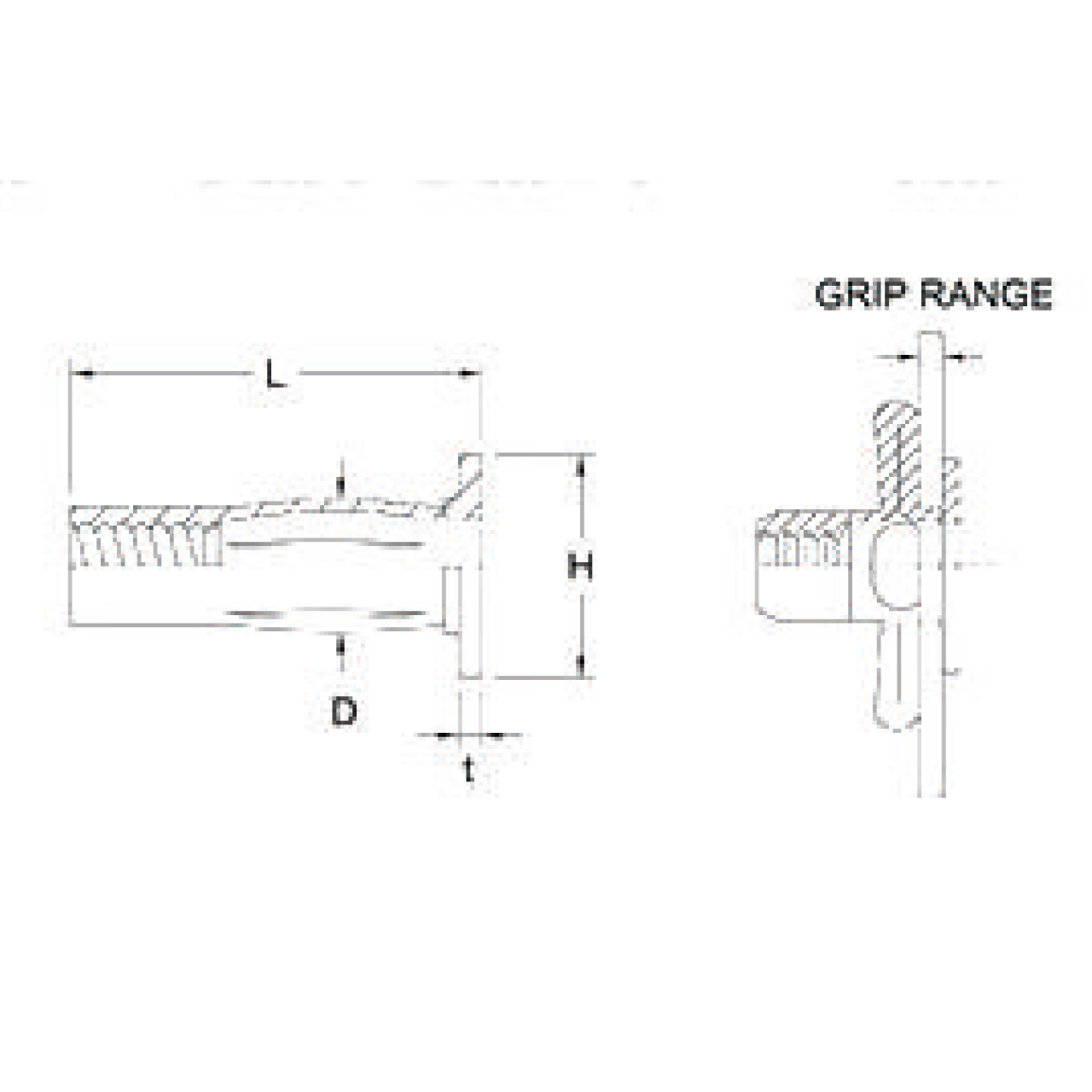

PART NO.	THREAD SIZE	GRIP RANGE	HOLE SIZE	H	T	D	L
PNPB-BR6	M6x1.0	0.5-7.1	9.80-9.93	15.90	1.50	9.76	26.20
PNPB-BR6L	M6x1.0	7.1-12.7	9.80-9.93	15.90	1.50	9.76	32.00
PNPB-BR8	M8x1.25	0.5-7.1	12.29-12.42	19.00	1.57	12.25	30.00
PNPB-BR8L	M8x1.25	7.1-12.7	12.29-12.42	19.00	1.57	12.25	35.80
PNPB-BR10	M10x1.5	0.5-7.1	14.27-14.45	22.20	2.24	14.23	32.30
PNPB-BR10L	M10x1.5	7.1-12.7	14.27-14.45	22.20	2.24	14.23	37.80















METRIC SIZE :INCH

PART NO.	THREAD SIZE	GRIP RANGE	HOLE SIZE	H	T	D	L
PNPB-BR1032	UNC 10-32	0.020-0.175	0.312-0.317	0.500	0.038	0.310	0.800
PNPB-BR1032L	UNC 10-32	0.175-0.320	0.312-0.317	0.500	0.038	0.310	0.940
PNPB-BR420	UNC 1/4-20	0.020-0.280	0.386-0.391	0.625	0.058	0.384	1.030
PNPB-BR420L	UNC 1/4-20	0.280-0.500	0.386-0.391	0.625	0.058	0.384	1.260
PNPB-BR518	UNC 5/16-18	0.020-0.280	0.484-0.489	0.750	0.062	0.482	1.180
PNPB-BR518L	UNC 5/16-18	0.280-0.500	0.484-0.489	0.750	0.062	0.482	1.410
PNPB-BR616	UNC 3/8-16	0.020-0.280	0.562-0.569	0.875	0.088	0.560	1.270
PNPB-BR616L	UNC 3/8-16	0.280-0.500	0.562-0.569	0.875	0.088	0.560	1.490
