SRV-BR SERIES
SRV-BR SERIES
BRASS SEAL BLIND RIVET NUT
METRIC SIZE :MM
BRASS SEAL BLIND RIVET NUT
METRIC SIZE :MM

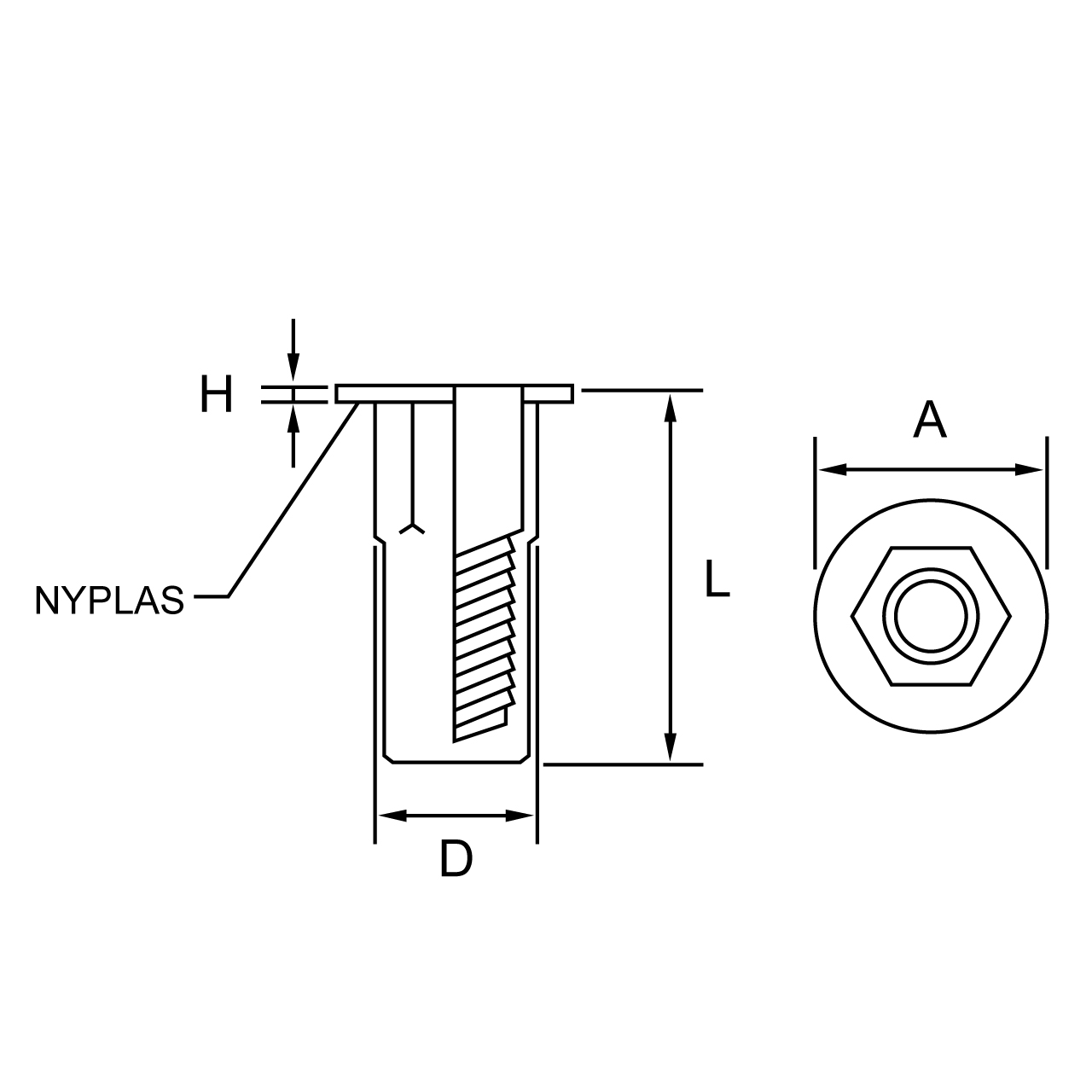

| PART NO. | THREAD SIZE | GRIP RANGE | USABLE THREAD MIN | D-0.1 | L±0.4 | A±0.3 | H+0.15/-0.05 |
| SRV-BR8 | M8x1.25 | 1.2 | 22 | 10.9 | 27 | 16 | 0.8 |
| SRV-BR9 | M9x1.25 | 0.047 | 0.866 |
0.429 | 1.063 | 0.63 | 0.031 |
