LFSCE-BR SERIES
BRASS BLIND RIVET NUT
LARGE FLANGE SPLINED, CLOSED END

METRIC SIZE :MM

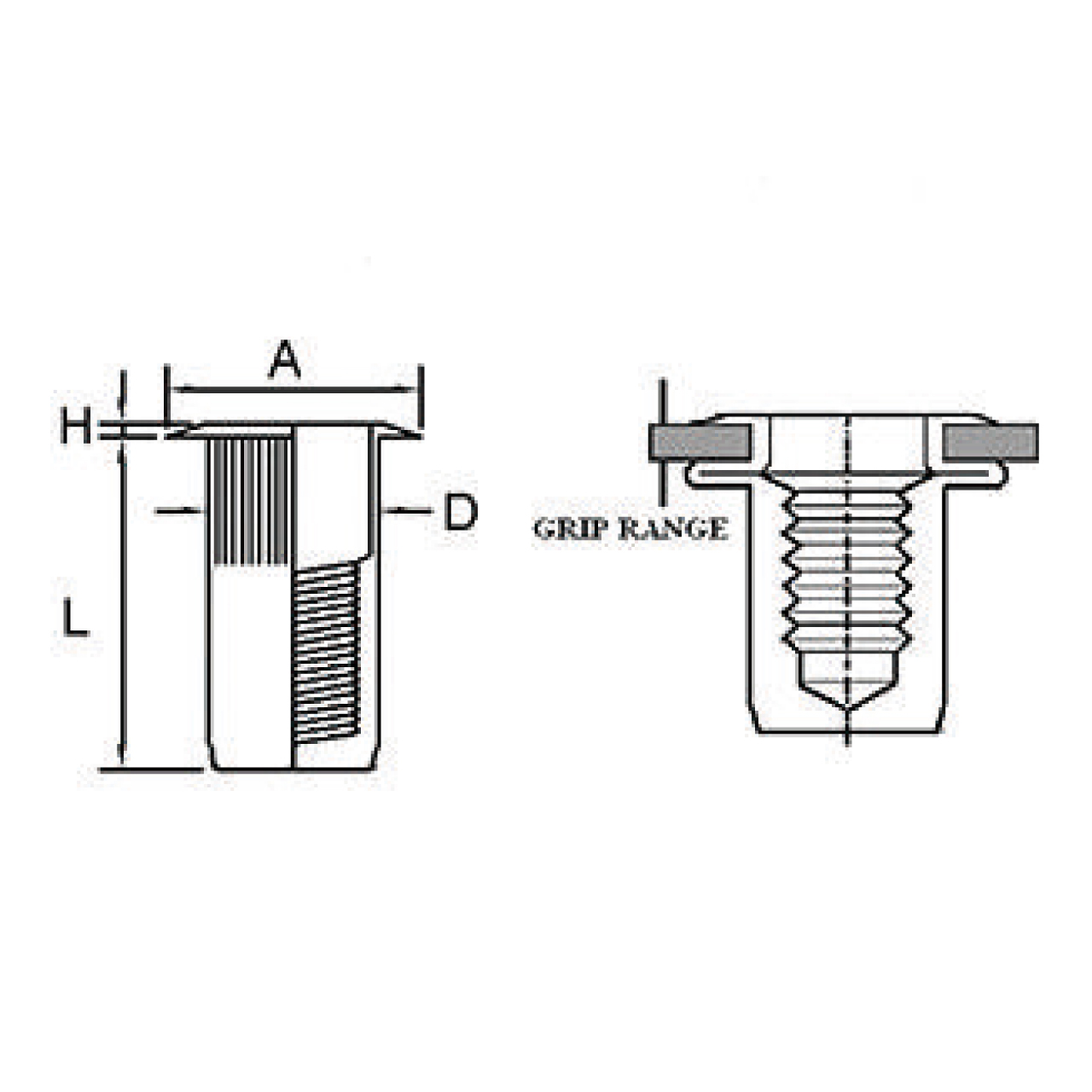

PART NO.	THREAD SIZE	GRIP RANGE	HOLE SIZE+0.1	D-0.1	L±0.4	A±0.3	H+0.15/-0.05
LFSCE-BR4	M4x0.7	0.5-2.0	6.80	6.8	18.80	9.90	0.76
LFSCE-BR5	M5x0.8	0.5-3.3	7.60	7.55	25.15	10.10	0.76
LFSCE-BR6	M6x1.0	0.7-4.0	10.0	9.95	30.23	12.70	0.76
LFSCE-BR8	M8x1.25	0.7-4.0	13.50	13.45	35.31	17.00	0.89
LFSCE-BR10	M10x1.5	0.7-4.0	13.50	13.45	35.31	17.00	0.89













METRIC SIZE :INCH

PART NO.	THREAD SIZE	GRIP RANGE	HOLE SIZE+0.04	D-0.004	L±0.015	A±0.012	H+0.006/-0.002
LFCE-BR632	UNC 6-32	0.02-0.08	0.266	0.265	0.740	0.375	0.030
LFCE-BR832	UNC 8-32	0.02-0.08	0.266	0.265	0.740	0.375	0.030
LFCE-BR1024	UNC 10-24	0.02-0.13	0.297	0.296	0.990	0.400	0.030
LFCE-BR1032	UNC 10-32	0.02-0.13	0.297	0.296	0.990	0.400	0.030
LFCE-BR420	UNC 1/4-20	0.027-0.150	0.391	0.390	1.190	0.500	0.030
LFCE-BR518	UNC 5/16-18	0.027-0.150	0.531	0.530	1.390	0.670	0.035
LFCE-BR616	UNC 3/8-16	0.027-0.150	0.531	0.530	1.390	0.670	0.035
