SFCE-BR SERIES
BRASS BLIND RIVET NUT
SMALL FLANGE, CLOSED END

METRIC SIZE :MM

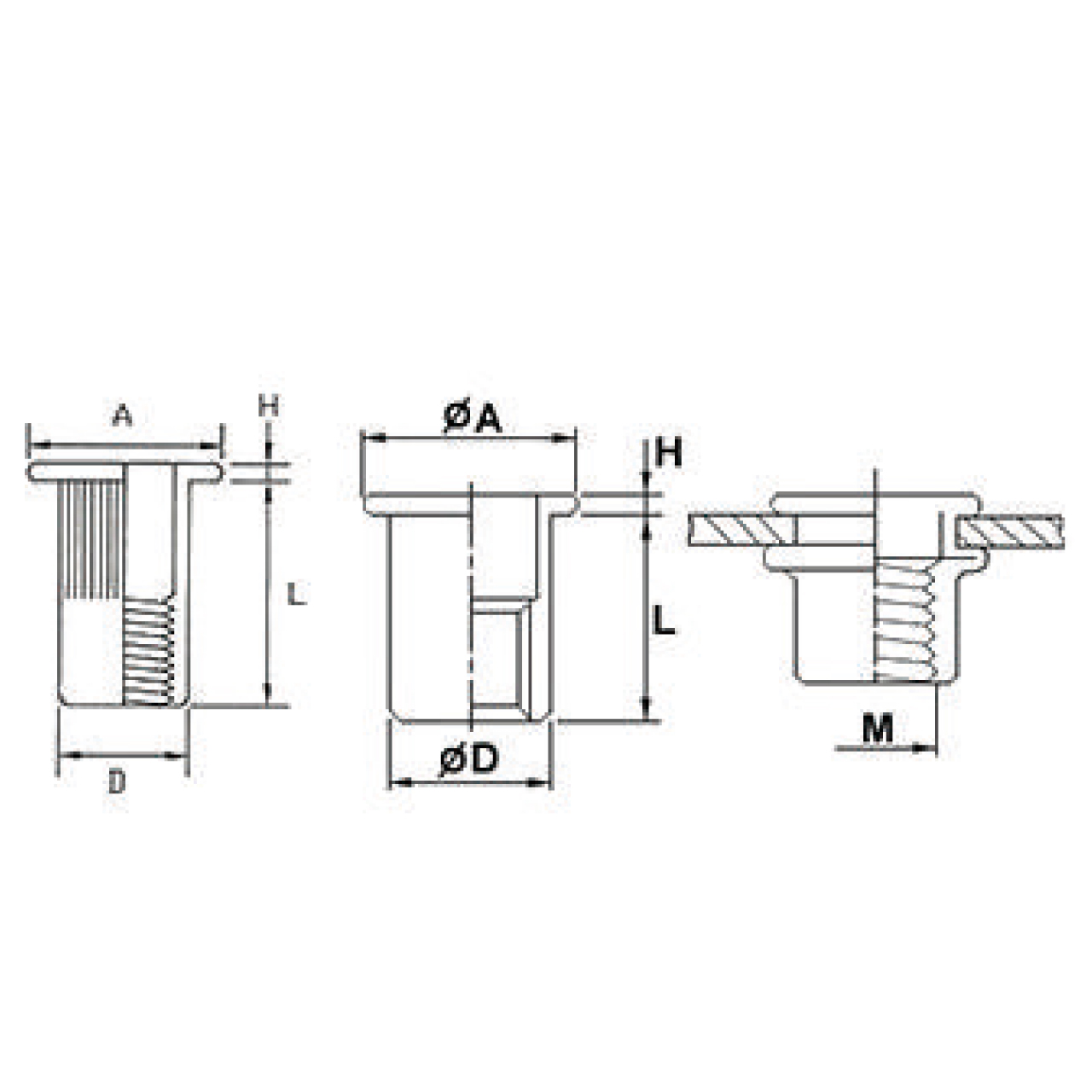

PART NO.	THREAD SIZE	GRIP RANGE	HOLE SIZE+0.1	D-0.1	L±0.4	A±0.3	H+0.15/-0.05
SFCE-BR4	M4x0.7	0.5-2.5	6.4	6.3	14.9	7.3	0.5
SFCE-BR5	M5x0.8	0.5-2.5	7.2	7.1	20.2	8.1	0.5
SFCE-BR6	M6x1.0	1.0-4.0	9.6	9.5	23.4	10.5	0.5
SFCE-BR8	M8x1.25	1.0-4.0	10.6	10.5	23.6	11.5	0.5
SFCE-BR10	M10x1.5	1.0-4.0	12.8	12.7	28.2	13.7	0.5













METRIC SIZE :INCH

PART NO.	THREAD SIZE	GRIP RANGE	HOLE SIZE+0.04	D-0.004	L±0.015	A±0.3	H+0.15/-0.5
SFCE-BR632	UNC 6-32	0.02-0.10	0.253	0.249	0.590	0.289	0.020
SFCE-BR832	UNC 8-32	0.02-0.10	0.253	0.249	0.590	0.289	0.020
SFCE-BR1024	UNC 10-24	0.02-0.10	0.284	0.280	0.800	0.320	0.020
SFCE-BR1032	UNC 10-32	0.02-0.10	0.284	0.280	0.800	0.320	0.020
SFCE-BR420	UNC 1/4-20	0.04-0.15	0.378	0.374	0.920	0.414	0.020
SFCE-BR518	UNC 5/16-18	0.04-0.15	0.420	0.414	0.920	0.456	0.020
SFCE-BR616	UNC 3/8-16	0.04-0.15	0.504	0.50	1.110	0.540	0.020
