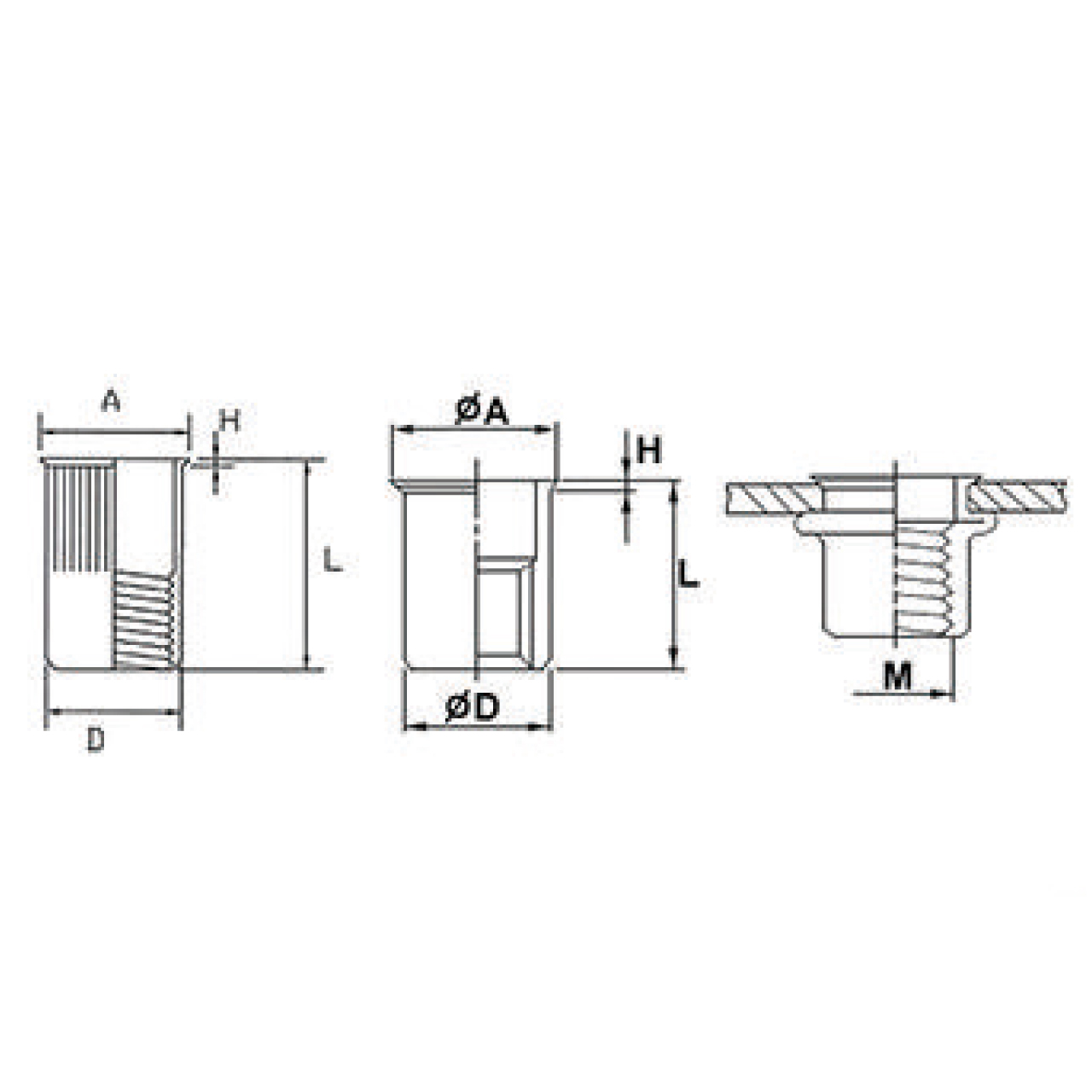

UNCRF -BR SERIES
BRASS BLIND RIVET NUT
SMALL FLANGE, OPEN END

METRIC SIZE :MM

PART NO.	THREAD SIZE	GRIP RANGE	HOLE SIZE+0.1	D-0.1	L±0.4	A±0.3	H+0.15/-0.05
UNCRF-BR3	M3x0.5	0.5-2.0	5.1	5.0	9.0	6.0	0.5
UNCRF-BR4	M4x0.7	0.5-2.5	6.1	6.0	10.0	7.0	0.5
UNCRF-BR5	M5x0.8	0.5-2.5	7.1	7.0	12.0	8.0	0.5
UNCRF-BR6	M6x1.0	1.0-4.0	9.1	9.0	15.0	10.0	0.5
UNCRF-BR8	M8x1.25	1.0-4.0	11.1	11.0	16.0	12.0	0.5
UNCRF-BR10	M10x1.5	1.0-4.0	13.1	13.0	18.6	14.0	0.5

METRIC SIZE :MM

PART NO.	THREAD SIZE	GRIP RANGE	HOLE SIZE+0.1	D-0.1	L±0.4	A±0.3	H+0.15/-0.05
UNCRF-BR3	M3x0.5	0.5-2.0	4.9	4.8	9.0	5.8	0.5
UNCRF-BR4	M4x0.7	0.5-2.5	6.4	6.3	10.0	7.3	0.5
UNCRF-BR5	M5x0.8	0.5-2.5	7.2	7.1	12.0	8.1	0.5
UNCRF-BR6	M6x1.0	1.0-4.0	9.6	9.5	15.0	10.5	0.5
UNCRF-BR8	M8x1.25	1.0-4.0	10.6	10.5	16.0	11.5	0.5
UNCRF-BR10	M10x1.5	1.0-4.0	12.8	12.7	18.6	13.7	0.5

METRIC SIZE :INCH


PART NO.	THREAD SIZE	GRIP RANGE	HOLE SIZE+0.04	D-0.004	L±0.015	A±0.012	H+0.006/-0.002
UNCRF-BR440	UNC 4-40	0.02-0.08	.192	.188	.355	.228	.020
UNCRF-BR632	UNC 6-32	0.02-0.10	.253	.249	.409	.289	.020
UNCRF-BR832	UNC 8-32	0.02-0.10	.253	.249	.409	.289	.020
UNCRF-BR1024	UNC 10-24	0.02-0.10	.284	.280	.464	.320	.020
UNCRF-BR1032	UNC 10-32	0.02-0.10	.284	.280	.464	.320	.020
UNCRF-BR420	UNC 1/4-20	0.04-0.15	.378	.374	.575	.414	.020
UNCRF-BR518	UNC 5/16-18	0.04-0.15	.420	.414	.630	.456	.020
UNCRF-BR616	UNC 3/8-16	0.04-0.16	.504	.500	.708	.540	.020
