UNCFT-BR SERIES
UNCFT-BR SERIES
BRASS BLIND RIVET NUT
LARGE FLANGE
METRIC SIZE :MM
METRIC SIZE :INCH
BRASS BLIND RIVET NUT
LARGE FLANGE
METRIC SIZE :MM

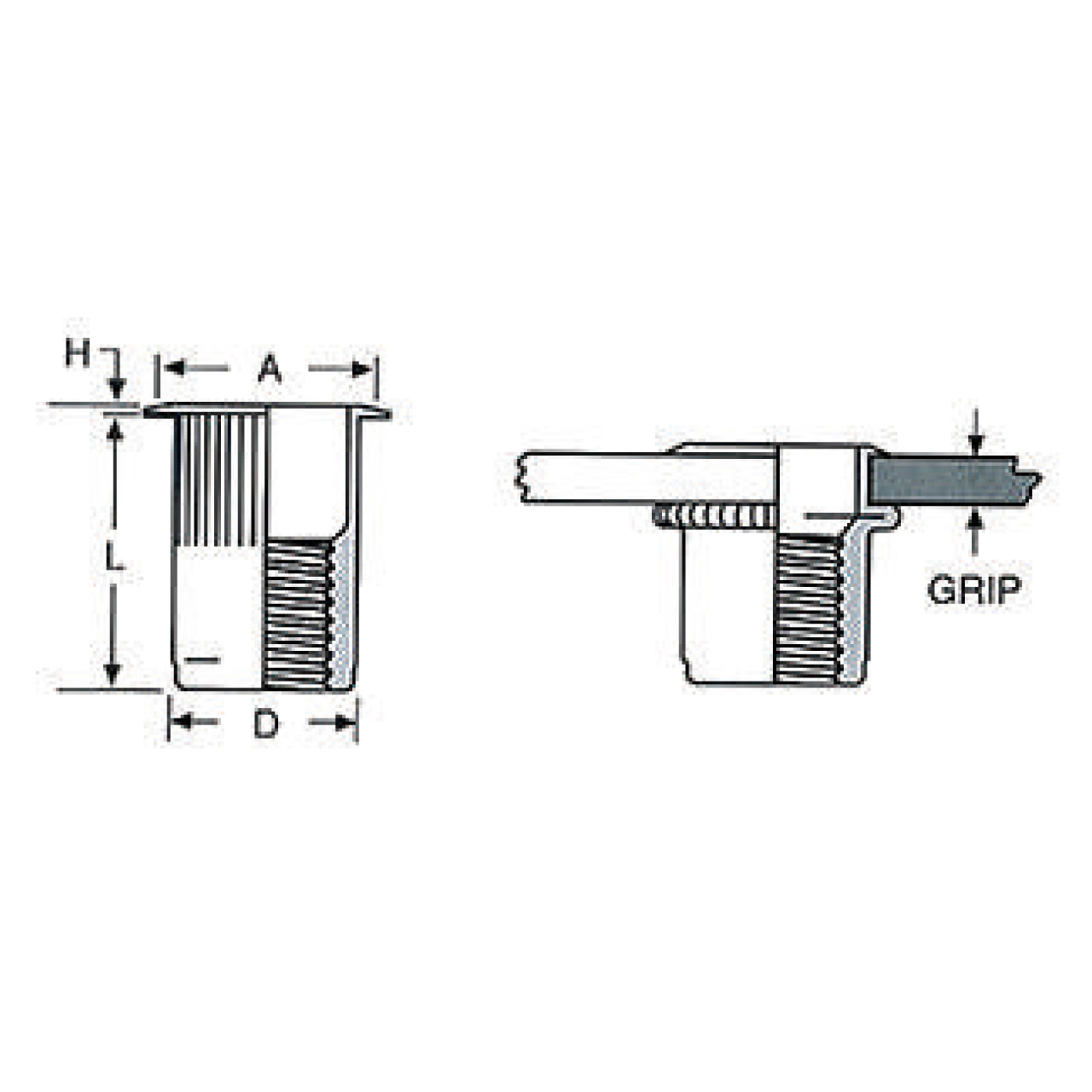

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | D-0.1 | L±0.4 | A±0.3 | H+0.15/-0.05 |
| UNCFT-BR4 | M4x0.7 | 0.5-2.0 | 6.80 | 6.73 | 10.67 | 9.91 | 0.76 |
| UNCFT-BR5 | M5x0.8 | 0.5-3.3 | 7.60 | 7.52 | 12.07 | 10.54 | 0.76 |
| UNCFT-BR6 | M6x1.0 | 0.7-4.0 | 10.00 | 9.91 | 14.73 | 12.70 | 0.76 |
| UNCFT-BR8 | M8x1.25 | 0.7-4.0 | 13.50 | 13.46 | 17.53 | 17.40 | 0.89 |
| UNCFT-BR10 | M10x1.5 | 0.7-4.0 | 13.50 | 13.46 | 17.53 | 17.40 | 0.89 |
METRIC SIZE :INCH
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.04 | D-0.004 | L±0.015 | A±0.012 | H+0.006/-0.002 |
| UNCFT-BR632 | UNC 6-32 | 0.02-0.08 | .266 | .265 | .420 | .390 | .030 |
| UNCFT-BR832 | UNC 8-32 | 0.02-0.08 | .266 | .265 | .420 | .390 | .030 |
| UNCFT-BR1024 | UNC 10-24 | 0.02-0.13 | .297 | .296 | .475 | .415 | .030 |
| UNCFT-BR1032 | UNC 10-32 | 0.02-0.13 | .297 | .296 | .475 | .415 | .030 |
| UNCFT-BR420 | UNC 1/4-20 | 0.027-0.150 | .391 | .390 | .580 | .500 | .030 |
| UNCFT-BR518 | UNC 5/16-18 | 0.027-0.150 | .531 | .530 | .690 | .685 | .035 |
| UNCFT-BR616 | UNC 3/8-16 | 0.027-0.150 | .531 | .530 | .690 | .685 | .035 |
