HHSFO -BR SERIES
HHSFO-BR SERIES

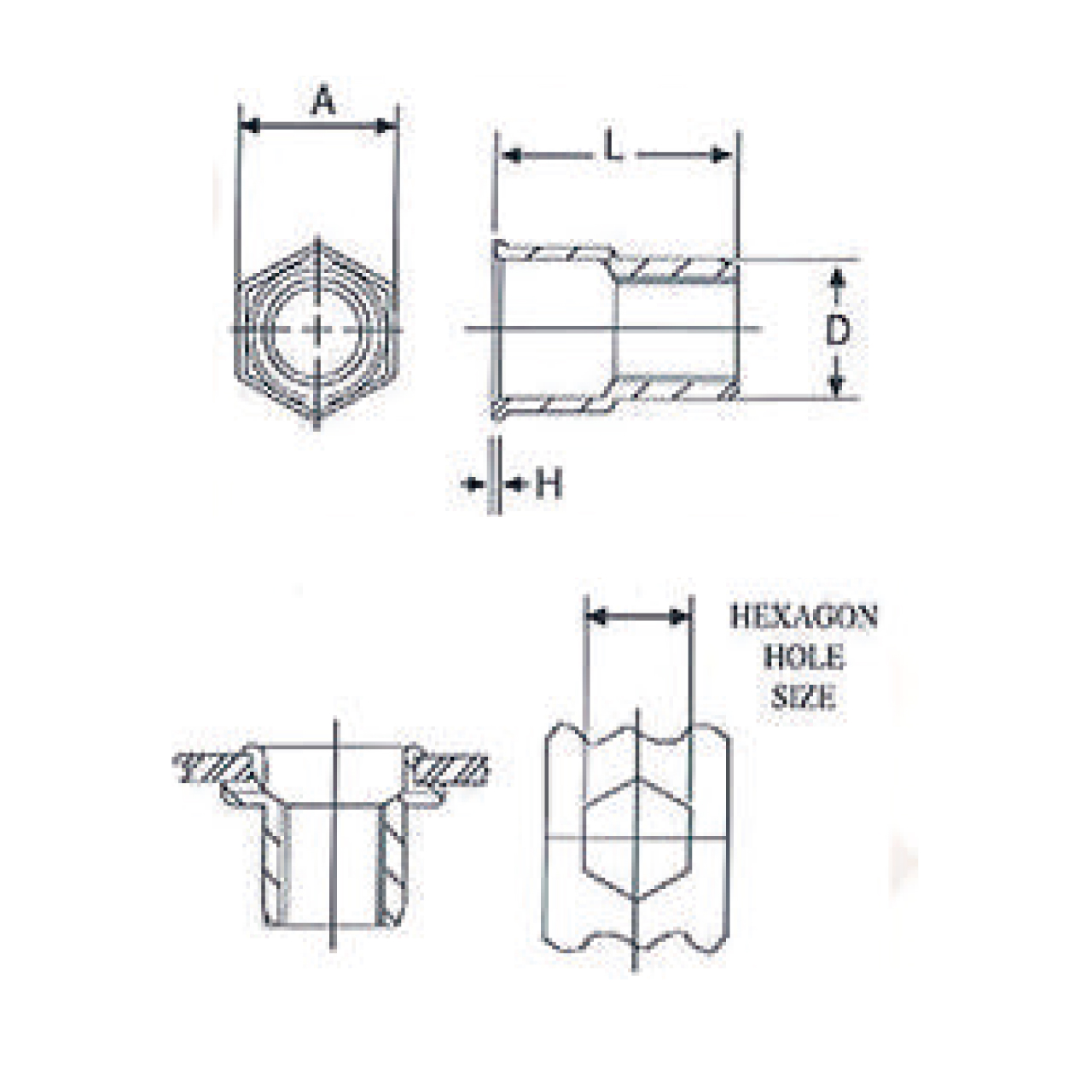

BRASS BLIND RIVET NUT
HALF-HEXAGON WITH SMALL FLANGE
HEX FLANGE, HEX INTERNAL HOLE, OPEN END
METRIC SIZE :MM
METRIC SIZE :INCH
BRASS BLIND RIVET NUT
HALF-HEXAGON WITH SMALL FLANGE
HEX FLANGE, HEX INTERNAL HOLE, OPEN END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | D-0.1 | L±0.4 | A±0.3 | H+0.15/-0.05 |
| HHSFO-BR4 | M4x0.7 | 0.5-2.0 | 6.45 | 6.35 | 10.4 | 7.0 | 0.4 |
| HHSFO-BR5 | M5x0.8 | 0.5-3.0 | 7.20 | 7.10 | 11.8 | 8.0 | 0.6 |
| HHSFO-BR6 | M6x1.0 | 0.5-3.0 | 9.60 | 9.50 | 14.6 | 10.6 | 0.6 |
| HHSFO-BR8 | M8x1.25 | 0.5-3.5 | 10.60 | 10.50 | 16.0 | 11.5 | 0.6 |
| HHSFO-BR10 | M10x1.5 | 0.7-3.8 | 12.70 | 12.60 | 18.5 | 14.0 | 0.6 |
METRIC SIZE :INCH
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.04 | D-0.004 | L±0.015 | A±0.012 | H+0.006/-0.002 |
| FHSFO-BR832 | UNC 8-32 | .020-0.079 | .254 | .250 | .409 | .376 | .0160 |
| FHSFO-BR1024 | UNC 10-24 | .020-0.118 | .280 | .279 | .465 | .315 | .0240 |
| FHSFO-BR420 | UNC 1/4-20 | .020-0.118 | .378 | .374 | .575 | .417 | .0240 |
| FHSFO-BR518 | UNC 5/16-18 | .020-0.138 | .417 | .413 | .630 | .453 | .0240 |
| FHSFO-BR616 | UNC 3/8-16 | .028-0.150 | .500 | .496 | .728 | .551 | .0240 |
