FHBFO-BR SERIES
FHBFO-BR SERIES
BRASS BLIND RIVET NUT

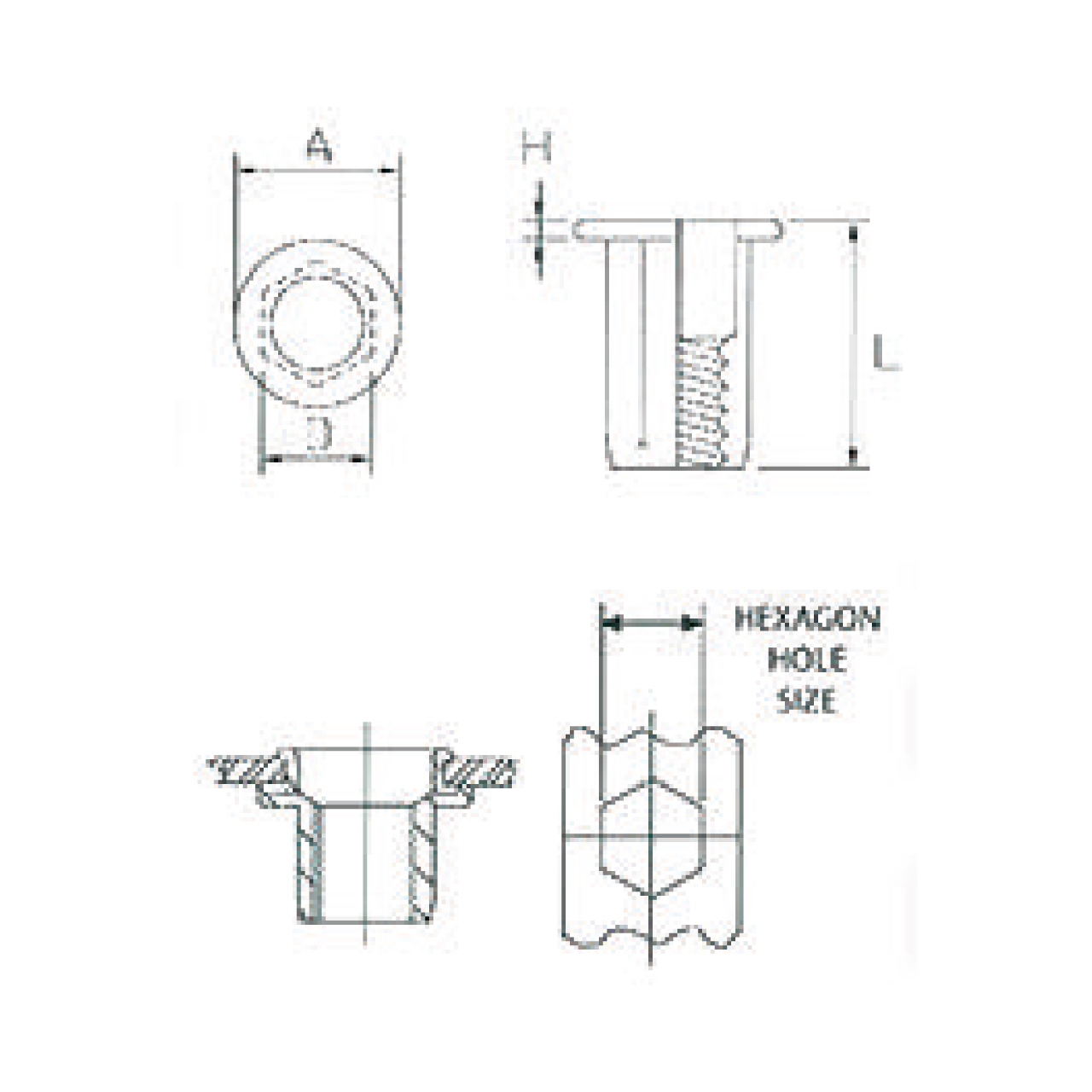

FULL-HEXAGON WITH BIG FLANGE FLAT HEAD, ROUND INTERNAL HOLE, OPEN END
METRIC SIZE :MM
BRASS BLIND RIVET NUT
FULL-HEXAGON WITH BIG FLANGE FLAT HEAD, ROUND INTERNAL HOLE, OPEN END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE±0.1 | D±0.1 | L±0.4 | A±0.3 | H±0.15/-0.05 |
| FHBFO-BR4 | M4x0.7 | 0.5-2.5 | 6.1 | 5.9 | 10.7 | 9.0 | 0.9 |
| FHBFO-BR5 | M5x0.8 | 0.5-3.0 | 7.1 | 6.9 | 13.7 | 10.0 | 0.9 |
| FHBFO-BR6 | M6x1.0 | 0.5-3.3 | 9.1 | 8.9 | 16.0 | 13.0 | 1.5 |
| FHBFO-BR8 | M8x1.25 | 0.5-3.3 | 11.1 | 10.9 | 18.0 | 16.0 | 1.5 |
| FHSBO-BR10 | M10x1.5 | 0.5-3.5 | 13.1 | 12.9 | 21.0 | 19.0 | 2.0 |
METRIC SIZE :INCH
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE±0.1 | D±0.1 | L±0.4 | A±0.3 | H±0.15/-0.05 |
| FHBFO-BR832 | UNC 8-32 | 0.02-0.098 | .240 | .232 | .421 | .354 | .035 |
| FHBFO-BR1024 | UNC 10-24 | 0.02-0.118 | .280 | .272 | .539 | .394 | .035 |
| FHBFO-BR420 | UNC 1/4-20 | 0.02-0.130 | .358 | .350 | .630 | .512 | .059 |
| FHBFO-BR518 | UNC 5/16-18 | 0.02-0.130 | .437 | .429 | .709 | .630 | .059 |
| FHBFO-BR616 | UNC 3/8-16 | 0.02-0.138 | .516 | .508 | .827 | .748 | .079 |
