FHSFO-BR SERIES
BRASS BLIND RIVET NUT
FULL-HEXAGON WITH SMALL FLANGE

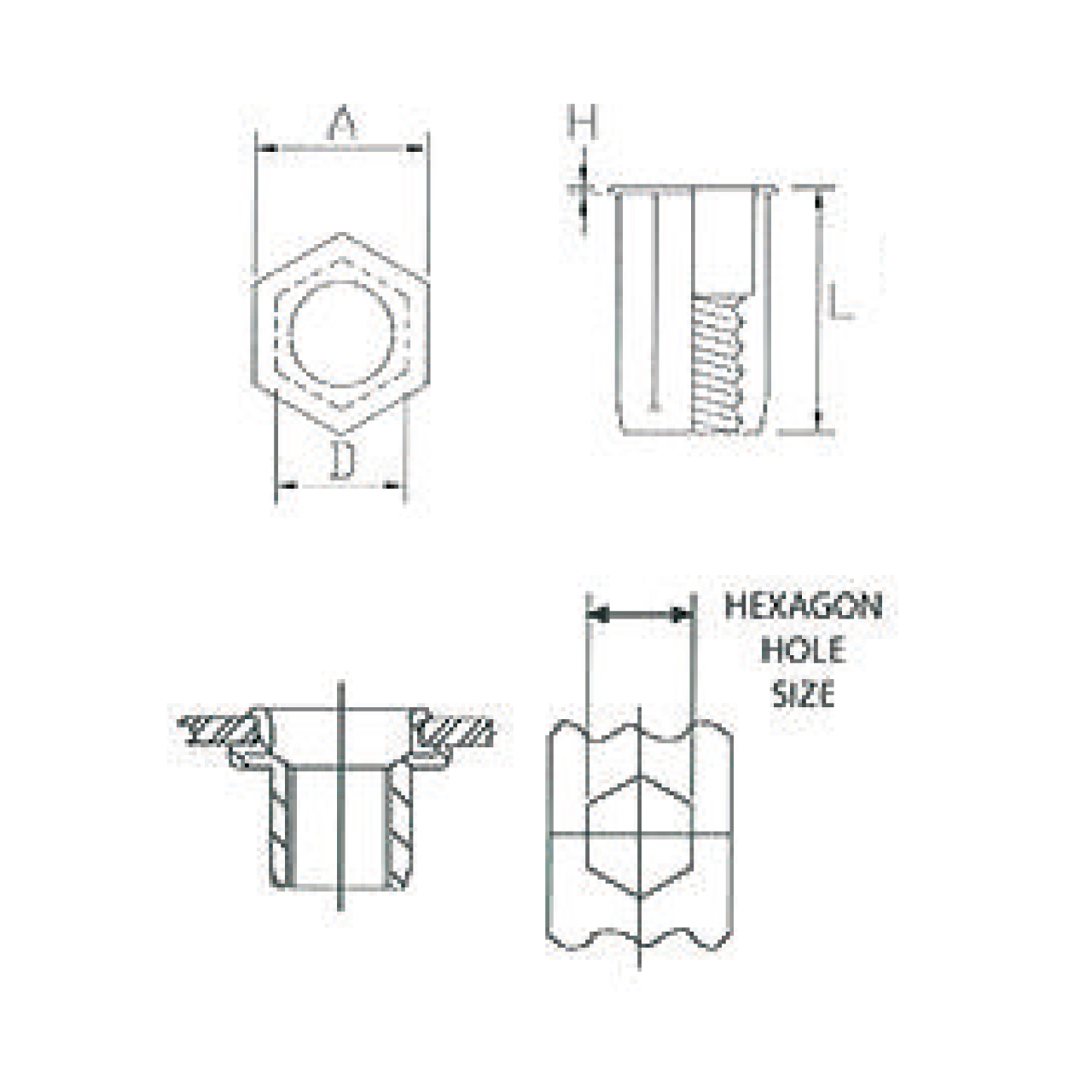

HEX FLANGE, ROUND INTERNAL HOLE, OPEN END


METRIC SIZE :MM

PART NO.	THREAD SIZE	GRIP RANGE	HOLE SIZE+0.1	D-0.1	L±0.4	A±0.3	H+0.15/-0.05
FHSFO-BR4	M4x0.7	0.5-2.5	6.1	5.9	10.2	6.9	0.5
FHSFO-BR5	M5x0.8	0.5-3.0	7.1	6.9	12.0	7.8	0.5
FHSFO-BR6	M6x1.0	0.5-3.3	9.1	8.9	15.2	10.0	0.5
FHSFO-BR8	M8x1.25	0.5-3.3	11.1	10.9	17.8	12.0	0.6
FHSFO-BR10	M10x1.5	0.5-3.5	13.1	12.9	21.0	14.6	0.8

PART NO.	THREAD SIZE	GRIP RANGE	HOLE SIZE+0.04	D-0.004	L±0.015	A±0.012	H+0.006/-0.002
FHSFO-BR832	UNC 8-32	0.02-0.098	.240	.232	.402	.272	.020
FHSFO-BR1024	UNC 10-24	0.02-0.118	.280	.272	.472	.307	.020
FHSFO-BR420	UNC 1/4-20	0.02-0.130	.358	.350	.598	.394	.020
FHSFO-BR518	UNC 5/16-18	0.02-0.130	.437	.429	.701	.472	.024
FHSFO-BR616	UNC 3/8-16	0.02-0.138	.516	.508	.827	.575	.031
