SSUH-BR SERIES
SSUH-BR SERIES
BRASS BLIND RIVET NUT
SPLINDED SERRATION UNDER HEAD
METRIC SIZE :MM
METRIC SIZE :INCH
BRASS BLIND RIVET NUT
SPLINDED SERRATION UNDER HEAD
METRIC SIZE :MM

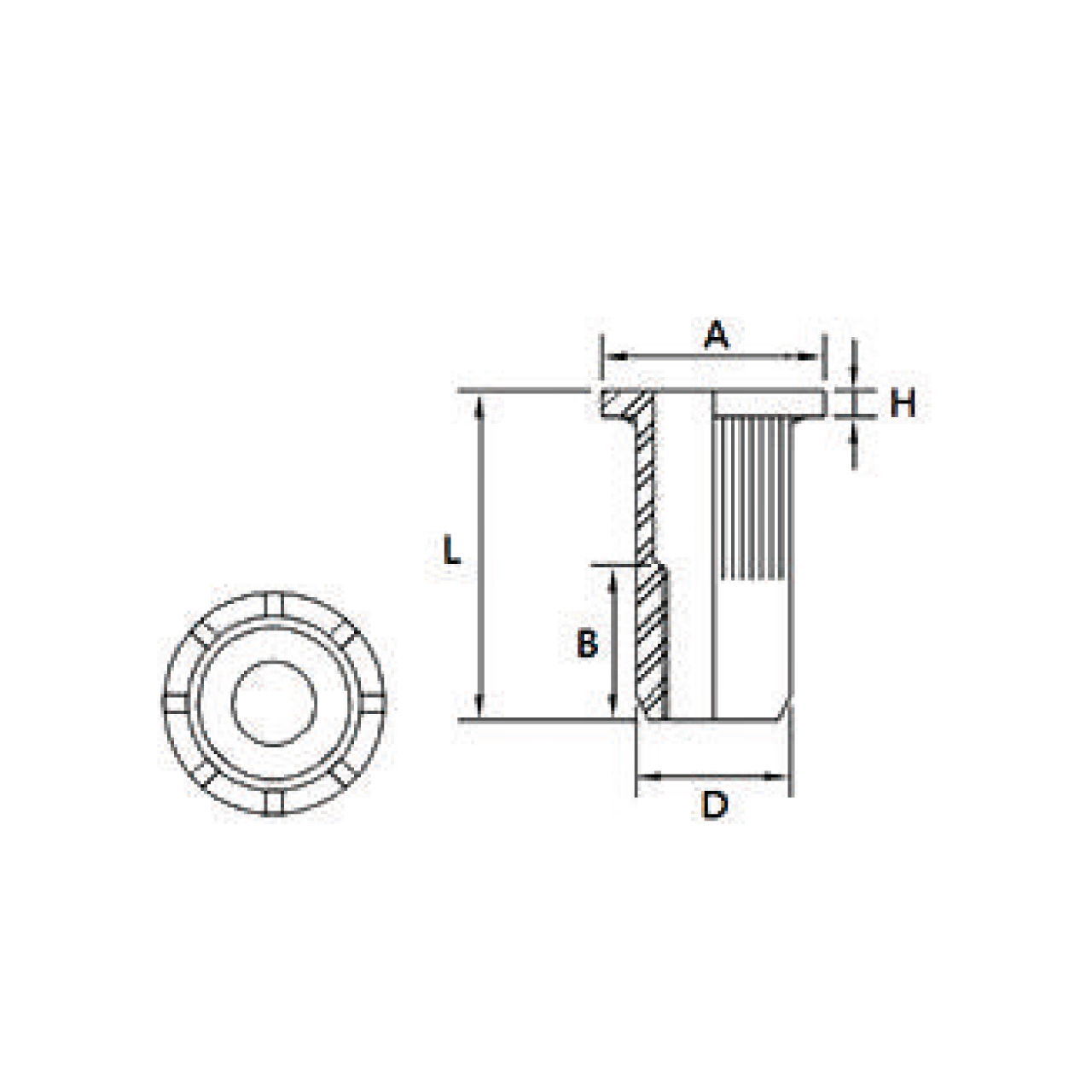

| THREAD SIZE | GRIP RANGE | D±0.15 | L±0.2 | H±0.2 | A+0.2/-0.1 | B |
| M6x1.0 | 2.4-4.5 | 8.98 | 19.20 | 1.50 | 13.00 | 7.80 |
METRIC SIZE :INCH
| THREAD SIZE | GRIP RANGE | D-0.006 | L±0.008 | H±0.008 | A+0.008/-0.004 | B |
| 1/4-20UNC | 0.165-0.260 | .390 | .580 | .500 | .512 | .030 |
