LSSUH-BR SERIES
LSSUH-BR SERIES
BRASS BLIND RIVET NUT
LARGE FLANGE SPLINDED SERRATION UNDER HEAD
METRIC SIZE :MM
METRIC SIZE :INCH
BRASS BLIND RIVET NUT
LARGE FLANGE SPLINDED SERRATION UNDER HEAD
METRIC SIZE :MM

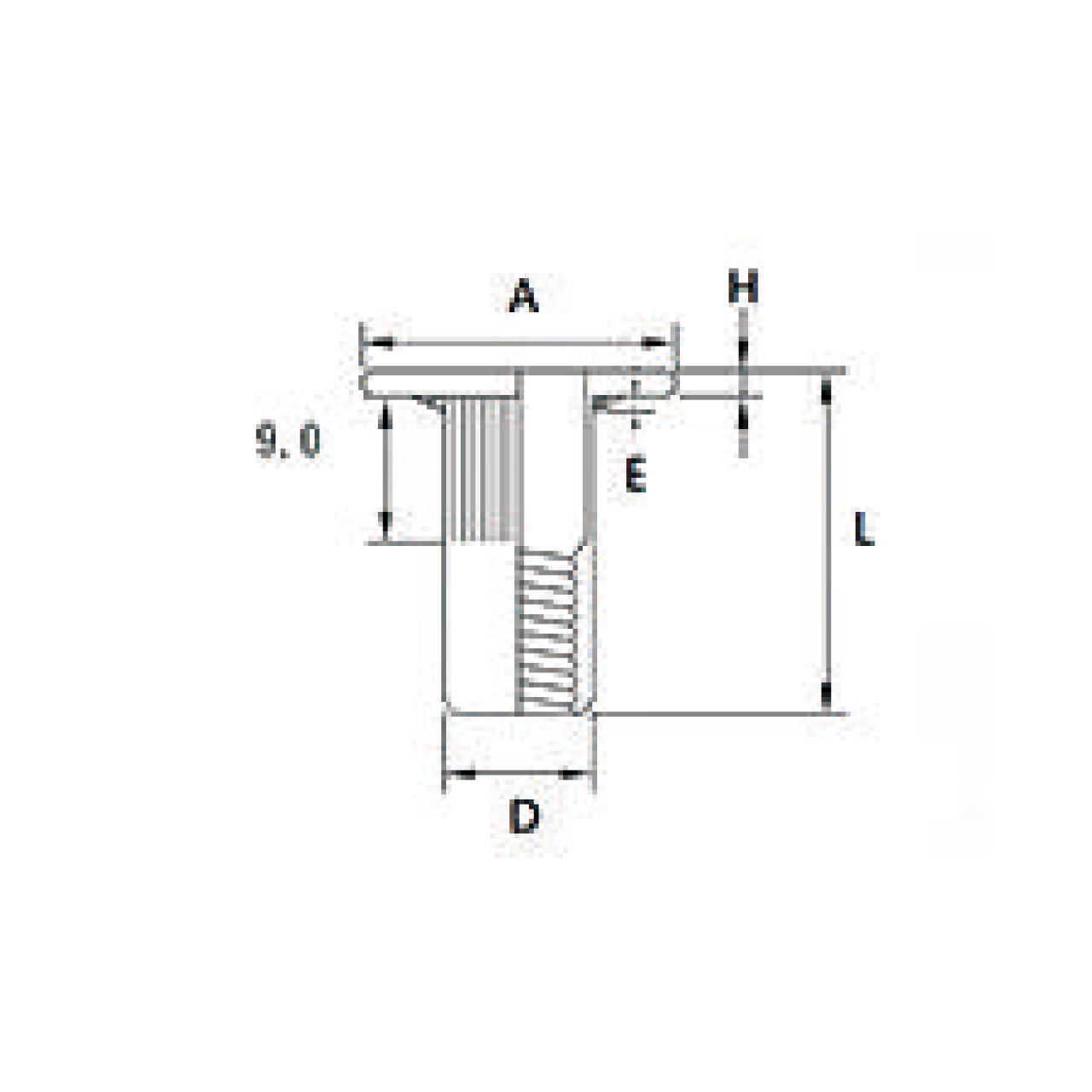

| THREAD SIZE | GRIP RANGE | D±0.1 | L±0.4 | A±0.3 | H±0.15 | E±0.2 |
| M6x1.0 | 3.5-5.0 | 9.5 | 22.0 | 20.0 | 1.6 | 0.7 |
METRIC SIZE :INCH
| THREAD SIZE | GRIP RANGE | D-0.004 | L±0.012 | A-0.02 | H±0.004 | E±0.008 |
| M6x1.0 | 0.137-0.196 | .374 | .866 | .787 | .062 | .027 |
