FK-BR2 SERIES
FK-BR2 SERIES
BRASS BLIND RIVET NUT
LARGE FLANGE, OPEN END
METRIC SIZE :MM
METRIC SIZE :INCH
BRASS BLIND RIVET NUT
LARGE FLANGE, OPEN END
METRIC SIZE :MM

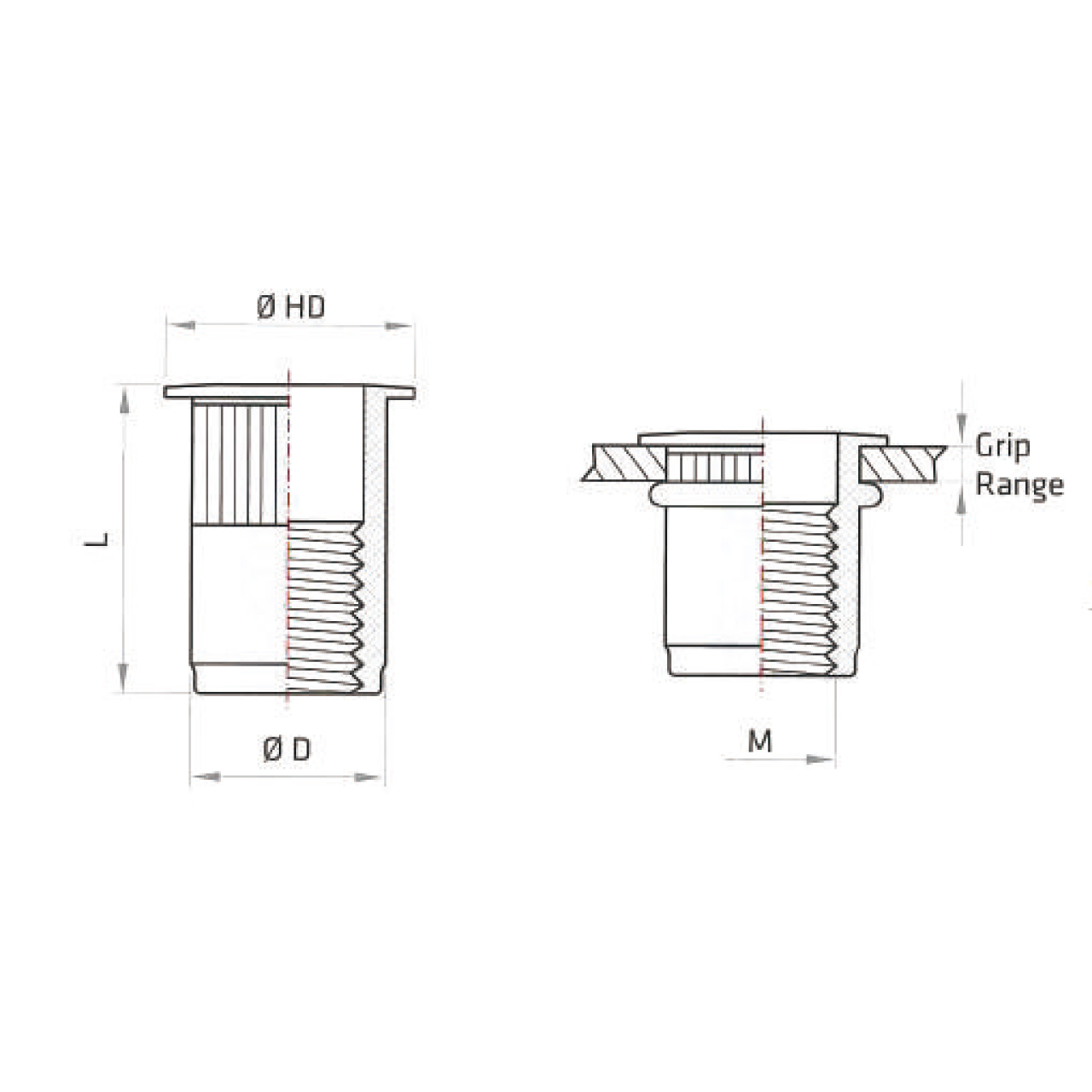

| PART NO. | THREAD SIZE | GRIP RANGE | D±0.1 | HD±0.5 | L±0.5 |
| FK-BR24L | M4x0.7 | 2.0-3.3 | 6.75 | 9.91 | 12.70 |
| FK-BR25L | M5x0.8 | 3.3-5.7 | 7.60 | 10.54 | 15.62 |
| FK-BR26L | M6x1.0 | 4.2-6.6 | 10.00 | 12.70 | 18.03 |
| FK-BR28L | M8x1.25 | 3.8-7.9 | 13.50 | 17.40 | 21.34 |
| FK-BR210L | M10x1.5 | 3.8-7.9 | 13.50 | 17.40 | 21.34 |
METRIC SIZE :INCH
| PART NO. | THREAD SIZE | GRIP RANGE | D±0.1 | HD±0.5 | L±0.5 |
| FK-BR832L | 8-32UNCL | .080-.130 | 0.2656 | 0.390 | 0.500 |
| FK-BR1024L | 10-24UNCL | .130-.225 | 0.2969 | 0.415 | 0.615 |
| FK-BR1032L | 1032UNCL | .130-.225 | 0.2969 | 0.415 | 0.615 |
| FK-BR1/4L | 1/4-20UNCL | .165-.260 | 0.3906 | 0.500 | 0.710 |
| FK-BR5/16L | 5/16-18UNCL | .150-.312 | 0.5312 | 0.685 | 0.840 |
| FK-BR3/8L | 3/8-16UNCL | .150-.312 | 0.5312 | 0.685 | 0.840 |
