FK-BR SERIES
BRASS BLIND RIVET NUT
LARGE FLANGE, OPEN END

METRIC SIZE :MM

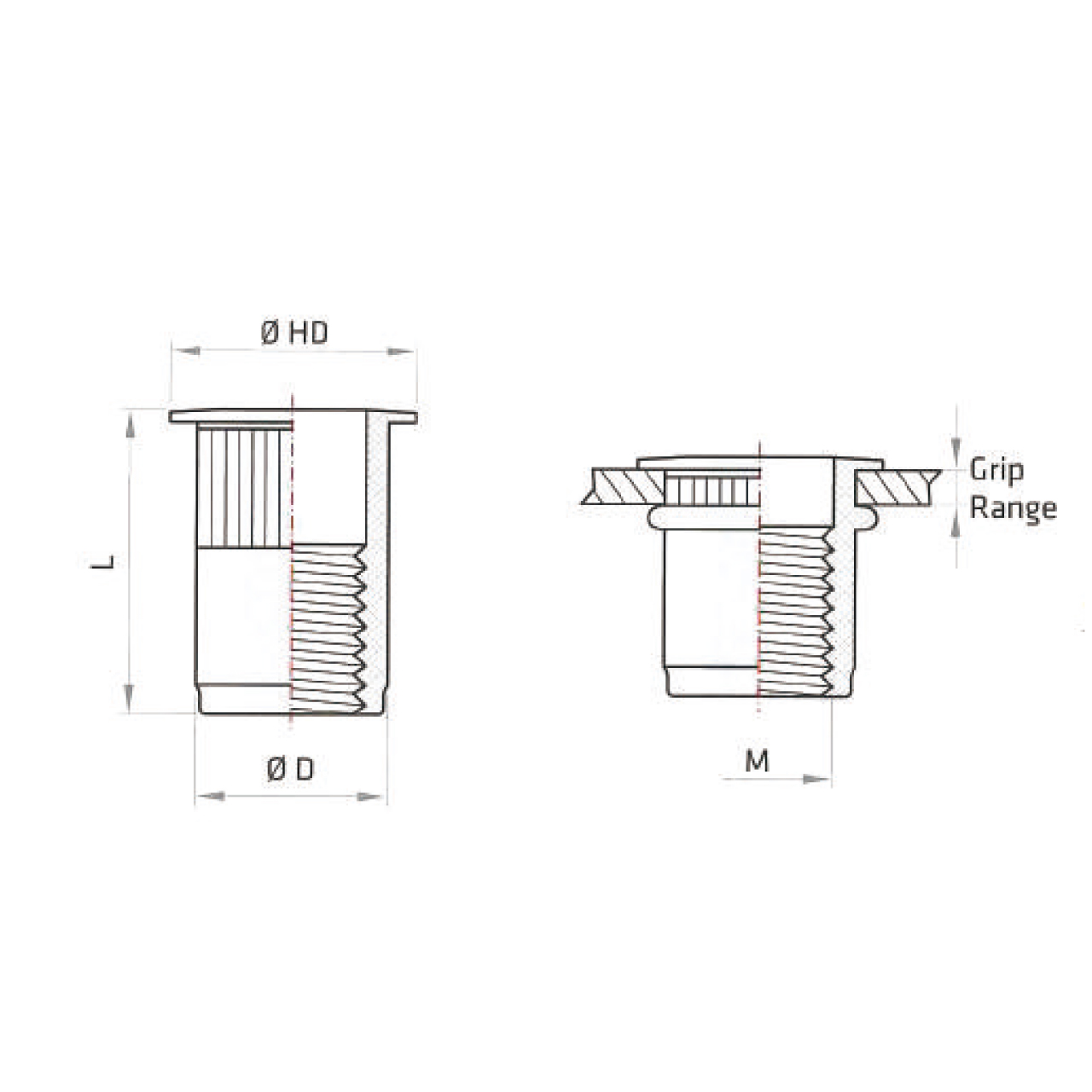

PART NO.	THREAD SIZE	GRIP RANGE	D±0.1	HD±0.5	L±0.5
FK-BR4	M4x0.7	0.5-2.0	6.75	7.87	11.15
FK-BR4L	M4x0.7	2.0-3.3	6.75	7.87	12.42
FK-BR5	M5x0.8	0.5-3.3	7.60	8.64	12.55
FK-BR5L	M5x0.8	3.3-5.7	7.60	8.64	15.34
FK-BR6	M6x1.0	0.7-4.2	10.00	11.56	15.28
FK-BR6L	M6x1.0	4.2-6.6	10.00	11.56	17.82
FK-BR8	M8x1.25	0.7-3.8	13.50	15.11	18.08
FK-BR8L	M8x1.25	3.8-7.9	13.50	15.11	21.00
FK-BR10	M10x1.5	0.7-3.8	13.50	15.11	18.08
FK-BR10L	M10x1.5	3.8-7.9	13.50	15.11	21.00

METRIC SIZE :INCH

PART NO.	THREAD SIZE	GRIP RANGE	D±0.006	HD±0.010	L
FK-BR832	8-32UNC	.020-.080	0.2656	0.310	0.439
FK-BR832L	8-32UNCL	.080-.130	0.2656	0.310	0.489
FK-BR1024	10-24UNC	.020-.130	0.2969	0.340	0.494
FK-BR1024L	10-24UNCL	.130-.225	0.2969	0.340	0.604
FK-BR1032	10-32UNF	.020-.130	0.2969	0.340	0.494
FK-BR1032L	10-32UNFL	.130-.225	0.2969	0.340	0.604
FK-BR1/4	1/4-20UNC	.027-.165	0.3906	0.455	0.602
FK-BR1/4L	1/4-20UNCL	.165-.260	0.3906	0.455	0.702
FK-BR5/16	5/16-18UNC	.027-.150	0.5312	0.595	0.712
FK-BR5/16L	5/16-18UNCL	.150-.312	0.5312	0.595	0.827
FK-BR3/8	3/8-16UNC	.027-.150	0.5312	0.595	0.712
FK-BR3/8L	3/8-16UNCL	.150-.312	0.5312	0.595	0.827
