ALUMINUM BLIND RIVET NUT FLAT HEAD, ROUND SHANK BODY, OPEN END
METRIC SIZE :MM
METRIC SIZE :INCH

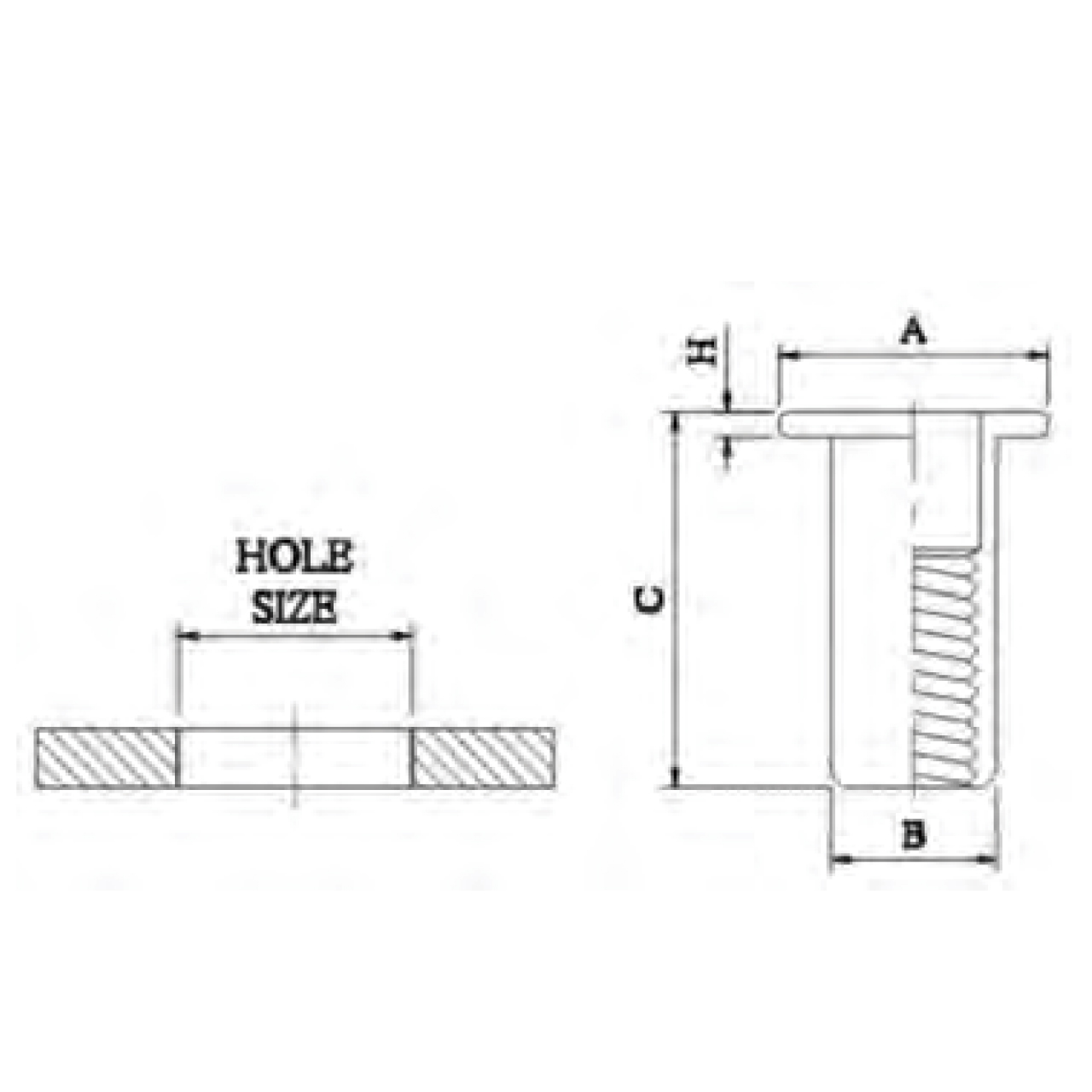

ALUMINUM BLIND RIVET NUT FLAT HEAD, ROUND SHANK BODY, OPEN END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.15 | A±0.3 | B max | C±0.38 | H±0.13 |
| F-A520 | M5x0.8 | 0.25-2.0 | 6.75 | 10.00 | 6.30 | 14.00 | 1.00 |
| F-A620 | M6x1.0 | 0.5-2.0 | 8.43 | 13.40 | 8.43 | 17.40 | 1.50 |
| F-A650 | M6x1.0 | 3.5-5.0 | 8.43 | 13.40 | 8.43 | 20.00 | 1.50 |
| F-A1030 | M10x1.5 | 1.0-3.0 | 13.50 | 19.50 | 12.44 | 22.20 | 2.23 |
METRIC SIZE :INCH
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+.006 | A±.012 | B max | C±.015 | H±.005 |
| F-A632x75 | 6-32 | .010-.075 | .189 | .325 | .189 | .470 | .032 |
| F-A632x120 | 6-32 | .075-.120 | .189 | .325 | .187 | .532 | .032 |
| F-A832x75 | 8-32 | .010-.075 | .221 | .357 | .221 | .470 | .032 |
| F-A832x120 | 8-32 | .075-.120 | .221 | .357 | .221 | .532 | .032 |
| F-A1032x80 | 10-32UNF | .010-.080 | .250 | .406 | .250 | .569 | .038 |
| F-A1032x130 | 10-32UNF | .080-.130 | .250 | .406 | .250 | .632 | .038 |
| F-A1/4-80 | 1/4-20 | .020-.080 | .332 | .475 | .332 | .683 | .058 |
| F-A1/4-140 | 1/4-20 | .080-.140 | .332 | .475 | .332 | .745 | .058 |
| F-A1/4-200 | 1/4-200 | .140-.200 | .332 | .475 | .332 | .808 | .058 |
| F-A5/16-125 | 5/16-18 | .030-.125 | .413 | .665 | .413 | .812 | .062 |
| F-A5/16-200 | 5/16-18 | .125-.200 | .413 | .665 | .413 | .937 | .062 |
| F-A3/8-115 | 3/8-16 | .030-.115 | .490 | .781 | .490 | .932 | .088 |
| F-A3/8-200 | 3/8-16 | .115-.200 | .490 | .781 | .490 | 1.026 | .088 |
| F-A1/2-150 | 1/2-13 | .020-.150 | .625 | .906 | .625 | .991 | .085 |
