KK-A SERIES
KK-A SERIES
ALUMINUM BLIND RIVET NUT FLAT HEAD, ROUND SHANK WITH KNURLED BODY, OPEN END
METRIC SIZE :MM
ALUMINUM BLIND RIVET NUT FLAT HEAD, ROUND SHANK WITH KNURLED BODY, OPEN END
METRIC SIZE :MM

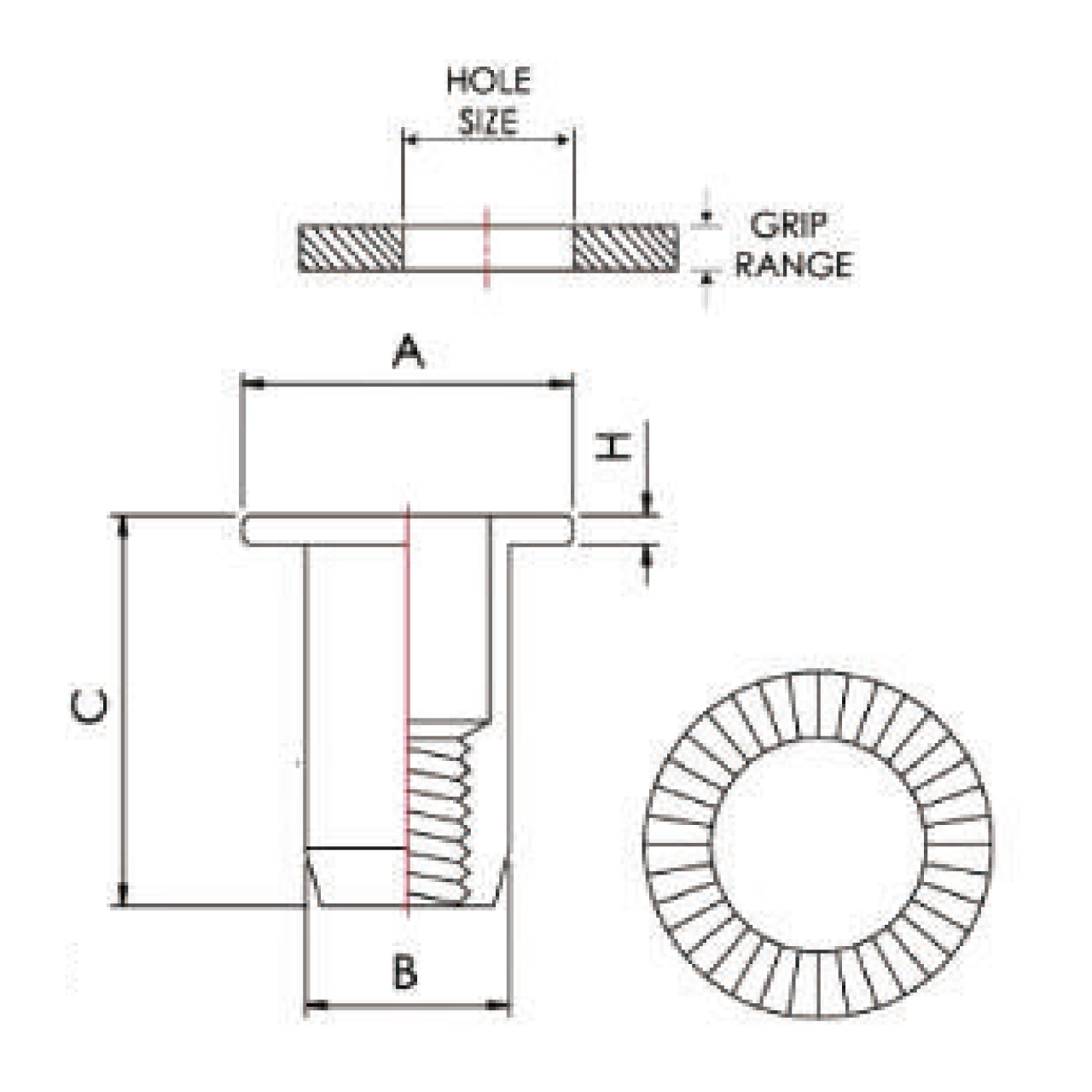

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| KK-A3 | M3x0.5 | 0.5-2.0 | 5 | 8.00 | 4.97 | 9.50 | 0.70 |
| KK-A4 | M4x0.7 | 0.5-2.5 | 6 | 9.00 | 5.97 | 11.20 | 0.80 |
| KK-A5 | M5x0.8 | 0.5-3.0 | 7 | 10.00 | 6.97 | 12.80 | 1.00 |
| KK-A6 | M6x1.0 | 0.7-3.0 | 9 | 13.00 | 8.97 | 16.00 | 1.50 |
| KK-A8 | M8x1.25 | 0.7-3.0 | 11 | 15.00 | 10.97 | 18.00 | 1.50 |
| KK-A10 | M10x1.5 | 1.0-3.5 | 13 | 17.00 | 12.97 | 20.00 | 1.50 |
