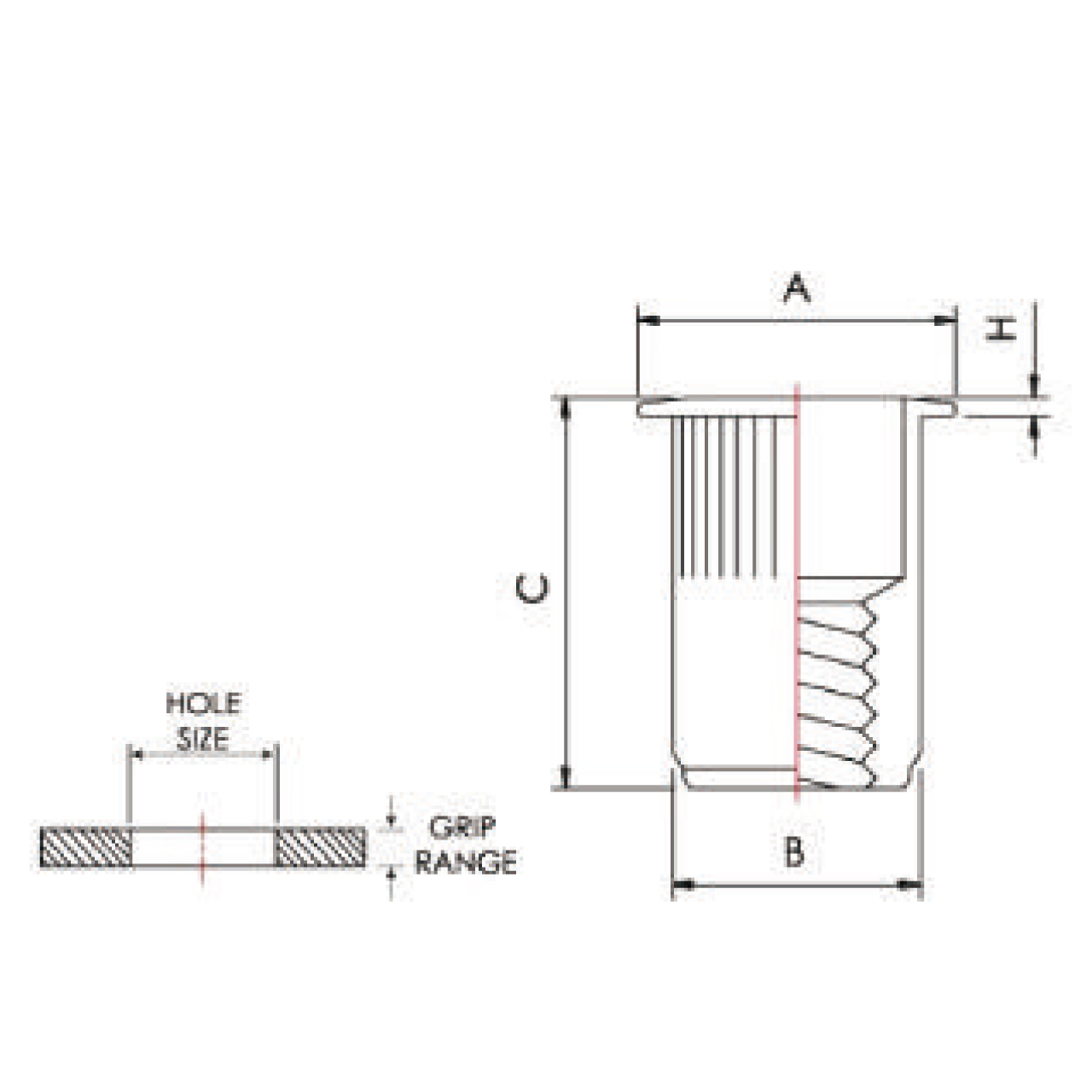

ALUMINUM BLIND RIVET NUT FLAT HEAD, ROUND SHANK WITH KNURLED BODY, OPEN END
METRIC SIZE :MM
ALUMINUM BLIND RIVET NUT FLAT HEAD, ROUND SHANK WITH KNURLED BODY, OPEN END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+.006 | A±.012 | B max | C±.015 | H±.005 |
| DN-A632x8 | 6-32 | .020-.080 | .2656 | .390 | .265 | .450 | .030 |
| DN-A632x130 | 6-32 | .080-.130 | .2656 | .390 | .265 | .500 | .030 |
| DN-A832x80 | 8-32 | .020-.080 | .2656 | .390 | .265 | .450 | .030 |
| DN-A832x130 | 8-32 | .080-.130 | .2656 | .390 | .265 | .500 | .030 |
| DN-A1024x130 | 10-24 | .020-.130 | .2969 | .415 | .296 | .505 | .030 |
| DN-A1024x225 | 10-24 | .130-.225 | .2969 | .415 | .296 | .615 | .030 |
| DN-A1032x130 | 10-32UNF | .020-.130 | .2969 | .415 | .296 | .505 | .030 |
| DN-A1032x225 | 10-32UNF | .130-.225 | .2969 | .415 | .296 | .615 | .030 |
| DN-A1/4x165 | 1/4-20 | .027-.165 | .3906 | .500 | .390 | .610 | .030 |
| DN-A1/4x260 | 1/4-20 | .165-.260 | .3906 | .500 | .390 | .710 | .030 |
| DN-A5/16x150 | 5/6-18 | .027-.150 | .5312 | .685 | .530 | .725 | .035 |
| DN-A5/16x312 | 5/6-18 | .150-.312 | .5312 | .685 | .530 | .840 | .035 |
| DN-A3/8x150 | 3/8-16 | .027-.150 | .5312 | .685 | .530 | .725 | .035 |
| DN-A3/8x312 | 3/8-16 | .150-.312 | .5312 | .685 | .530 | .840 | .035 |
| DN-A1/2x200 | 1/2-13 | .063-.200 | .6875 | .865 | .685 | 1.197 | 0.47 |
| DN-A1/2x350 | 1/2-13 | .200-.350 | .6875 | .865 | .685 | 1.347 | 0.47 |
| DN-A1/2x500 | 1/2-13 | .350-.500 | .6875 | .865 | .685 | 1.497 | 0.47 |
