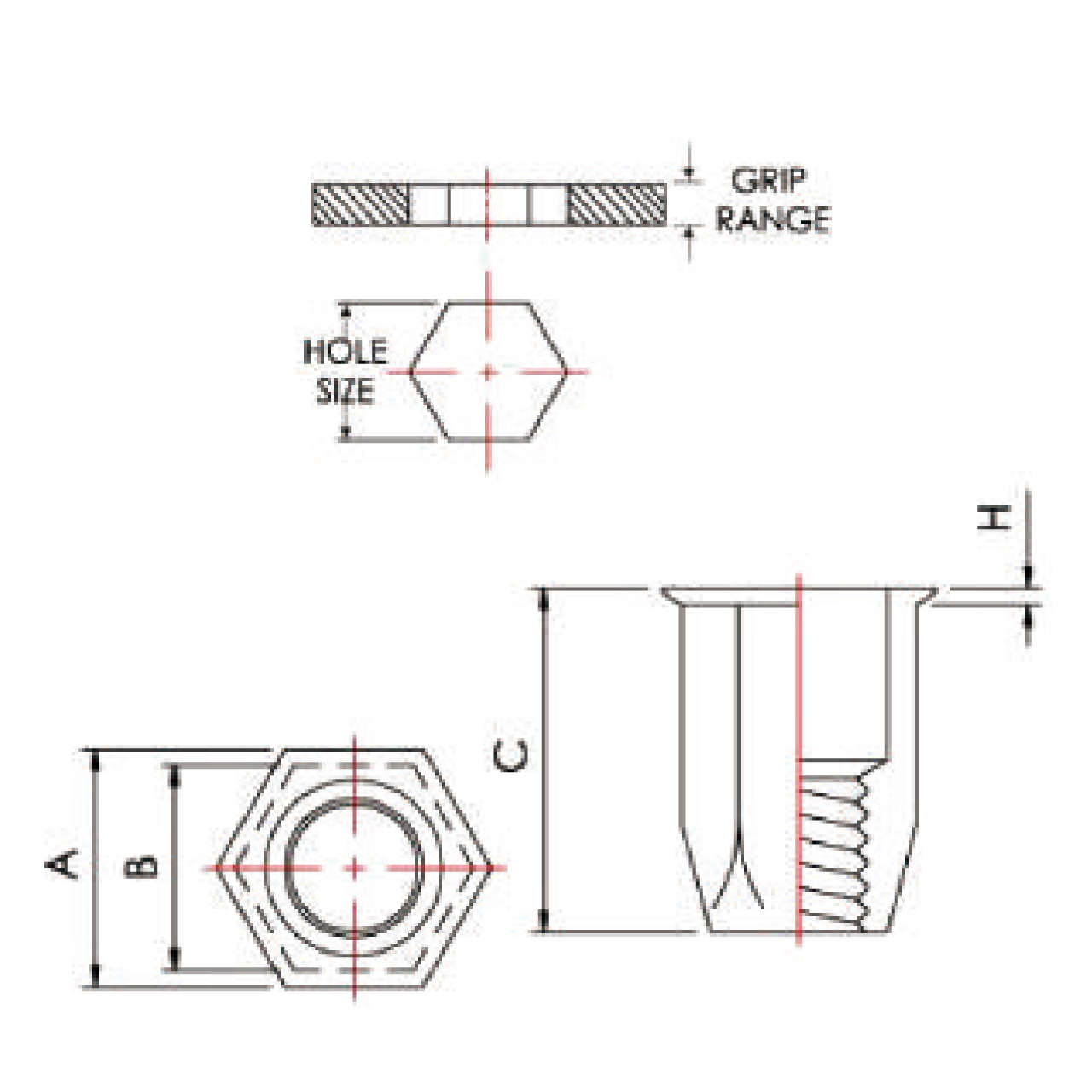

STAINLESS STEEL 302,304,316, BLIND RIVET NUT, REDUCED HEAD, FULL HEXAGON BODY, OPEN END
METRIC SIZE :MM
STAINLESS STEEL 302,304,316, BLIND RIVET NUT, REDUCED HEAD, FULL HEXAGON BODY, OPEN END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| RFH-S4 | M4x0.7 | 0.5-2.0 | 6 | 6.90 | 5.97 | 10.00 | 0.50 |
| RFH-S5 | M5x0.8 | 0.5-3.0 | 7 | 8.00 | 6.97 | 12.00 | 0.60 |
| RFH-S6 | M6x1.0 | 0.7-3.0 | 9 | 10.00 | 8.97 | 14.00 | 0.60 |
| RFH-S8 | M8x1.25 | 0.7-3.5 | 11 | 12.00 | 10.97 | 17.50 | 0.50 |
