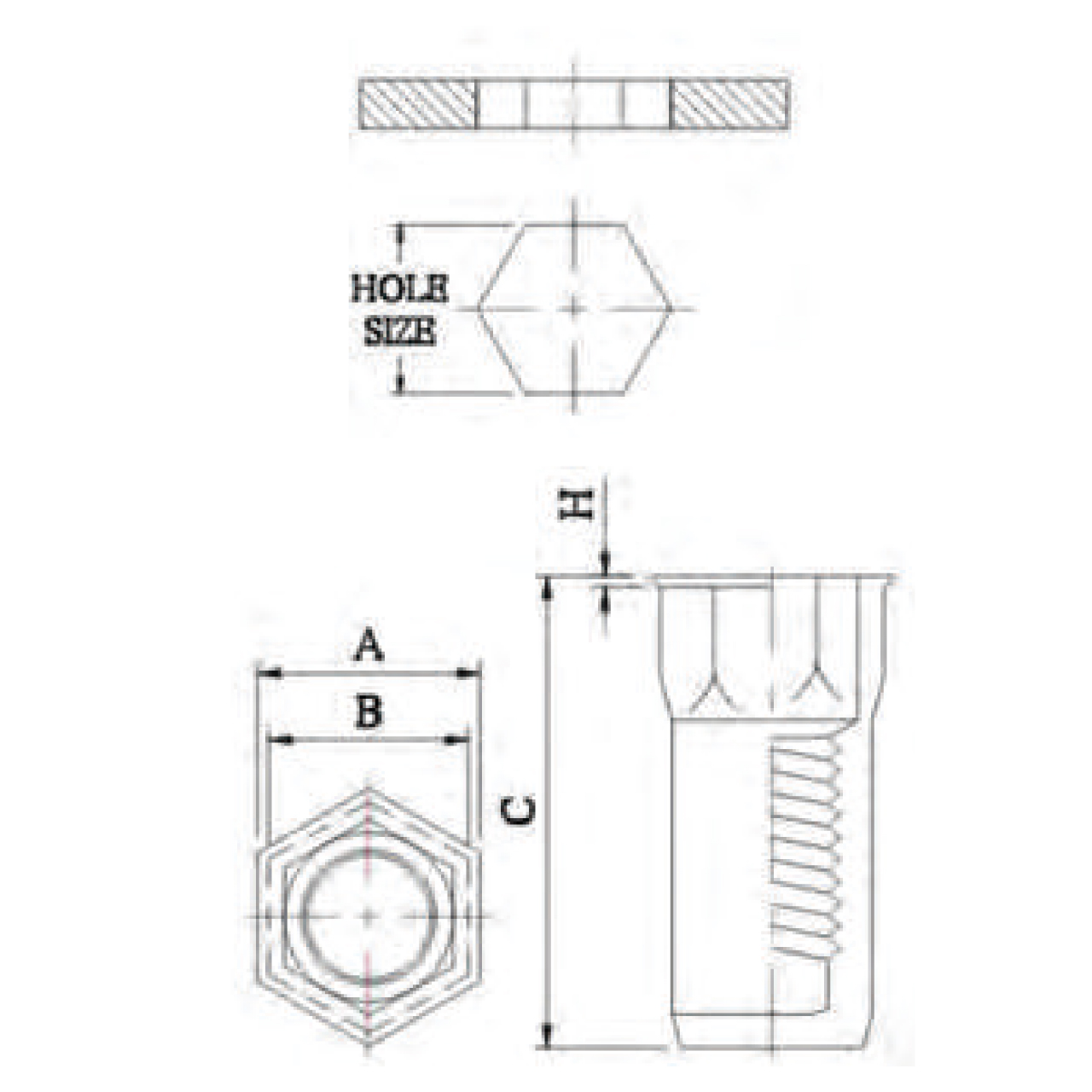

STAINLESS STEEL 302,304,316, BLIND RIVET NUT, REDUCED HEAD, SEMI-HEX BODY, CLOSED END
METRIC SIZE :MM
STAINLESS STEEL 302,304,316, BLIND RIVET NUT, REDUCED HEAD, SEMI-HEX BODY, CLOSED END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| RSH2-SCL420 | M4x0.7 | 0.5-2.0 | 6 | 6.80 | 5.97 | 16.00 | 0.50 |
| RSH2-SCL530 |
M5x0.8 |
0.5-3.0 | 7 | 8.00 | 6.97 | 18.00 | 0.60 |
| RSH2-SCL630 | M6x1.0 | 0.5-3.0 | 9 | 10.00 | 8.97 | 21.00 | 0.60 |
| RSH2-SCL830 | M8x1.25 | 0.5-3.0 | 11 | 12.00 | 10.97 | 23.50 | 0.60 |
| RSH2-SCL1035 | M10x1.5 | 1.0-3.5 | 13 | 14.10 | 12.97 | 28.00 | 0.80 |
| RSH2-SCL1045 | M10x1.5 | 1.0-4.5 | 13 | 14.10 | 12.97 | 29.00 | 0.80 |
| RSH2-SCL1060 | M10x1.5 | 4.5-6.0 | 13 | 14.10 | 12.97 | 31.00 | 0.80 |
