RSH2-S SERIES
RSH2-S SERIES
STAINLESS STEEL 302,304,316, BLIND RIVET NUT, REDUCED HEAD, SEMI-HEX BODY, OPEN END
METRIC SIZE :MM
STAINLESS STEEL 302,304,316, BLIND RIVET NUT, REDUCED HEAD, SEMI-HEX BODY, OPEN END
METRIC SIZE :MM

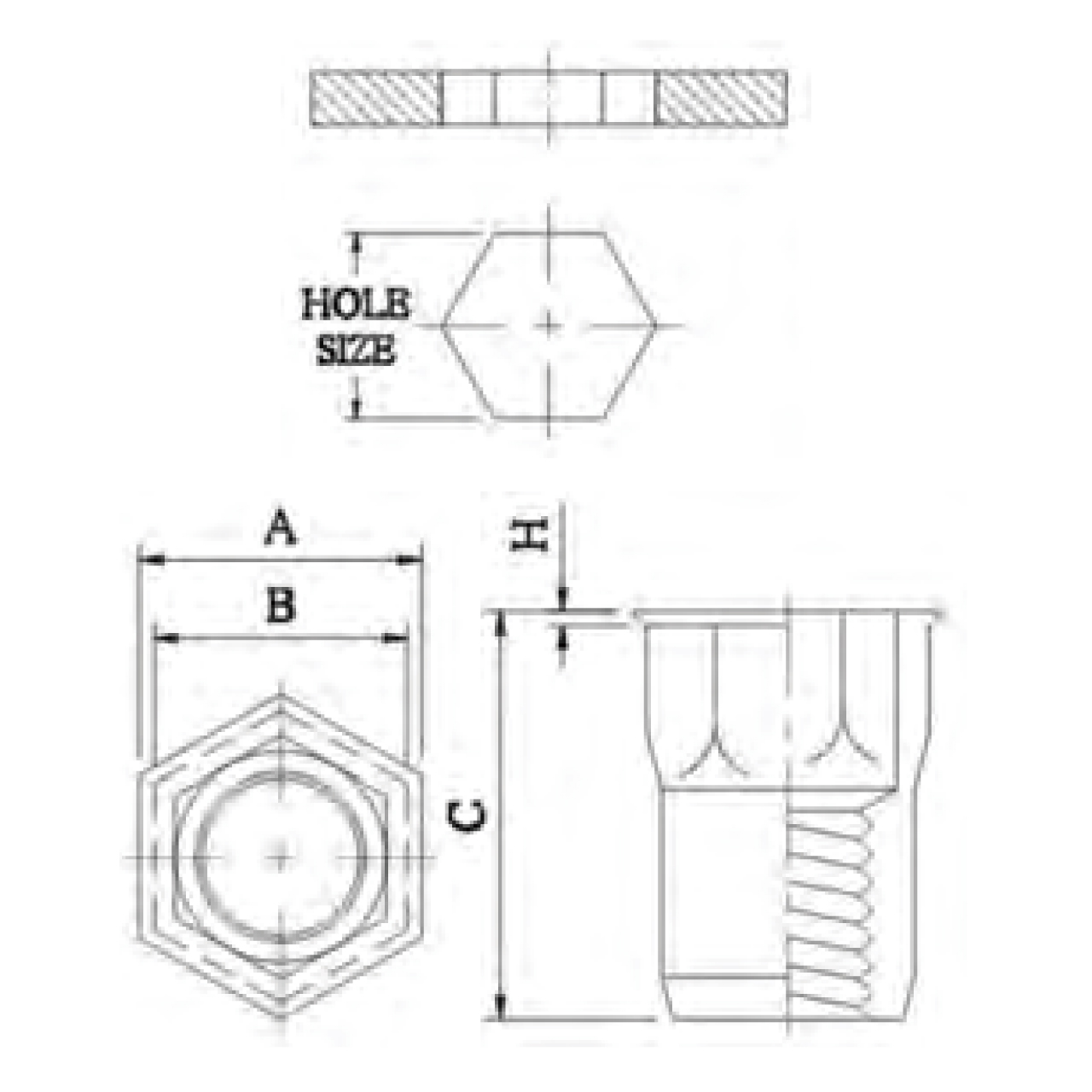

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| RSH2-S315 | M3x0.5 | 0.3-1.5 | 5 | 5.80 | 4.97 | 8.50 | 0.40 |
| RSH2-S420 | M4x0.7 | 0.5-2.0 | 6 | 6.80 | 5.97 | 11.00 | 0.50 |
| RSH2-S530 | M5x0.8 | 0.5-3.0 | 7 | 8.00 | 6.97 | 11.80 | 0.60 |
| RSH2-S630 | M6x1.0 | 0.5-3.0 | 9 | 10.00 | 8.97 | 14.50 | 0.60 |
| RSH2-S830 | M8x1.25 | 0.5-3.0 | 11 | 12.00 | 10.97 | 16.00 | 0.60 |
| RSH2-S850 | M8x1.25 | 3.0-5.0 | 11 | 12.00 | 10.97 | 18.00 | 0.60 |
| RSH2-S1035 | M10x1.5 | 1.0-3.5 | 13 | 14.0 | 12.97 | 19.50 | 0.80 |
