KK-SCL SERIES
KK-SCL SERIES
STAINLESS STEEL 302,304,316, BLIND RIVET NUT, FLAT HEAD, ROUND SHANK BODY, CLOSED END
METRIC SIZE :MM
STAINLESS STEEL 302,304,316, BLIND RIVET NUT, FLAT HEAD, ROUND SHANK BODY, CLOSED END
METRIC SIZE :MM

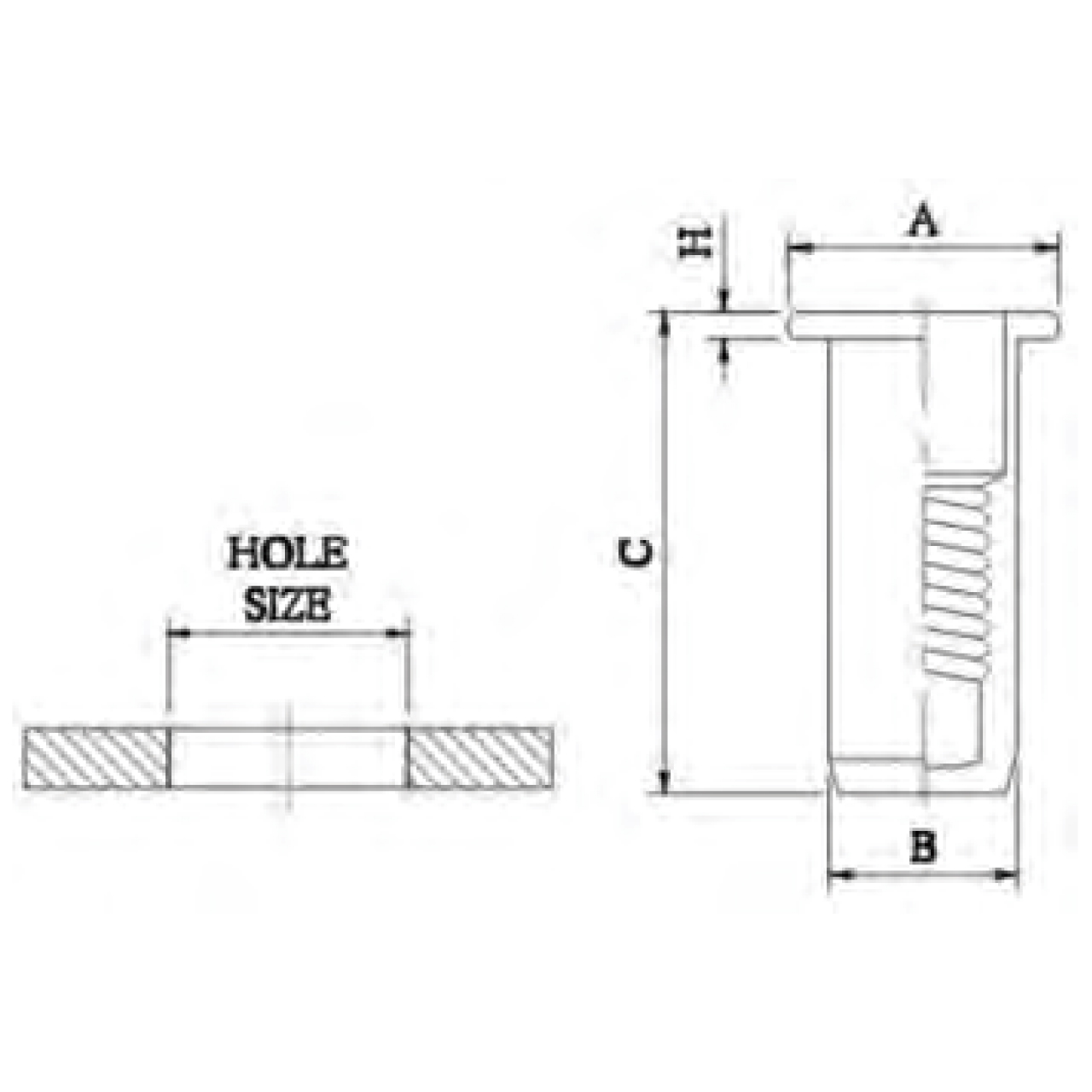

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| KK-SCL425 | M4x0.7 | 0.5-2.5 | 6 | 9.00 | 5.97 | 16.50 | 0.80 |
| KK-SCL530 | M5x0.8 | 0.5-3.0 | 7 | 10.00 | 6.97 | 19.00 | 1.00 |
| KK-SCL630 | M6x1.0 | 0.5-3.0 | 9 | 12.00 | 8.97 | 22.50 | 1.50 |
| KK-SCL835 | M8x1.25 | 0.7-3.5 | 11 | 15.00 | 10.97 | 25.00 | 1.50 |
| KK-SCL1040 | M10x1.5 | 1.0-4.0 | 13 | 17.00 | 12.97 | 30.00 | 2.00 |
