FK2-S SERIES
FK2-S SERIES
STAINLESS STEEL 302,304,316, BLIND RIVET NUT, FLAT HEAD, ROUND SHANK WITH KNURLED BODY, OPEN END
METRIC SIZE :MM
STAINLESS STEEL 302,304,316, BLIND RIVET NUT, FLAT HEAD, ROUND SHANK WITH KNURLED BODY, OPEN END
METRIC SIZE :MM

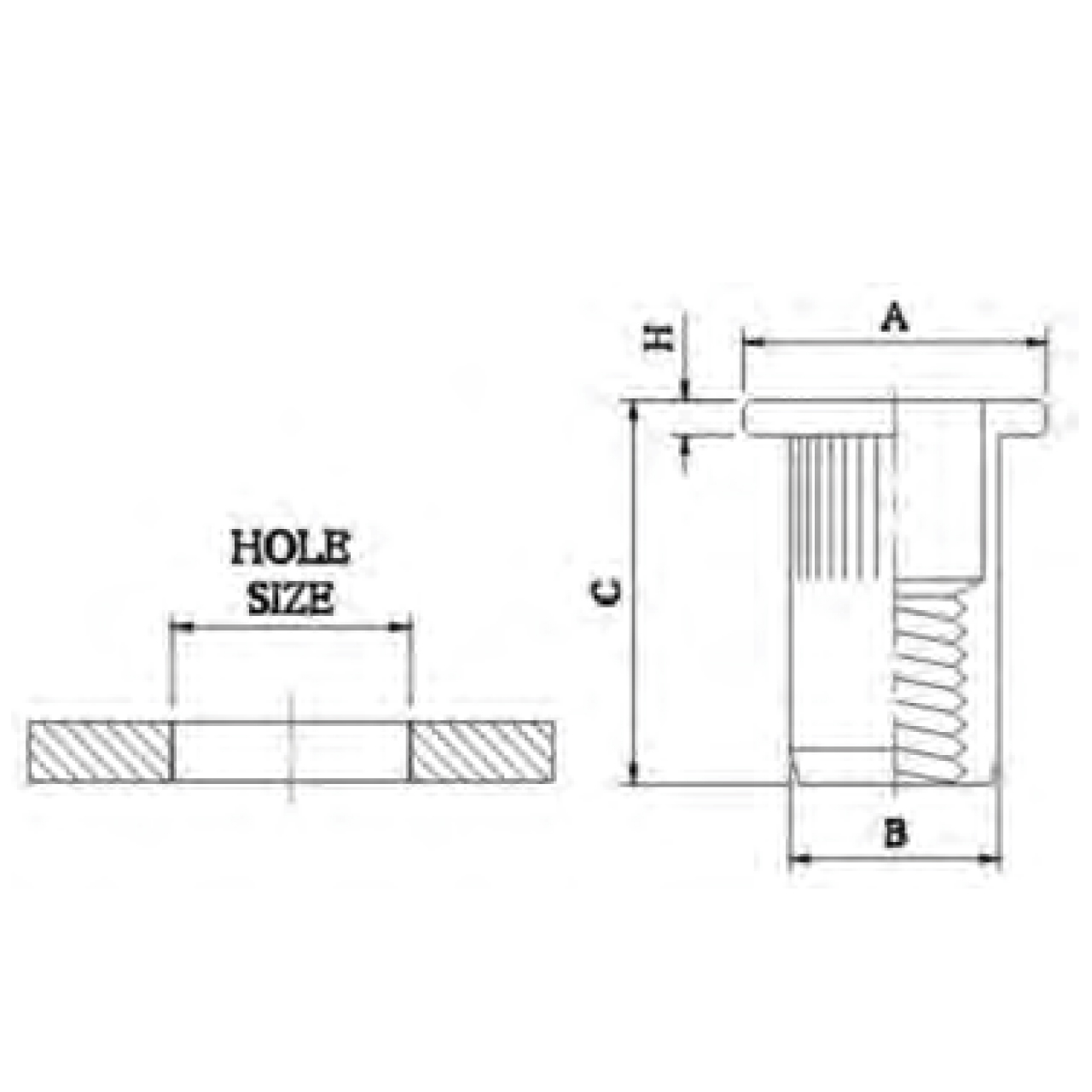

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| FK2-S320 | M3x0.5 | 0.5-2.0 | 5 | 8.00 | 4.97 | 10.00 | 0.80 |
| FK2-S420 | M4x0.5 | 0.5-2.5 | 6 | 9.00 | 5.97 | 12.00 | 1.00 |
| FK2-S530 | M5x0.8 | 0.5-2.5 | 7 | 10.00 | 6.97 | 13.00 | 1.00 |
| FK2-S535 | M5x0.8 | 1.5-3.5 | 7 | 10.0 | 6.97 | 14.00 | 1.00 |
| FK2-S630 | M6x1.0 | 0.5-3.0 | 9 | 12.00 | 8.97 | 15.50 | 1.50 |
| FK2-S635 | M6x1.0 | 1.5-3.5 | 9 | 12.00 | 8.97 | 16.00 | 1.50 |
| FK2-S830 | M8x1.25 | 0.5-3.0 | 11 | 15.00 | 10.97 | 17.50 | 1.50 |
| FK2-S835 | M8x1.25 | 1.8-5.0 | 11 | 15.00 | 10.97 | 20.00 | 1.50 |
| FK2-S1035 | M10x1.5 | 1.0-3.5 | 13 | 17.00 | 12.97 | 21.00 | 2.00 |
| FK2-S1050 | M10x1.5 | 1.8-5.0 | 13 | 17.00 | 12.97 | 25.00 | 2.00 |
