KK-S SERIES
KK-S SERIES
STAINLESS STEEL 302,304,316, BLIND RIVET NUT, FLAT HEAD, ROUND SHANK BODY, OPEN END
METRIC SIZE :MM
STAINLESS STEEL 302,304,316, BLIND RIVET NUT, FLAT HEAD, ROUND SHANK BODY, OPEN END
METRIC SIZE :MM

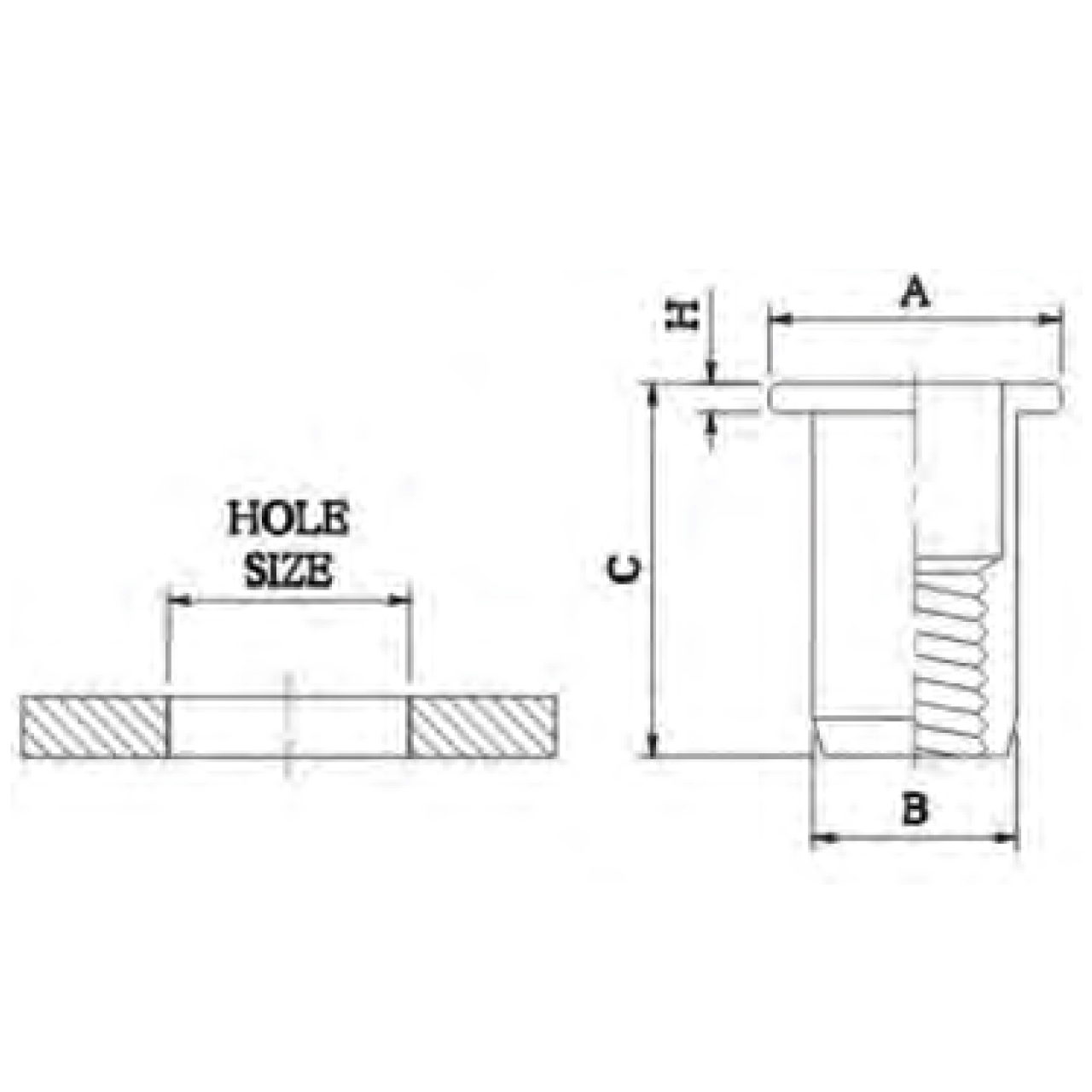

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| KK-S320 | M3x0.5 | 0.5-2.0 | 5 | 8.00 | 4.97 | 10.0 | 0.8 |
| KK-S425 | M4x0.7 | 0.5-2.5 | 6 | 9.00 | 7.00 | 12.0 | 1.0 |
| KK-S530 | M5x0.8 | 0.5-3.0 | 7 | 10.00 | 7.00 | 13.0 | 1.0 |
| KK-S630 | M6x1.0 | 0.5-3.0 | 9 | 12.00 | 8.97 | 15.5 | 1.5 |
| KK-S830 | M8x1.25 | 0.5-3.0 | 11 | 15.00 | 7.00 | 17.5 | 1.5 |
| KK/S1030 | M10x1.5 | 1.0-3.5 | 13 | 17.00 | 7.00 | 21.0 | 2.0 |
