R2-SCL SERIES
R2-SCL SERIES
STAINLESS STEEL, BLIND RIVET NUT, REDUCED HEAD, ROUND SHANK BODY, CLOSED END
METRIC SIZE :MM
STAINLESS STEEL, BLIND RIVET NUT, REDUCED HEAD, ROUND SHANK BODY, CLOSED END
METRIC SIZE :MM

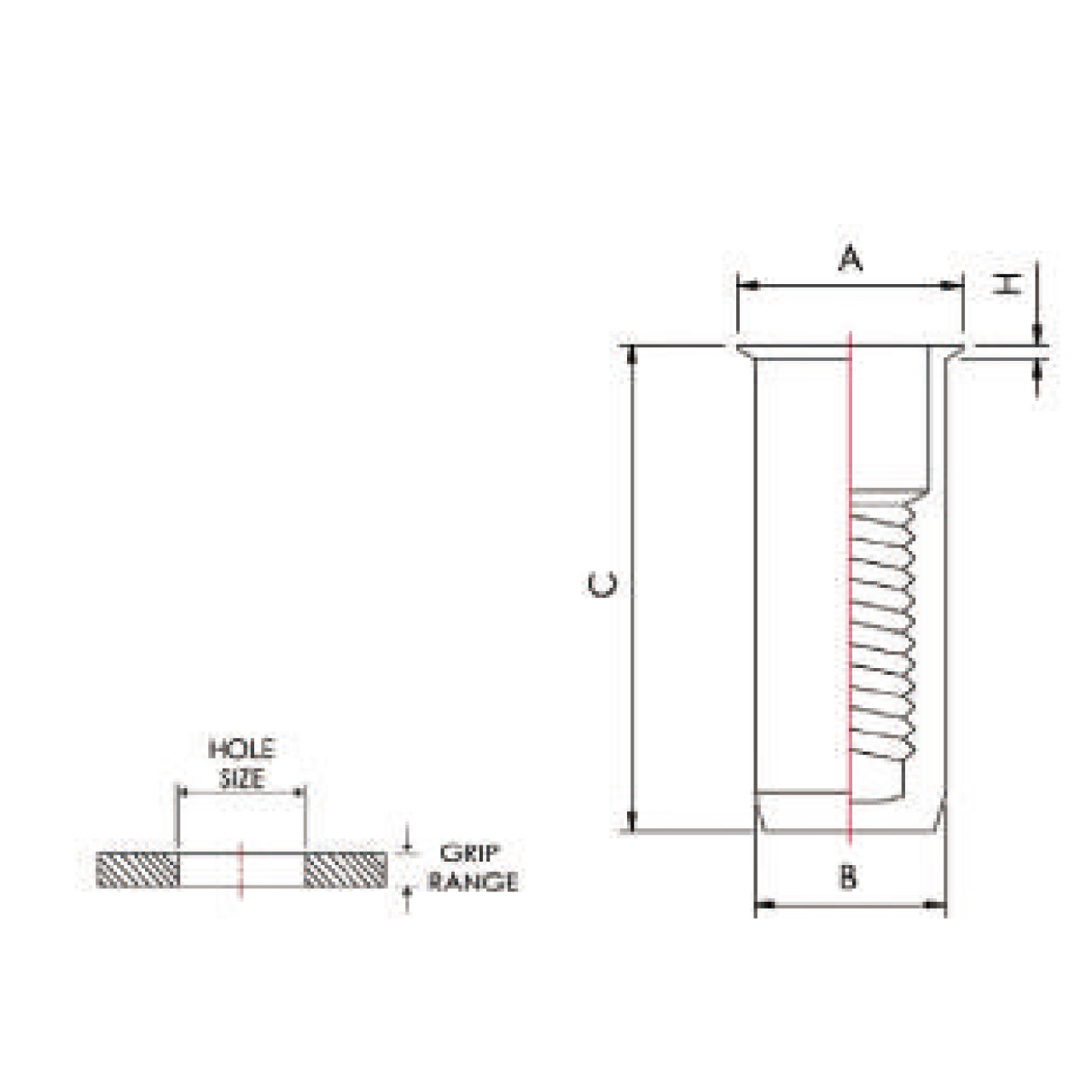

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| R2-SCL420 | M4x0.7 | 0.5-2.0 | 6 | 7.00 | 5.97 | 16.00 | 0.50 |
| R2-SCL530 | M5x0.8 | 0.5-3.0 | 7 | 8.00 | 6.97 | 18.00 | 0.50 |
| R2-SCL630 | M6x1.0 | 0.5-3.0 | 9 | 10.00 | 8.97 | 21.00 | 0.50 |
