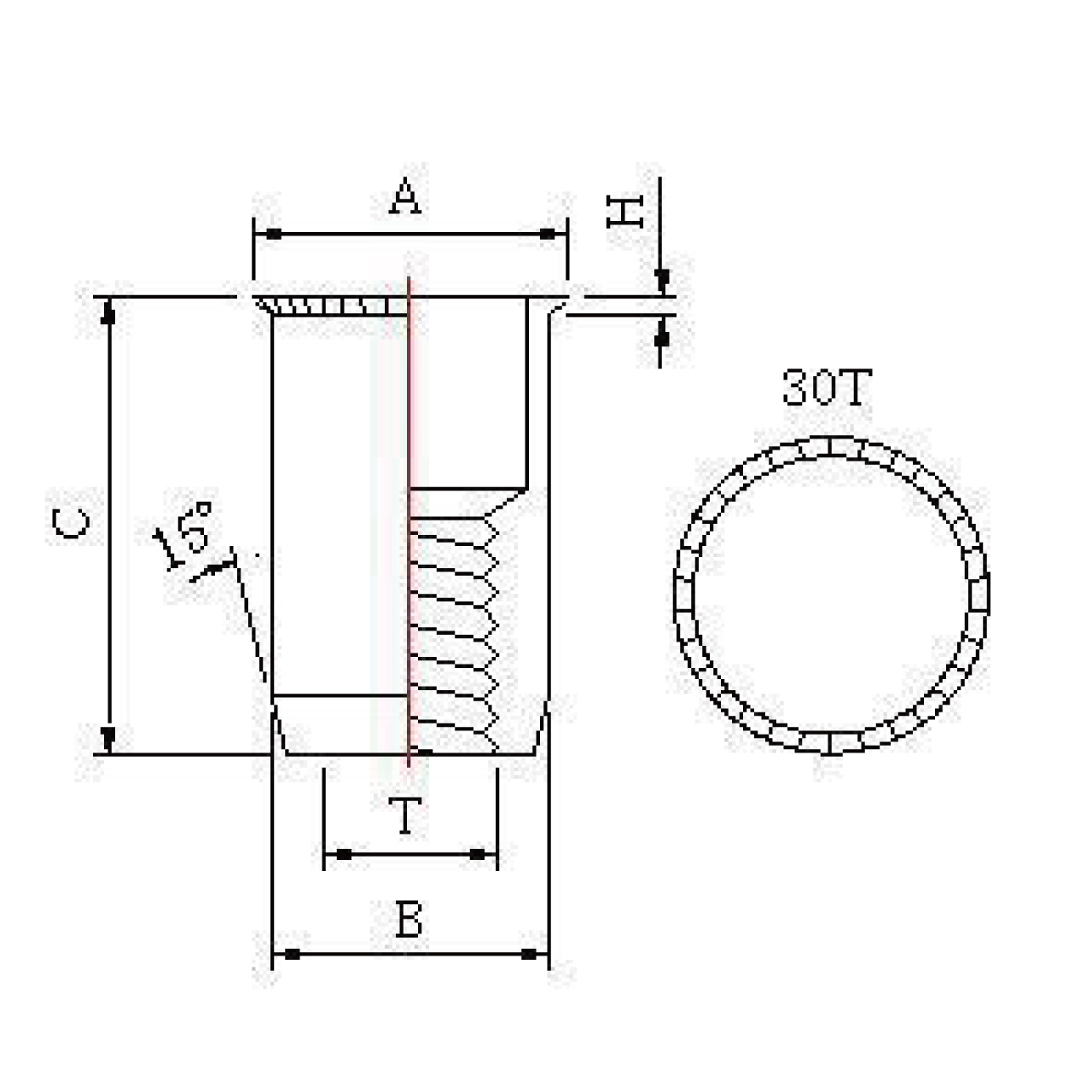

STAINLESS STEEL, BLIND RIVET NUT, REDUCED HEAD, ROUND SHANK BODY, OPEN END
METRIC SIZE :MM
STAINLESS STEEL, BLIND RIVET NUT, REDUCED HEAD, ROUND SHANK BODY, OPEN END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| R-S3 | M3x0.5 | 0.5-1.5 | 4.80 | 5.50 | 4.72 | 9.00 | 0.40 |
| R-S4 | M4x0.7 | 0.5-2.0 | 6.35 | 7.20 | 6.35 | 10.40 | 0.45 |
| R-S5 | M5x0.8 | 0.5-3.0 | 7.11 | 8.10 | 7.10 | 11.90 | 0.50 |
| R-S6 | M6x1.0 | 0.5-3.0 | 9.60 | 10.50 | 9.50 | 14.50 | 0.60 |
| R-S8 | M8x1.25 | 0.5-3.0 | 10.60 | 11.50 | 10.50 | 16.00 | 0.60 |
