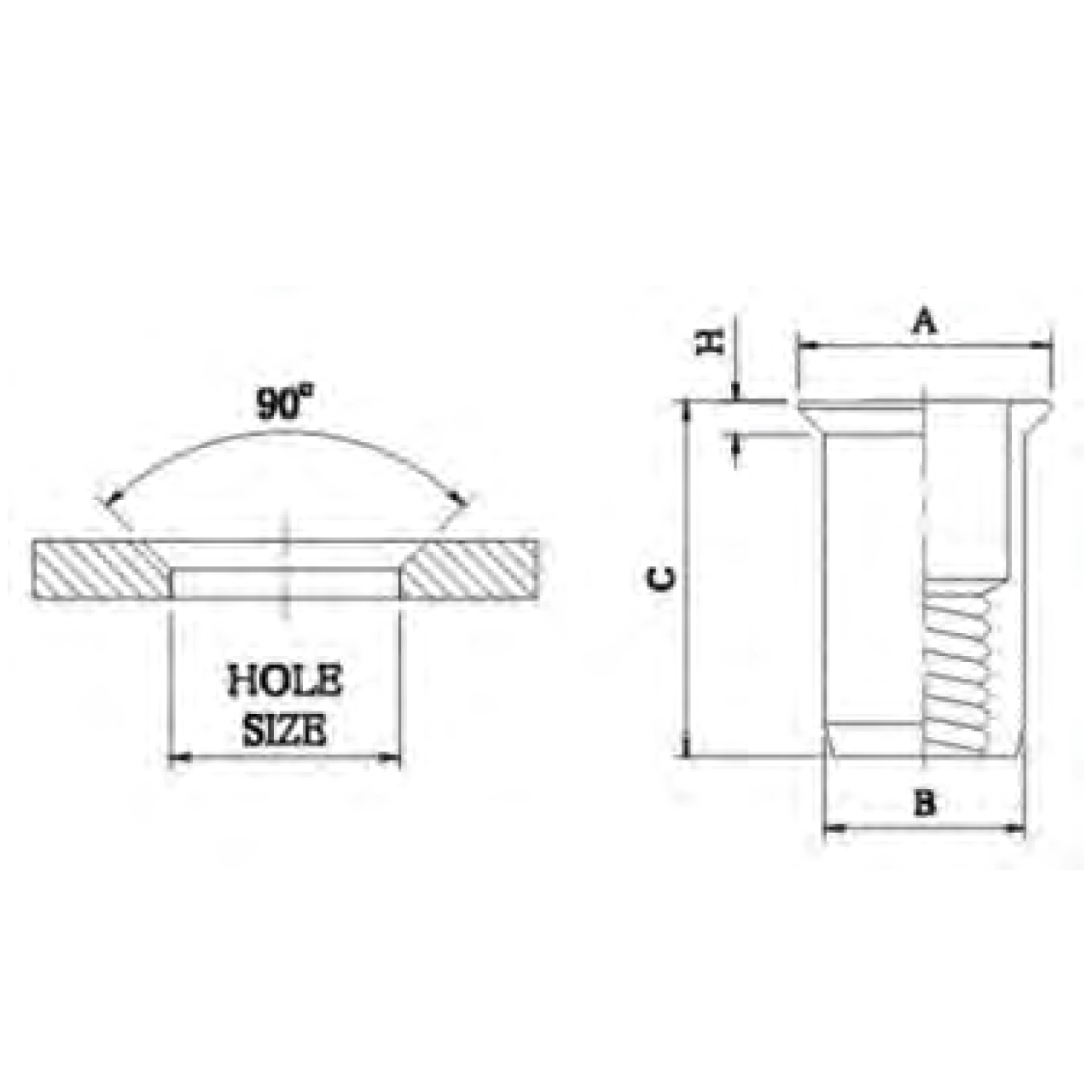

STAINLESS STEEL 302,304,306, BLIND RIVET NUT, COUNTERSUK HEAD, OPEN END
METRIC SIZE :MM
STAINLESS STEEL 302,304,306, BLIND RIVET NUT, COUNTERSUK HEAD, OPEN END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| C-S435 | M4x0.7 | 1.5-3.5 | 6 | 8.50 | 5.97 | 11.50 | 1.50 |
| C-S540 | M5x0.8 | 1.5-4.0 | 7 | 9.50 | 6.97 | 13.00 | 1.50 |
| C-S645 | M6x1.0 | 1.5-4.5 | 9 | 11.50 | 8.97 | 16.00 | 1.50 |
| C-S845 | M8x1.25 | 1.5-4.5 | 11 | 13.50 | 10.97 | 18.50 | 1.50 |
