R2-S SERIES
R2-S SERIES
STAINLESS STEEL 302,304,306, BLIND RIVET NUT, REDUCED COUNTERSUNK HEAD, ROUND SHANK BODY, OPEN END
METRIC SIZE :MM
STAINLESS STEEL 302,304,306, BLIND RIVET NUT, REDUCED COUNTERSUNK HEAD, ROUND SHANK BODY, OPEN END
METRIC SIZE :MM

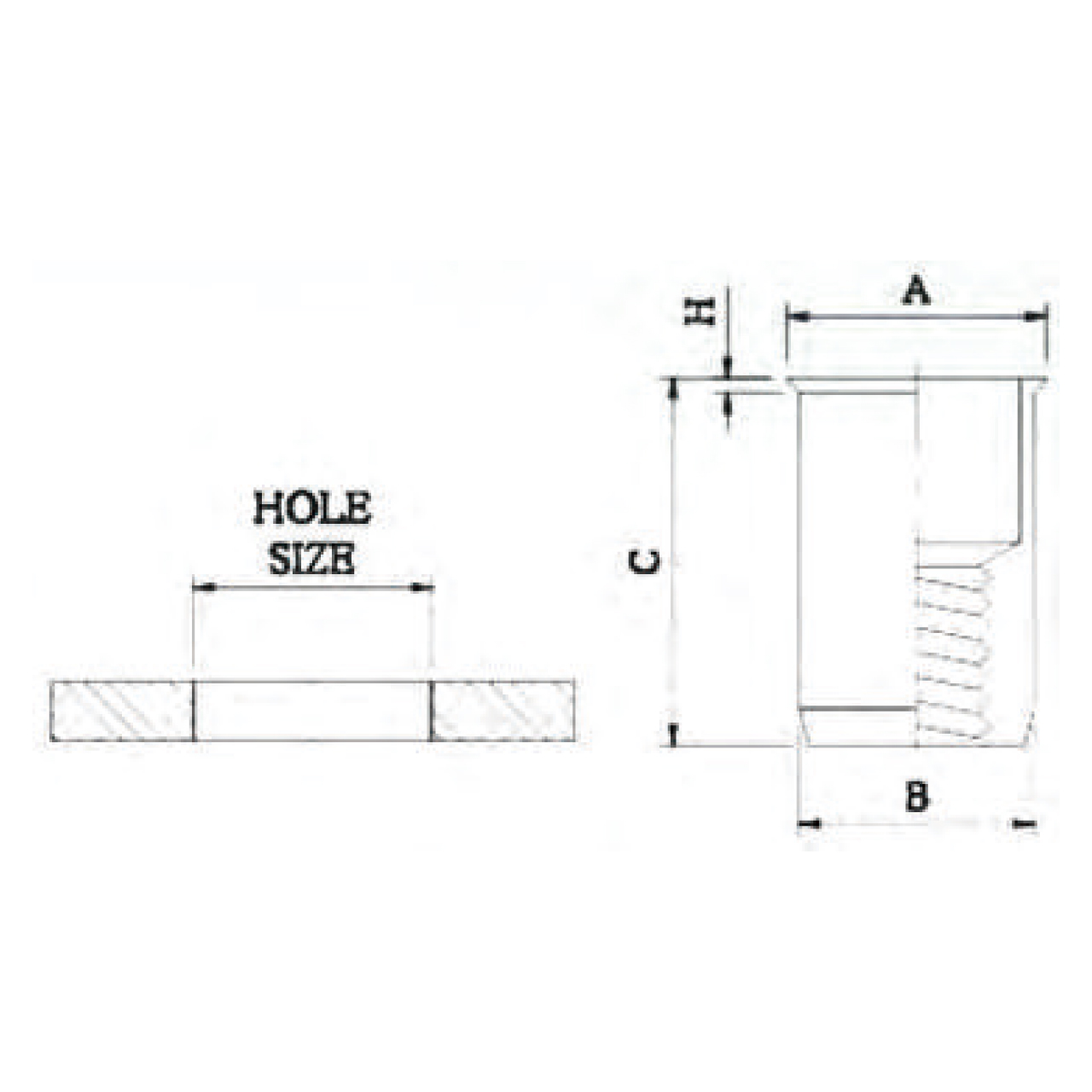

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| R2-S320 | M3x0.5 | 0.5-2.0 | 5 | 5.90 | 4.97 | 9.00 | 0.50 |
| R2-S425 | M4x0.7 | 0.5-2.5 | 6 | 6.80 | 5.97 | 11.00 | 0.50 |
| R2-S530 | M5x0.8 | 0.5-3.0 | 7 | 8.00 | 6.97 | 12.00 | 0.50 |
| R2-S630 | M6x1.0 | 0.5-3.0 | 9 | 10.00 | 8.97 | 14.50 | 0.50 |
| R2-S830 | M8x1.25 | 0.5-3.0 | 11 | 12.00 | 10.97 | 16.50 | 0.50 |
| R2-S1035 | M10x1.5 | 1.0-3.5 | 13 | 14.10 | 12.97 | 19.50 | 0.60 |
