STEEL CR+3 BLIND RIVET NUT REDUCED HEAD, FULL HEXAGON BODY, CLOSED END
METRIC SIZE :MM
STEEL CR+3 BLIND RIVET NUT REDUCED HEAD, FULL HEXAGON BODY, CLOSED END
METRIC SIZE :MM

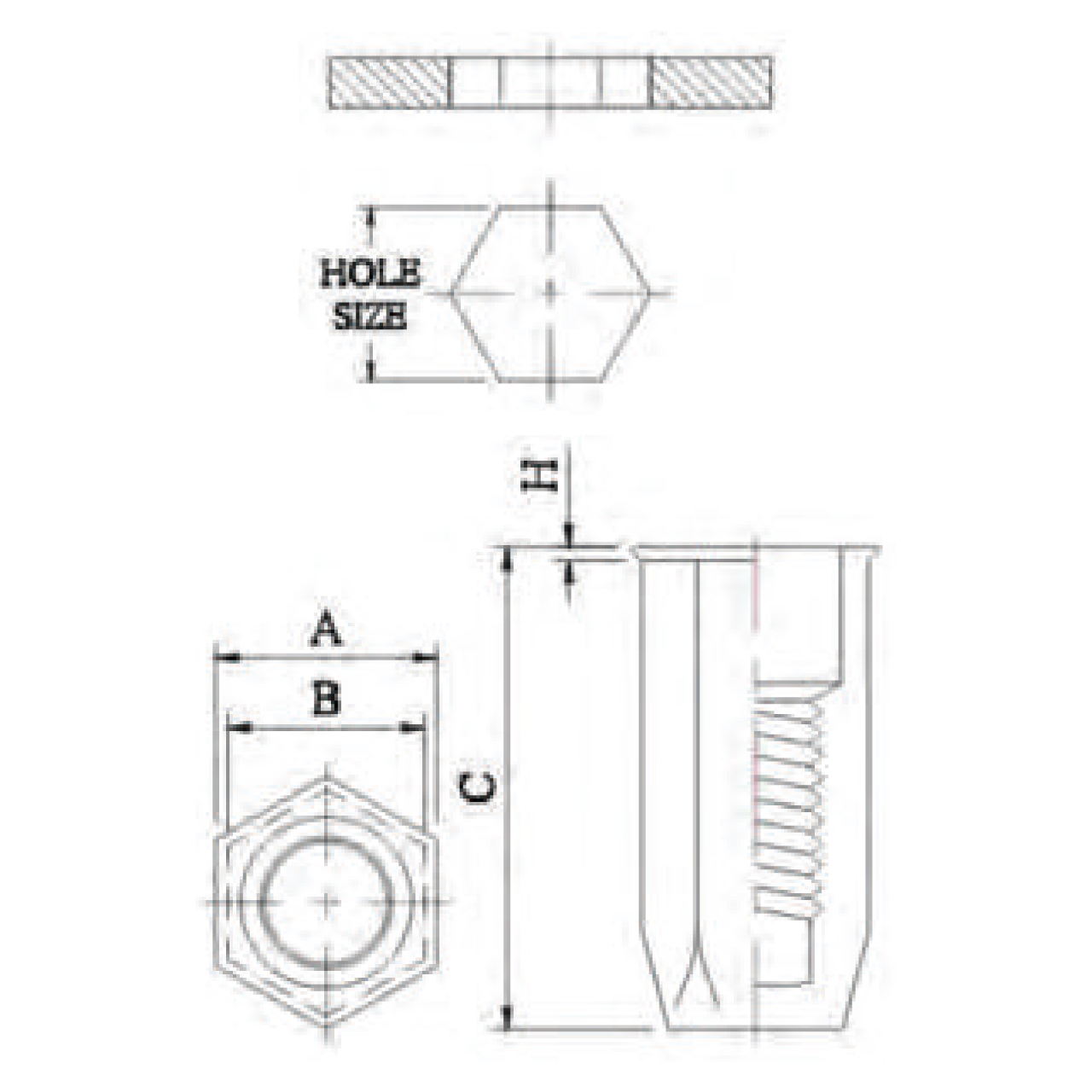

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| RFH-CL425 | M4x0.7 | 0.5-2.5 | 6 | 6.90 | 5.97 | 16.00 | 0.50 |
| RFH-CL530 | M5x0.8 | 0.5-3.0 | 7 | 8.00 | 6.97 | 20.00 | 0.60 |
| RFH-CL630 | M6x1.0 | 0.5-3.0 | 9 | 10.00 | 8.97 | 22.00 | 0.60 |
| RFH-CL835 | M8x1.25 | 0.7-3.5 | 11 | 12.00 | 10.97 | 25.50 | 0.60 |
| RFH-CL860 | M8x1.25 | 3.0-6.0 | 11 | 12.00 | 18.97 | 28.00 | 0.60 |
