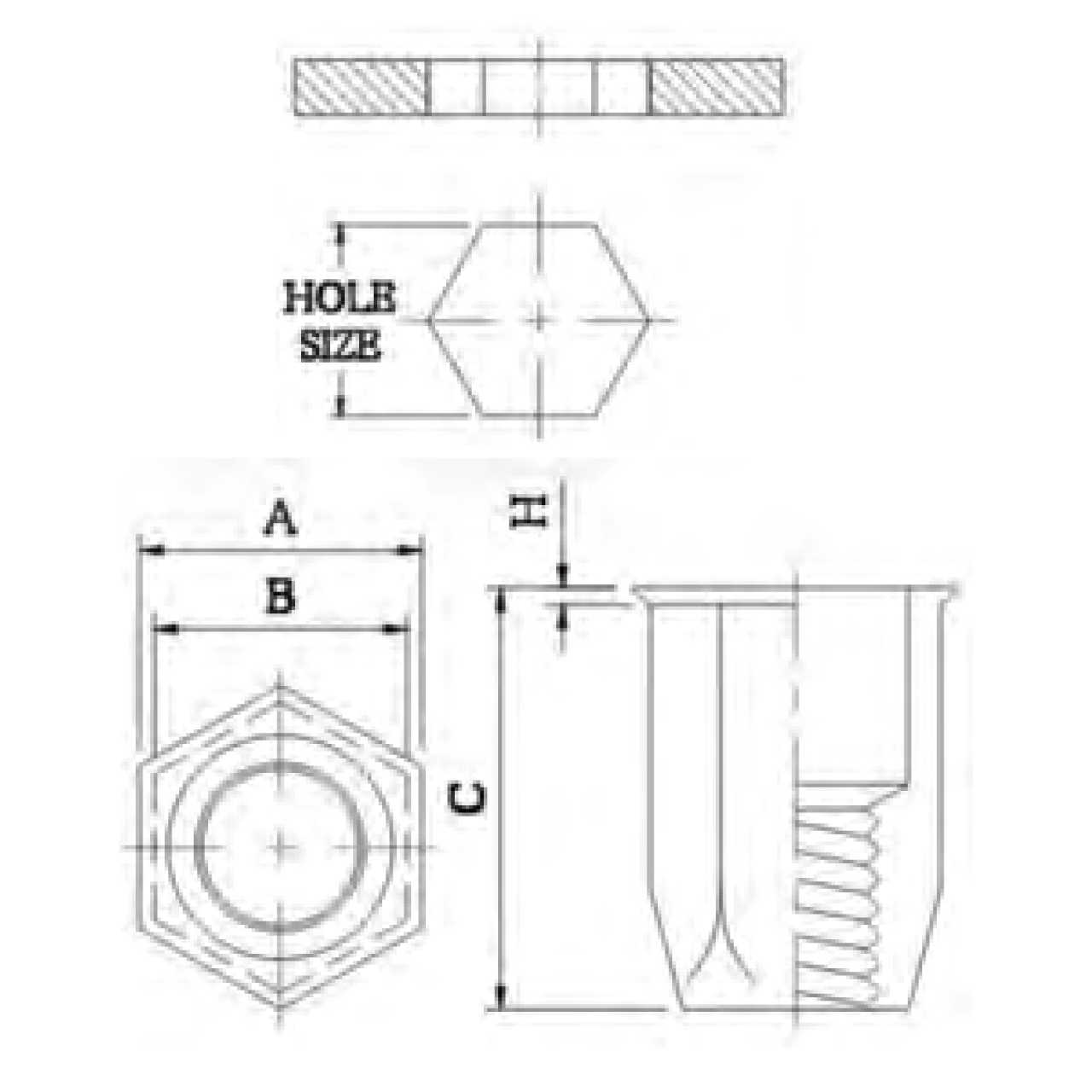

STEEL CR+3 BLIND RIVET NUT FLAT HEAD, FULL HEXAGON BODY, OPEN BODY
METRIC SIZE :MM
STEEL CR+3 BLIND RIVET NUT FLAT HEAD, FULL HEXAGON BODY, OPEN BODY
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| RFH315 | M3x0.5 | 0.3-1.5 | 5 | 5.80 | 4.97 | 8.50 | 0.50 |
| RFH425 | M4x0.7 | 0.5-2.5 | 6 | 6.90 | 5.97 | 10.00 | 0.50 |
| RFH530 | M5x0.8 | 0.5-3.0 | 7 | 8.00 | 6.97 | 12.00 | 0.60 |
| RFH630 | M6x1.0 | 0.5-3.0 | 9 | 10.00 | 8.97 | 15.00 | 0.60 |
| RFH655 | M6x1.0 | 3.0-5.5 | 9 | 10.00 | 8.97 | 18.00 | 0.60 |
| RFH835 | M8x1.25 | 0.7-3.5 | 11 | 12.00 | 10.97 | 17.50 | 0.60 |
| RFH1035 | M10x1.5 | 1.0-3.5 | 13 | 14.50 | 12.97 | 22.50 | 1.00 |
| RFH1045 | M10x1.5 | 1.0-4.5 | 13 | 14.50 | 12.97 | 23.00 | 1.00 |
| RFH1060 | M10x1.5 | 3.5-6.0 | 13 | 14.50 | 12.97 | 25.00 | 1.00 |
| RFH1235 | M12x1.75 | 1.0-3.5 | 16 | 18.25 | 15.97 | 25.00 | 0.90 |
| RFH1265 | M12x1.75 | 3.5-6.5 | 16 | 18.25 | 15.97 | 28.00 | 0.90 |
