FSH2-CL SERIES
FSH2-CL SERIES
STEEL CR+3 BLIND RIVET NUT LARGE FLANGE, FLAT HEAD, SEMI-HEX BODY, CLOSED END
METRIC SIZE :MM
STEEL CR+3 BLIND RIVET NUT LARGE FLANGE, FLAT HEAD, SEMI-HEX BODY, CLOSED END
METRIC SIZE :MM

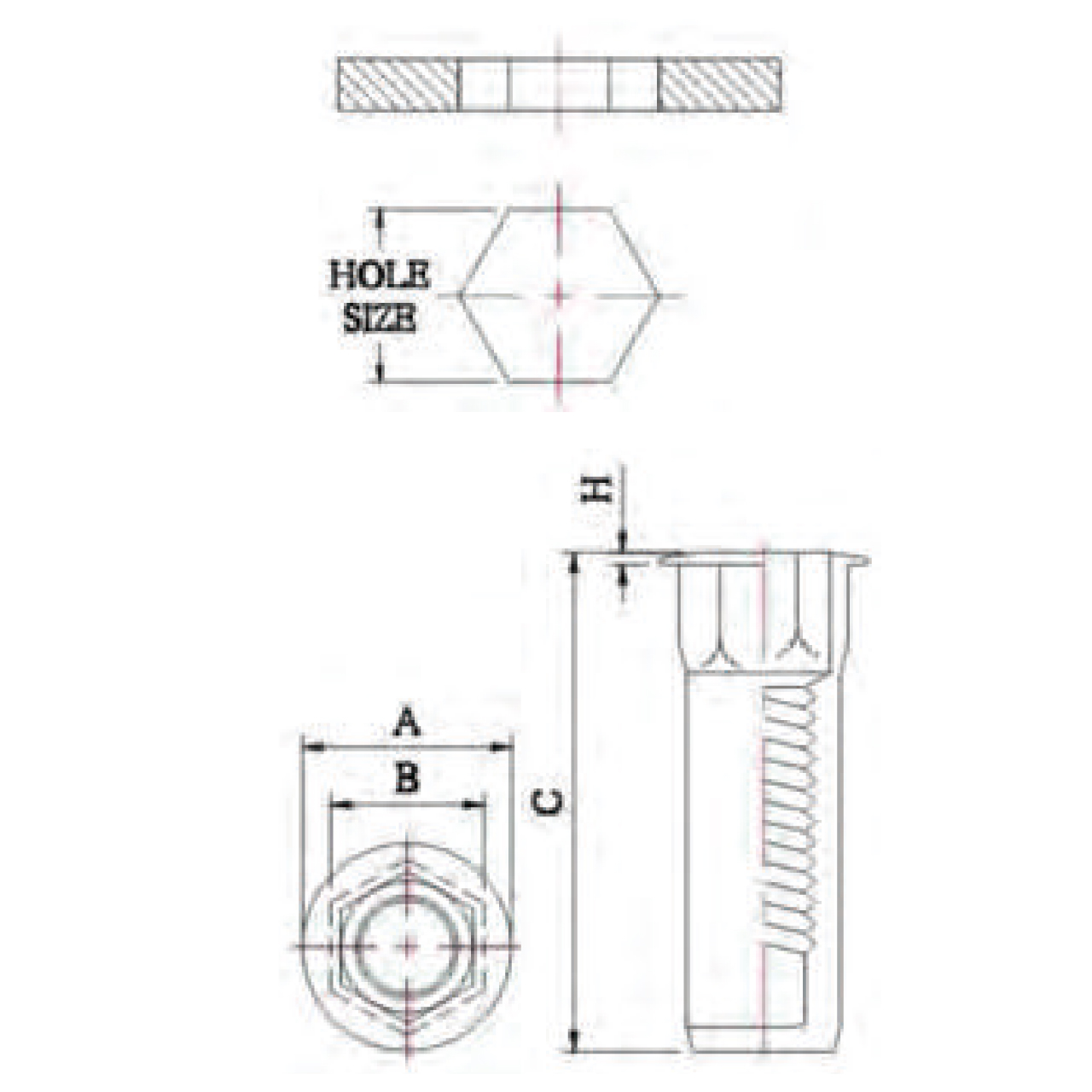

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+.006 | A±.012 | B max | C±.015 | H±.005 |
| FSH2-CL632-80 | 6-32 | .020-.080 | .250 | .375 | .249 | .767 | .027 |
| FSH2-CL832-80 | 8-32 | .020-.080 | .250 | .375 | .249 | .767 | .027 |
| FSH2-CL1024-130 | 10-24 | .020-.130 | .281 | .390 | .280 | 1.057 | .027 |
| FSH2-CL1032-130 | 10-32UNF | .020-.130 | .281 | .390 | .280 | 1.057 | .027 |
| FSH2-CL1/4-165 | 1/4-20 | .027-.165 | .375 | .510 | .374 | 1.220 | .030 |
| FSH2-CL5/16-150 | 5/16-18 | .027-.150 | .500 | .655 | .499 | 1.480 | .035 |
| FSH2-CL3/8-150 | 3/8-16 | .027-.150 | .500 | .655 | .499 | 1.480 | .035 |
