FSH2 SERIES
FSH2 SERIES
STEEL CR+3 BLIND RIVET NUT LARGE FLANGE, FLAT HEAD, SEMI-HEX BODY, OPEN END
METRIC SIZE :MM
METRIC SIZE :INCH
STEEL CR+3 BLIND RIVET NUT LARGE FLANGE, FLAT HEAD, SEMI-HEX BODY, OPEN END
METRIC SIZE :MM

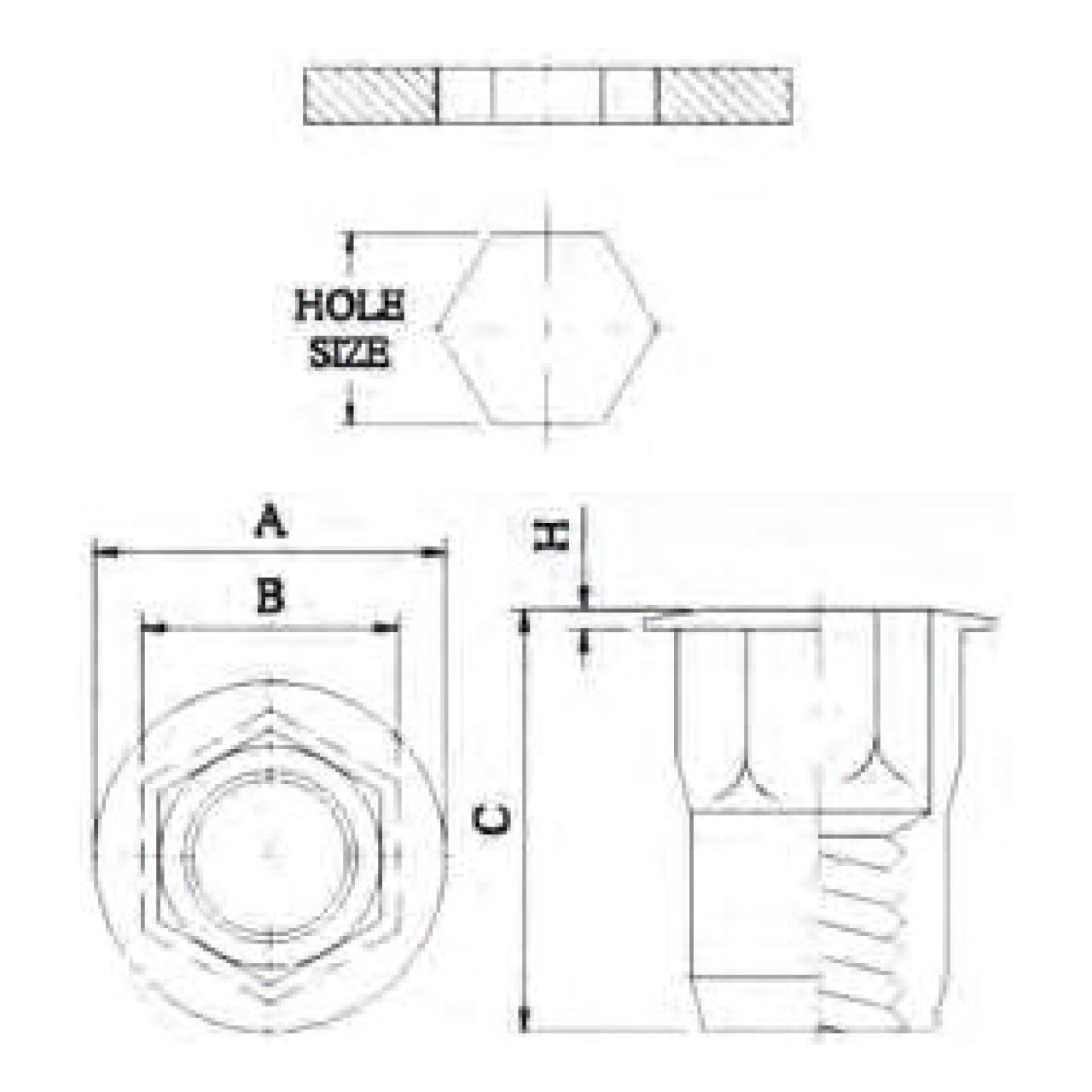

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| FSH-CL2420 | M4x0.7 | 0.5-2.0 | 6.35 | 9.50 | 6.33 | 10.50 | 0.68 |
| FSH-CL2433 | M4x0.7 | 2.0-3.3 | 6.35 | 9.50 | 6.33 | 11.70 | 0.68 |
| FSH-CL2533 | M5x0.8 | 0.5-3.3 | 7.14 | 9.91 | 7.10 | 11.80 | 0.68 |
| FSH-CL2642 | M6x1.0 | 0.7-4.2 | 9.53 | 12.97 | 9.50 | 15.60 | 0.75 |
| FSH-CL2666 | M6x1.0 | 4.2-6.6 | 9.53 | 12.97 | 9.50 | 18.15 | 0.75 |
| FSH-CL2838 | M8x1.25 | 0.7-3.8 | 12.70 | 16.64 | 12.67 | 18.30 | 0.89 |
| FSH-CL2879 | M8x1.25 | 3.8-7.9 | 12.70 | 16.46 | 12.67 | 22.35 | 0.89 |
| FSH-CL21038 | M10x1.5 | 0.7-3.8 | 12.70 | 16.64 | 12.67 | 18.30 | 0.89 |
| FSH-CL21079 | M10x1.5 | 3.8-7.9 | 12.70 | 16.64 | 12.67 | 22.35 | 0.89 |
METRIC SIZE :INCH
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| FSH2632-80 | 6-32 | .020-.080 | .250 | .375 | .249 | .412 | .027 |
| FSH2832-80 | 8-32 | .020-.080 | .250 | .375 | .249 | .412 | .027 |
| FSH21024-130 | 10-24 | .020-.130 | .281 | .390 | .280 | .462 | .027 |
| FSH21032-130 | 10-32UNF | .020-.130 | .281 | .390 | .280 | .462 | .027 |
| FSH21/4-165 | 1/4-20 | .027-.165 | .375 | .510 | .374 | .615 | .030 |
| FSH25/16-150 | 5/16-18 | .027-.150 | .500 | .655 | .499 | .720 | .035 |
| FSH23/8-150 | 3/8-16 | .027-.150 | .500 | .655 | .499 | .720 | .035 |
