FSH-CL SERIES
FSH-CL SERIES

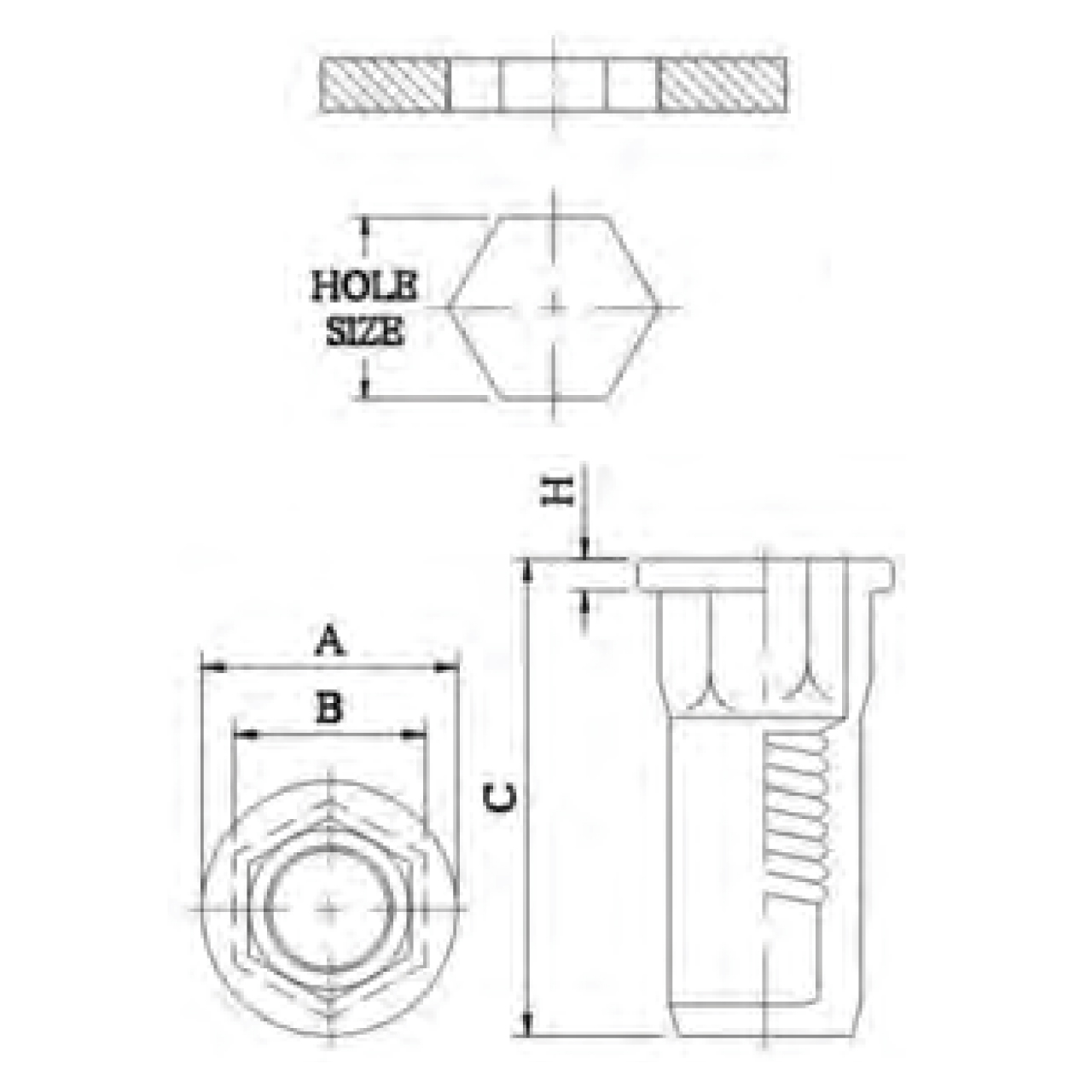

STEEL CR+3 BLIND RIVET NUT FLAT HEAD, SEMI-HEX BODY, CLOSED END
METRIC SIZE :MM
STEEL CR+3 BLIND RIVET NUT FLAT HEAD, SEMI-HEX BODY, CLOSED END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.13 |
| FSH-CL420 | M4x0.7 | 0.5-2.0 | 6.00 | 9.00 | 5.97 | 16.00 | 1.00 |
| FSH-CL530 | M5x0.8 | 0.7-3.0 | 7.00 | 10.00 | 6.97 | 20.00 | 1.00 |
| FSH-CL630 | M6x1.0 | 0.7-3.0 | 9.00 | 13.00 | 8.97 | 23.00 | 1.50 |
| FSH-CL830 | M8x1.25 | 0.7-3.0 | 11.00 | 16.00 | 10.97 | 26.00 | 1.50 |
