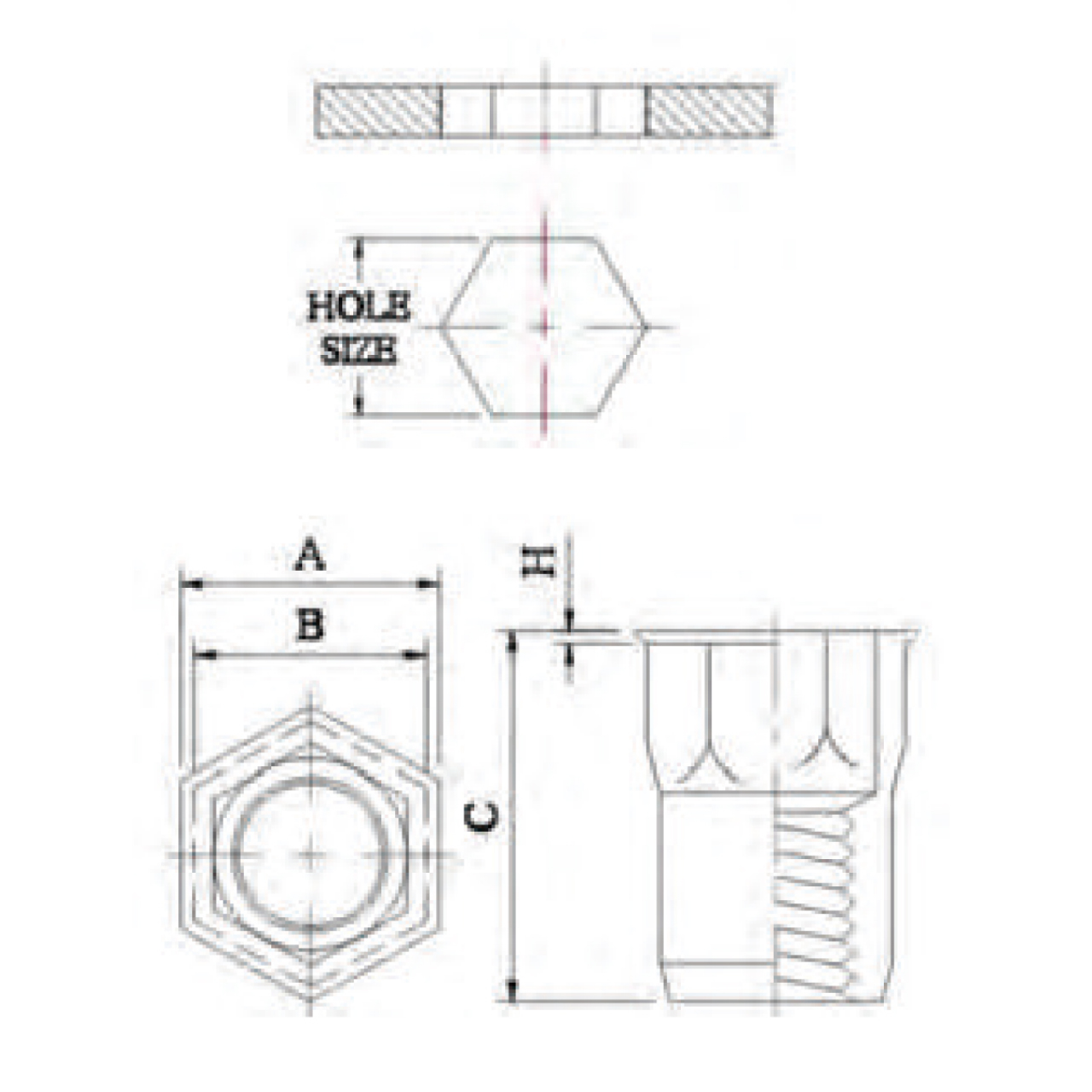

STEEL CR+3 BLIND RIVET NUT REDUCED HEAD, SEMI-HEX BODY, OPEN END
METRIC SIZE :MM
STEEL CR+3 BLIND RIVET NUT REDUCED HEAD, SEMI-HEX BODY, OPEN END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.15 | A±0.3 | B max | C±0.38 | H±0.13 |
| RSH425 | M4x0.7 | 0.5-2.5 | 6.40 | 7.00 | 6.35 | 10.40 | 0.40 |
| RSH533 | M5x0.8 | 0.5-3.0 | 7.00 | 8.10 | 7.10 | 12.00 | 0.50 |
| RSH632 | M6x1.0 | 0.7-3.2 | 9.60 | 10.50 | 9.50 | 14.50 | 0.50 |
| RSH650 | M6x1.0 | 0.5-5.0 | 9.60 | 10.50 | 9.50 | 16.00 | 0.50 |
| RSH832 | M8x1.25 | 0.7-3.2 | 10.60 | 11.50 | 10.50 | 16.00 | 0.50 |
| RSH1035 | M10x1.5 | 1.0-3.5 | 12.70 | 14.00 | 12.70 | 18.80 | 0.60 |
| RSH1040 | M10x1.5 | 1.0-4.0 | 12.70 | 14.00 | 12.70 | 22.50 | 0.60 |
