AL-CL SERIES
AL-CL SERIES
STEEL CR+3 BLIND RIVET NUT ROUND SHANK, LARGE FLANGE WITH KNURLED BODY, CLOSED END
METRIC SIZE :MM
METRIC SIZE :INCH
STEEL CR+3 BLIND RIVET NUT ROUND SHANK, LARGE FLANGE WITH KNURLED BODY, CLOSED END
METRIC SIZE :MM

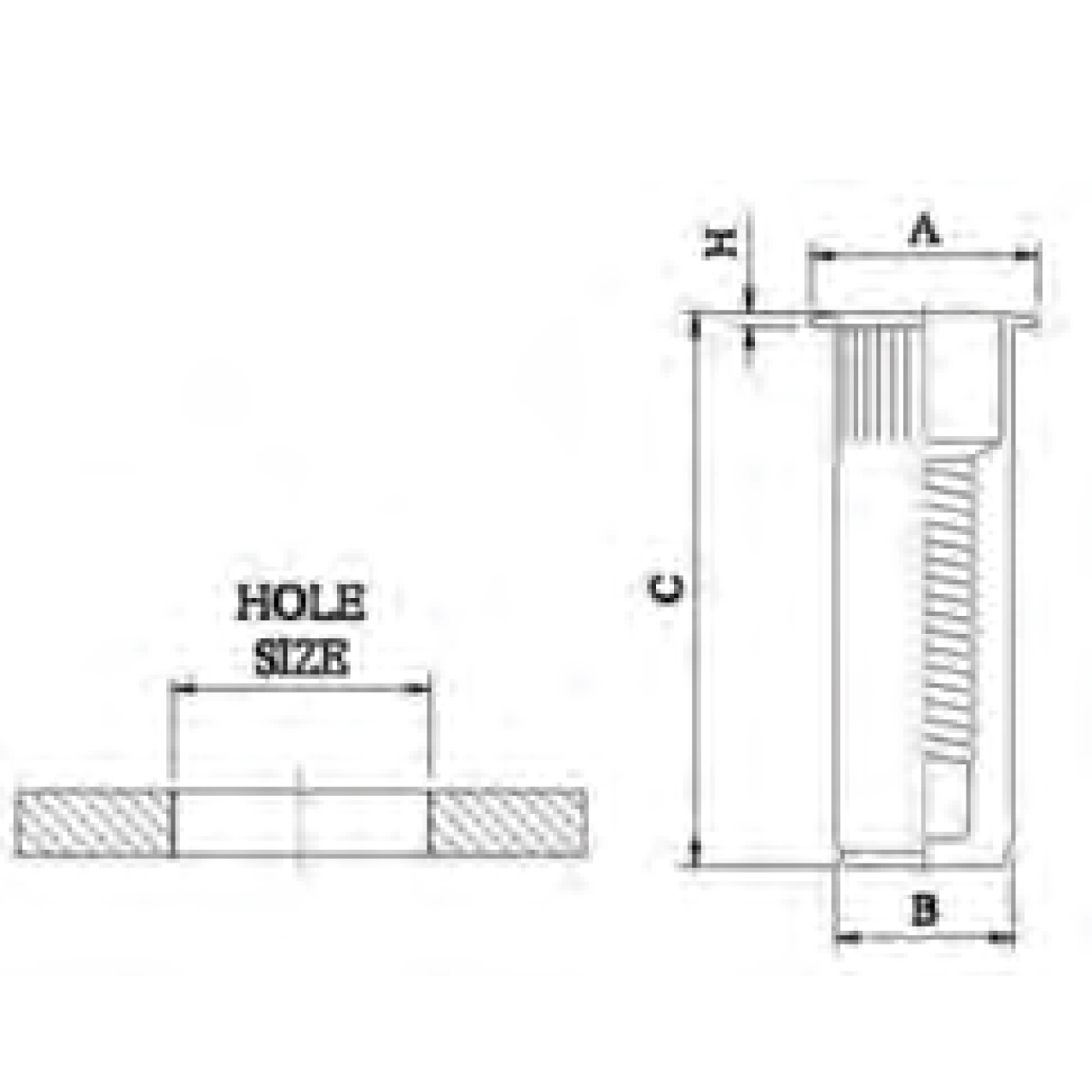

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.15 | A±0.3 | B max | C±0.38 | H±0.13 |
| AL-CL533 | M5x0.8 | 0.5-3.3 | 7.60 | 10.50 | 7.52 | 25.90 | 0.76 |
| AL-CL557 | M5x0.8 | 3.3-5.7 | 7.60 | 10.50 | 7.52 | 25.90 | 0.76 |
| AL-CL642 | M6x1.0 | 0.7-4.2 | 10.00 | 12.70 | 9.91 | 31.00 | 0.76 |
| AL-CL666 | M6x1.0 | 4.2-6.6 | 10.00 | 12.70 | 9.91 | 31.00 | 0.76 |
| AL-CL875 | M8x1.25 | 3.8-7.9 | 13.50 | 17.40 | 13.46 | 36.20 | 0.89 |
METRIC SIZE :INCH
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+.006 | A±.012 | B max | C±.015 | H±.005 |
| AL-CL632-80 | 6-32 | .020-.080 | .2656 | .390 | .265 | .770 | .030 |
| AL-CL632-130 | 6-32 | .080-.130 | .2656 | .390 | .265 | .770 | .030 |
| AL-CL832-80 | 8-32 | .020-.080 | .2656 | .390 | .265 | .770 | .030 |
| AL-CL832-130 | 8-32 | .080-.130 | .2656 | .390 | .265 | .770 | .030 |
| AL-CL1024-130 | 10-24 | .020-.130 | .2969 | .415 | .296 | 1.020 | .030 |
| AL-CL1024-225 | 10-24 | .130-.225 | .2969 | .415 | .296 | 1.020 | .030 |
| AL-CL1032-130 | 10-32UNF | .020-.130 | .2969 | .415 | .296 | 1.020 | .030 |
| AL-CL1032-225 | 10-32UNF | .130-.225 | .2969 | .415 | .296 | 1.020 | .030 |
| AL-CL1/4-165 | 1/4-20 | .027-.165 | .3906 | .500 | .390 | 1.220 | .030 |
| AL-CL1/4-260 | 1/4-20 | .165-.260 | .3906 | .500 | .390 | 1.220 | .030 |
