FK2-CL SERIES
FK2-CL SERIES
STEEL CR+3 BLIND RIVET NUT LARGE FLANGE WITH KNURLED BODY, CLOSED END
METRIC SIZE :MM
STEEL CR+3 BLIND RIVET NUT LARGE FLANGE WITH KNURLED BODY, CLOSED END
METRIC SIZE :MM

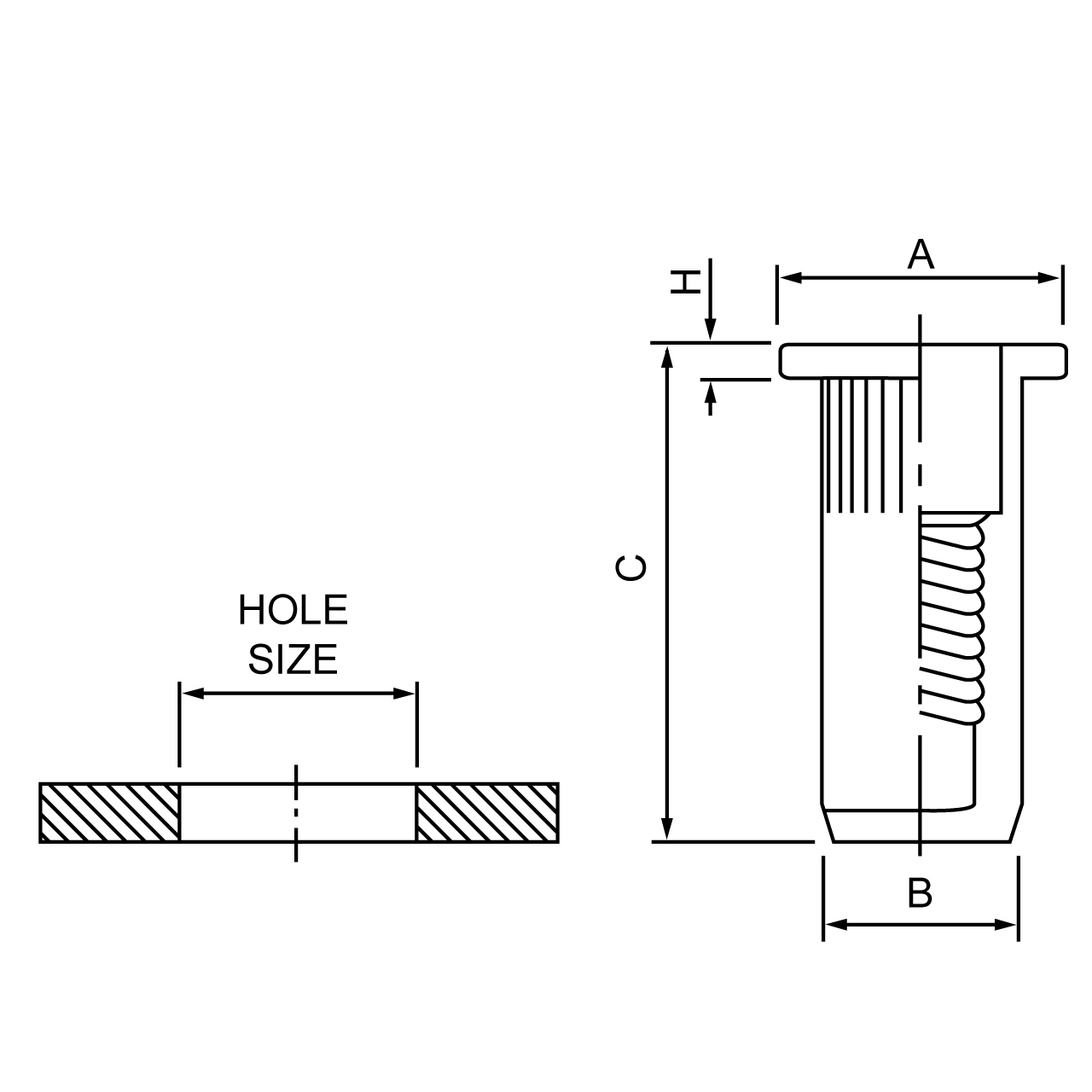

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| FK2-CL425 | M4x0.5 | 0.5-2.5 | 6 | 9.00 | 5.97 | 16.50 | 0.80 |
| FK2-CL530 | M5x0.7 | 0.5-3.0 | 7 | 10.00 | 6.97 | 18.00 | 1.00 |
| FK2-CL630 | M6x1.0 | 0.7-3.0 | 9 | 13.00 | 8.97 | 23.00 | 1.50 |
| FK2-CL830 | M8x1.25 | 0.7-3.0 | 11 | 16.00 | 10.97 | 26.00 | 1.50 |
| FK2-CL1045 | M10x1.5 | 1.0-4.5 | 13 | 19.00 | 12.97 | 30.00 | 2.00 |
