FK3 SERIES
FK3 SERIES
STEEL CR+3 BLIND RIVET NUT LARGE FLANGE WITH KNURLED BODY, AND WAISTLINE, OPEN END
METRIC SIZE :MM
.jpg)

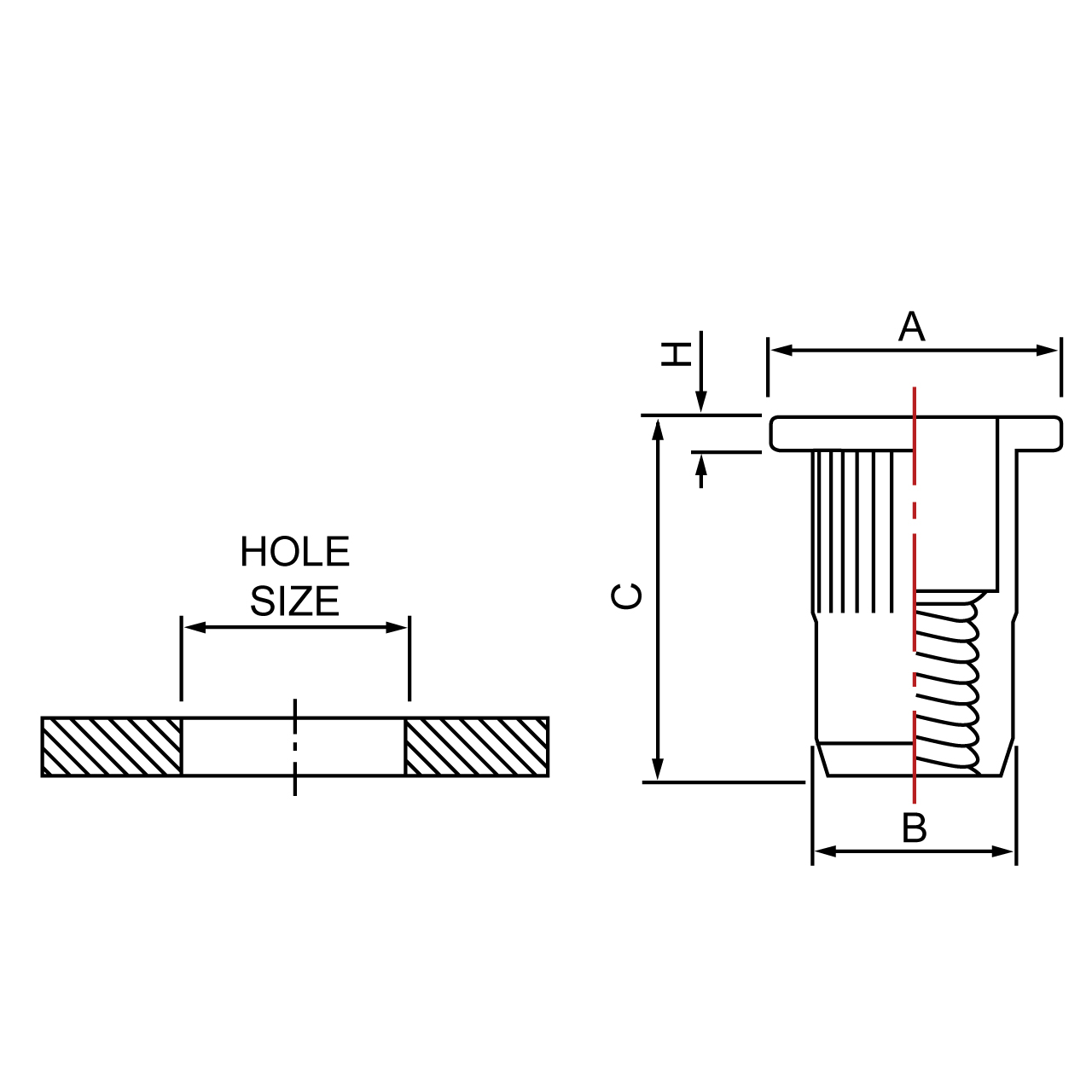

STEEL CR+3 BLIND RIVET NUT LARGE FLANGE WITH KNURLED BODY, AND WAISTLINE, OPEN END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| FK3320 | M3x0.5 | 0.5-2.0 | 5 | 8.00 | 4.97 | 10.50 | 0.70 |
| FK3425 | M4x0.7 | 0.5-2.0 | 6 | 9.00 | 5.97 | 11.00 | 0.80 |
| FK3530 | M5x0.8 | 0.7-3.0 | 7 | 10.00 | 6.97 | 13.00 | 1.00 |
| FK3630 | M6x1.0 | 0.7-3.0 | 9 | 13.00 | 8.97 | 16.00 | 1.50 |
| FK3835 | M8x1.25 | 0.7-3.0 | 11 | 16.00 | 10.97 | 17.50 | 1.50 |
| FK31040 | M10x1.5 | 1.0-4.0 | 13 | 19.00 | 12.97 | 24.00 | 2.00 |
