FK2 SERIES
FK2 SERIES
STEEL CR+3 BLIND RIVET NUT LARGE FLANGE WITH KNURLED BODY, OPEN END
METRIC SIZE :MM
STEEL CR+3 BLIND RIVET NUT LARGE FLANGE WITH KNURLED BODY, OPEN END
METRIC SIZE :MM

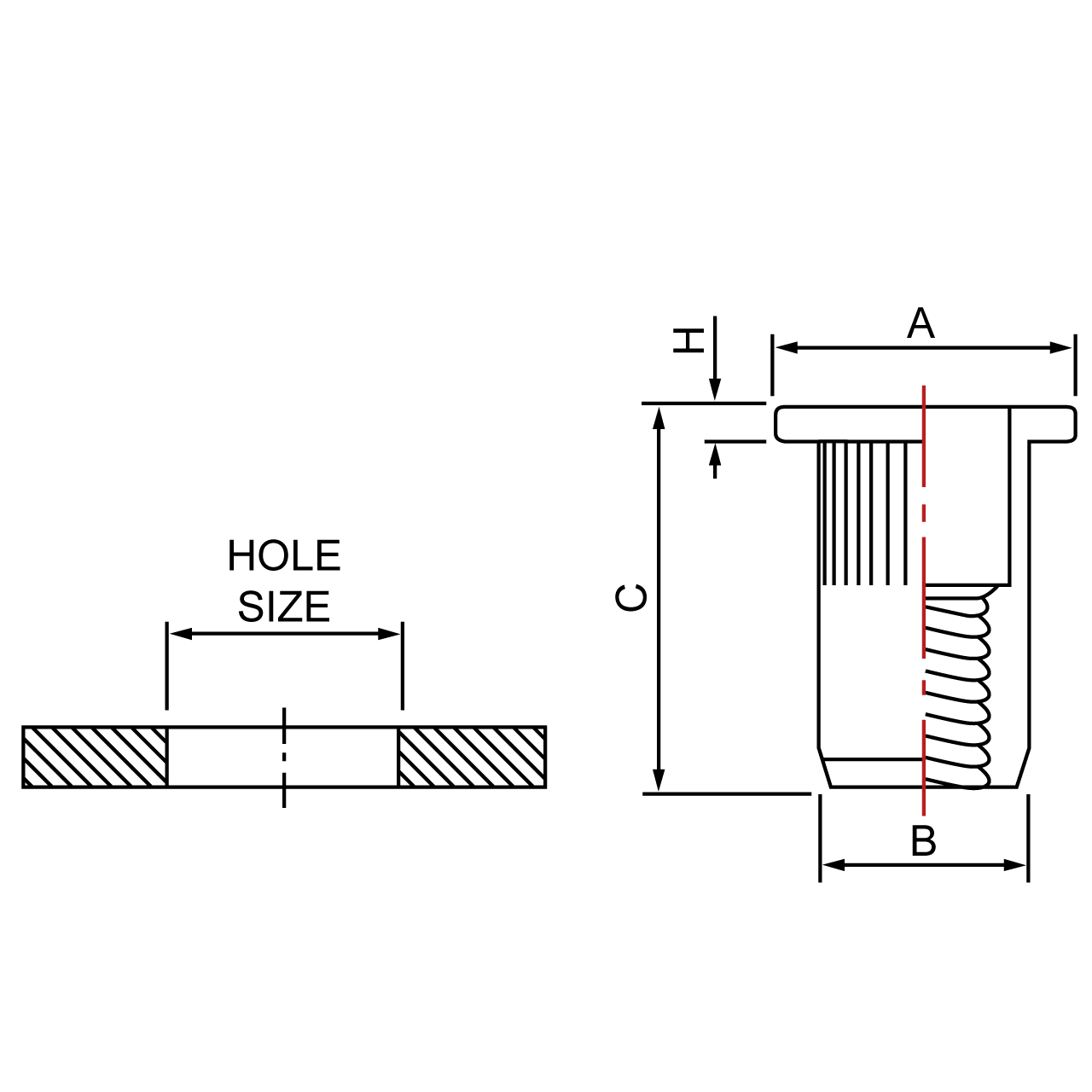

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| FK2320 | M3x0.5 | 0.5-2.0 | 5 | 8.00 | 4.97 | 10.50 | 0.70 |
| FK2425 | M4x0.7 | 0.5-2.5 | 6 | 9.00 | 5.97 | 11.00 | 0.80 |
| FK2440 | M4x0.7 | 2.5-4.0 | 6 | 9.00 | 5.97 | 12.50 | 0.80 |
| FK2530 | M5x0.8 | 0.5-3.0 | 7 | 10.00 | 6.97 | 13.00 | 1.00 |
| FK2530 | M5x0.8 | 0.5-3.0 | 7 | 10.00 | 6.97 | 13.00 | 1.00 |
| FK2545 | M5x0.8 | 3.0-4.5 | 7 | 10.00 | 6.97 | 14.50 | 1.00 |
| FK2630 | M6x1.0 | 0.7-3.0 | 9 | 13.00 | 8.97 | 16.50 | 1.50 |
| FK2650 | M6x1.0 | 3.0-5.0 | 9 | 13.00 | 8.97 | 18.50 | 1.50 |
| FK2685 | M6x1.0 | 6.0-8.5 | 9 | 13.00 | 8.97 | 23.00 | 1.50 |
| FK2830 | M8x1.25 | 0.7-3.0 | 11 | 16.00 | 10.97 | 17.50 | 1.50 |
| FK2855 | M8x1.25 | 3.0-5.5 | 11 | 16.00 | 10.97 | 21.00 | 1.50 |
| FK21045 | M10x1.5 | 1.0-4.5 | 13 | 19.00 | 12.97 | 24.00 | 2.00 |
| FK21050 | M10x1.5 | 4.5-6.0 | 13 | 19.00 | 12.97 | 25.50 | 2.00 |
| FK21250 | M12x1.75 | 1.0-5.0 | 16 | 23.00 | 15.97 | 27.00 | 2.00 |
