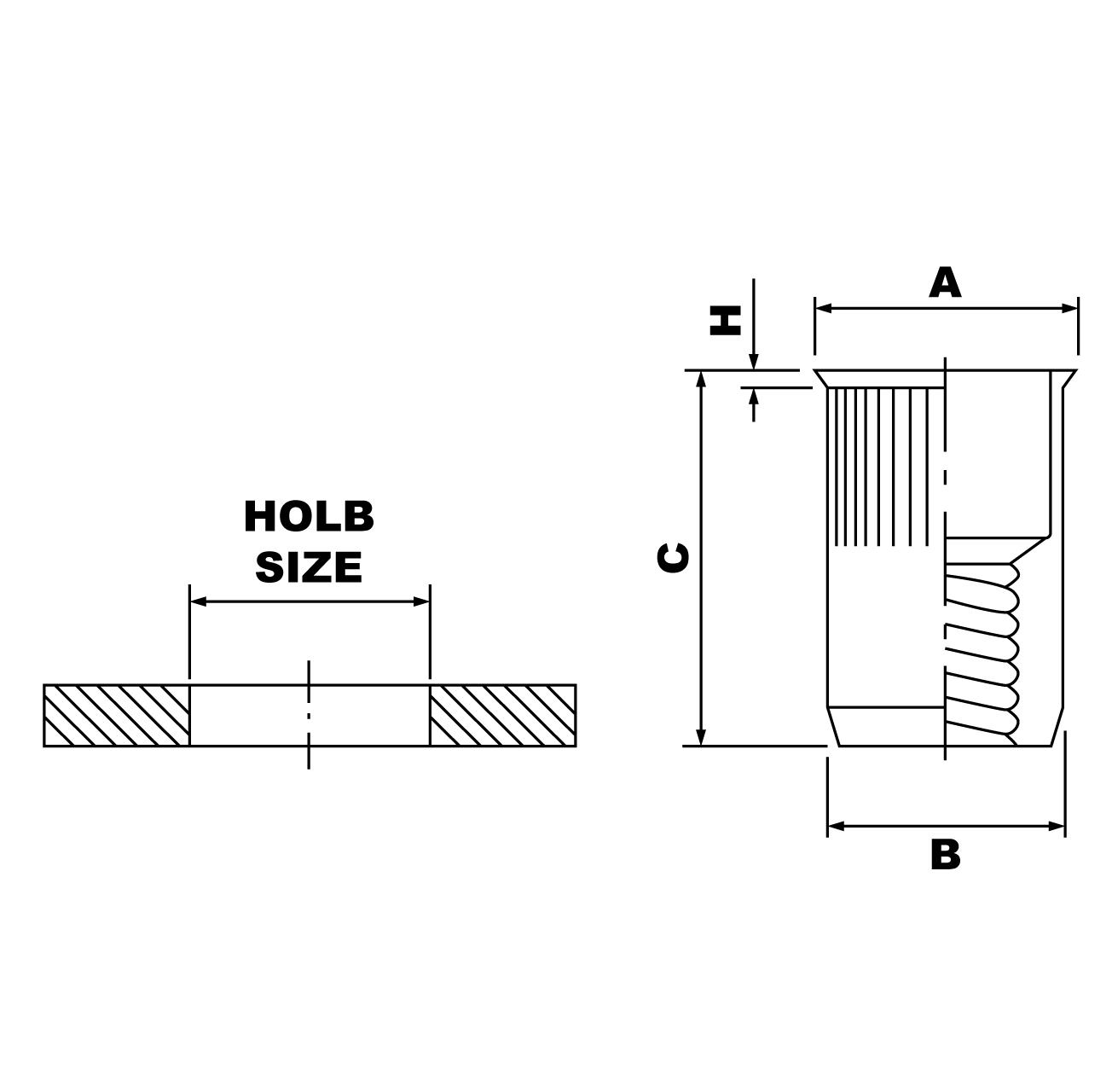

STEEL CR+3 BLIND RIVET NUT FLAT HEAD, ROUND SHANK WITH KNURLED BODY, OPEN END
METRIC SIZE :MM
STEEL CR+3 BLIND RIVET NUT FLAT HEAD, ROUND SHANK WITH KNURLED BODY, OPEN END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| RK3320 | M3x0.5 | 0.5-2.0 | 5 | 5.80 | 4.97 | 9.00 | 0.50 |
| RK3330 | M3x0.5 | 1.5-3.5 | 5 | 6.00 | 4.97 | 10.50 | 0.40 |
| RK3420 | M4x0.7 | 0.5-2.0 | 6 | 7.00 | 5.97 | 9.95 | 0.45 |
| RK3440 | M4x0.7 | 2.0-4.0 | 6 | 7.00 | 5.97 | 12.00 | 0.45 |
| RK3530 | M5x0.8 | 0.5-3.0 | 7 | 8.00 | 6.97 | 12.00 | 0.50 |
| RK3540 | M5x0.8 | 2.5-4.0 | 7 | 8.00 | 6.97 | 14.00 | 0.50 |
| RK3630 | M6x1.0 | 0.7-3.0 | 9 | 10.00 | 8.97 | 15.00 | 0.50 |
| RK3650 | M6x1.0 | 3.0-5.0 | 9 | 10.00 | 8.97 | 17.00 | 0.50 |
| RK3660 | M6x1.0 | 3.0-6.0 | 9 | 10.00 | 8.97 | 17.50 | 0.50 |
| RK3830 | M8x1.25 | 0.7-3.0 | 11 | 12.00 | 10.97 | 16.00 | 0.50 |
| RK3855 | M8x1.25 | 3.0-5.5 | 11 | 12.00 | 10.97 | 18.50 | 0.50 |
| RK31045 | M10x1.5 | 1.0-4.5 | 13 | 14.10 | 12.97 | 20.50 | 0.60 |
| RK31060 | M10x1.5 | 3.0-6.0 | 13 | 14.10 | 12.97 | 23.50 | 0.60 |
| RK31240 | M12x1.75 | 1.0-4.0 | 16 | 17.15 | 15.97 | 24.00 | 0.60 |
| RK31260 | M12x1.75 | 4.0-6.0 | 16 | 17.15 | 15.97 | 27.00 | 0.60 |
