RK3-CL SERIES
RK3-CL SERIES
STEEL CR+3 BLIND RIVET NUT REDUCED HEAD, ROUND SHANK WITH KNURLED BODY, CLOSED END
METRIC SIZE :MM
STEEL CR+3 BLIND RIVET NUT REDUCED HEAD, ROUND SHANK WITH KNURLED BODY, CLOSED END
METRIC SIZE :MM

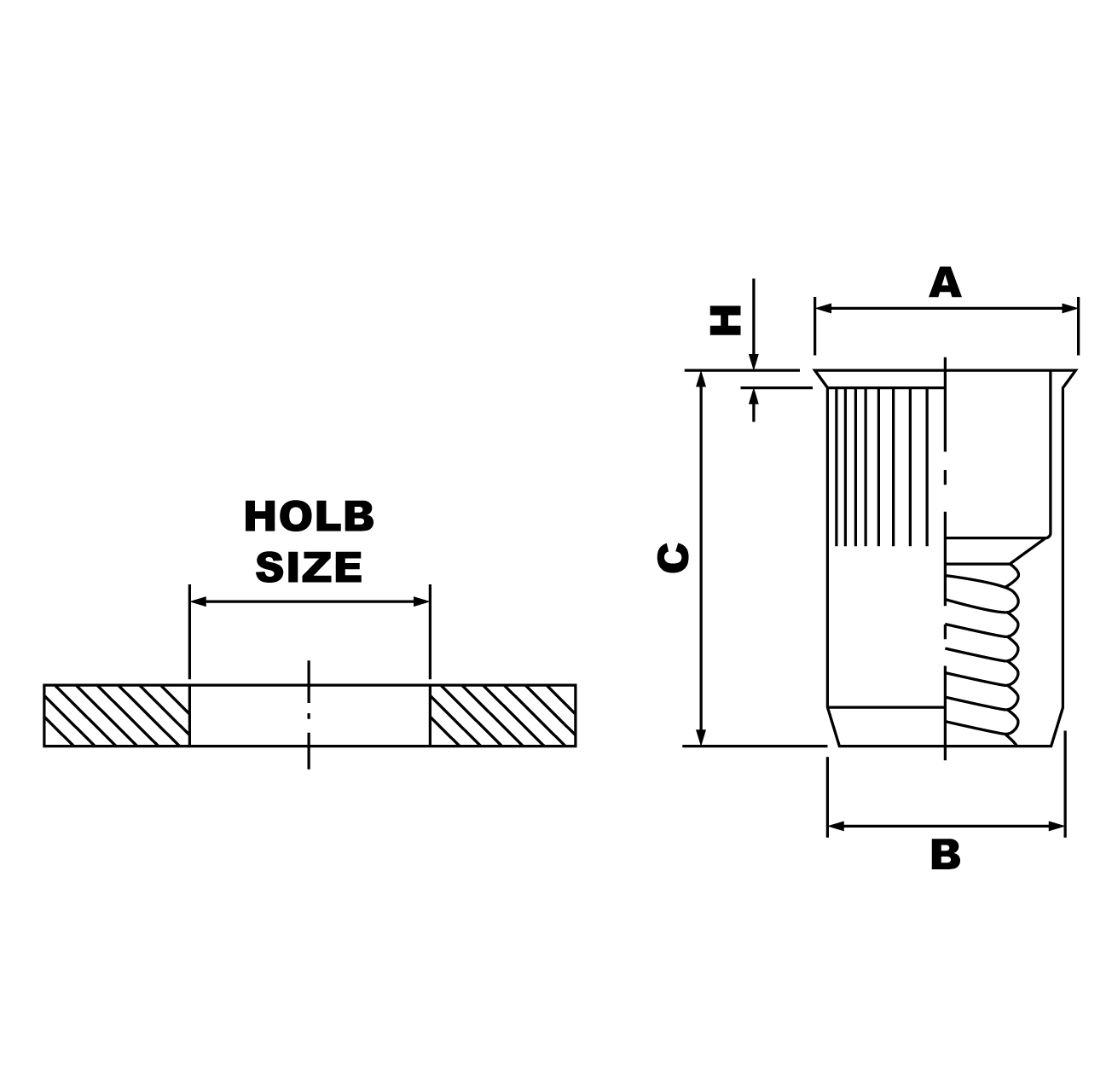

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| RK3-CL425 | M4x0.7 |
0.5-2.5 | 5 | 6.80 | 5.97 | 15.00 | 0.50 |
| RK3-CL530 | M5x0.8 | 0.7-3.0 | 6 | 8.00 | 6.97 | 18.00 | 0.50 |
| RK3-CL630 | M6x1.0 | 0.7-3.0 | 9 | 9.90 | 8.97 | 21.50 | 0.50 |
| RK3-CL835 | M8x1.25 | 0.7-3.5 | 11 | 12.00 | 10.97 | 22.50 | 0.50 |
| RK3-CL1040 | M10x1.5 | 1.0-4.0 | 13 | 14.20 | 12.97 | 28.00 | 0.50 |
