AL SERIES
AL SERIES
STEEL CR+3 BLIND RIVET NUT REDUCED HEAD, ROUND SHANK WITH KNURLED BODY, OPEN END


METRIC SIZE :MM

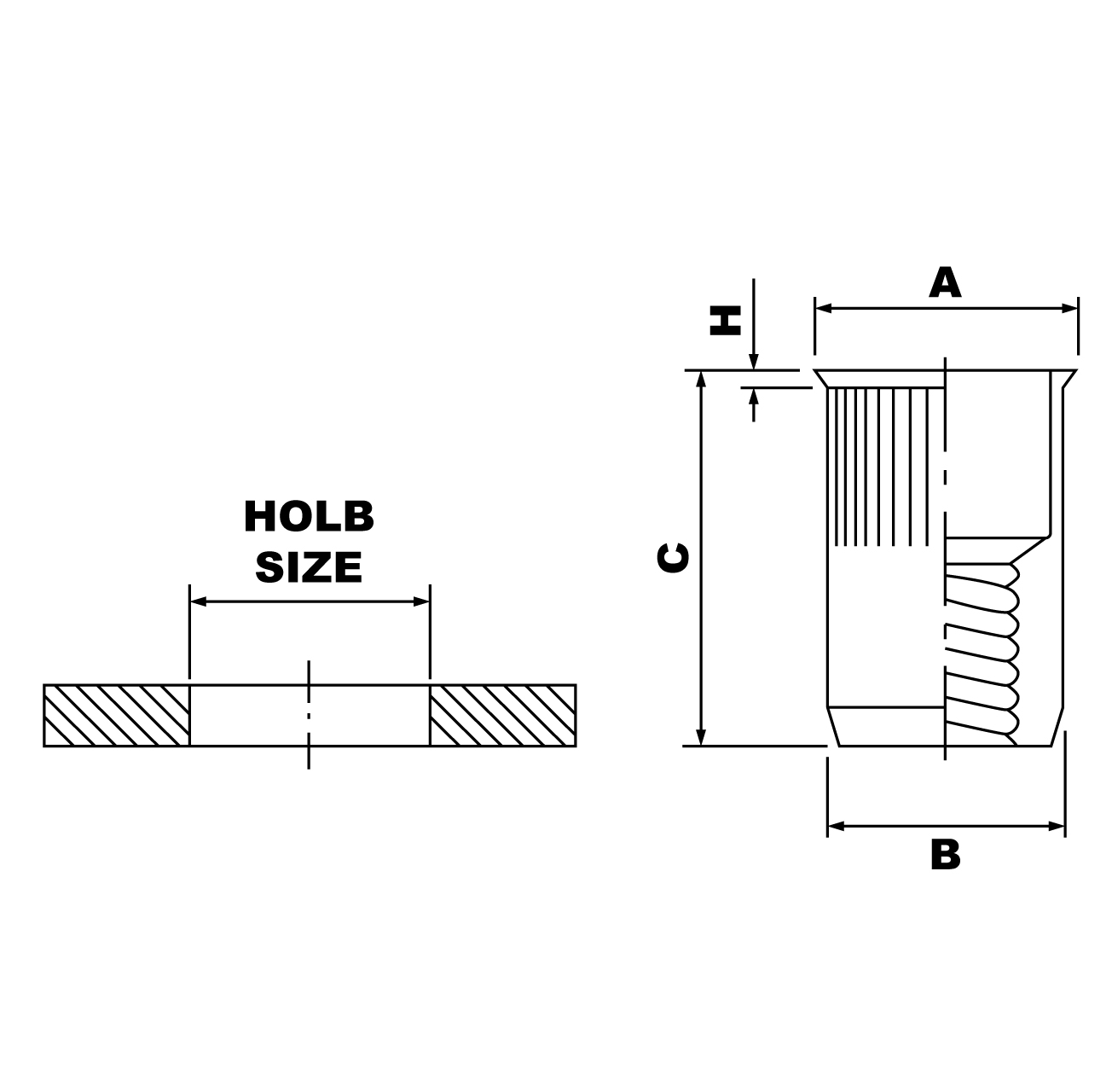

PART NO. THREAD SIZE GRIP RANGE HOLE SIZE+0.15 A±0.3 B max C±0.38 H±0.13
AL420 M4x0.7 0.5-2.0 6.75 9.91 6.73 11.43 0.76
AL433 M4x0.7 2.0-3.3 6.75 9.91 6.73 12.67 0.76
AL533 M5x0.8 0.5-3.3 7.60 10.50 7.52 12.80 0.76
AL557 M5x0.8 3.3-5.7 7.60 10.50 7.52 15.60 0.76
AL642 M6x1.0 0.7-4.2 10.00 12.70 9.91 15.50 0.76
AL666 M6x1.0 4.2-6.6 10.00 12.70 9.91 18.00 0.76
AL838 M8X1.25 0.7-3.8 13.50 17.40 13.46 18.42 0.89
AL879 M8x1.25 3.8-7.9 13.50 17.40 13.46 21.35 0.89
AL1038 M10x1.5 0.7-3.8 13.50 17.40 13.46 18.40 0.89
AL1079 M10x1.5 3.8-7.9 13.50 17.40 13.46 21.30 0.89









































METRIC SIZE :INCH
PART NO. THREAD SIZE GRIP RANGE HOLE SIZE+.006 A.012 B max C±.015 H±.005
AL632-80 6-32 .020-.080 .2656 .390 .265 .450 .030
AL632-130 6-32 .080-.130 .2656 .390 .265 .500 .030
AL832-80 8-32 .020-.080 .2656 .390 .265 .450 .030
AL832-130 8-32 .080-.130 .2656 .390 .265 .500 .030
AL1024-130 10-24 .020-.130 .2969 .415 .296 .505 .030
AL1024-225 10-24 .130-.225 .2969 .415 .296 .615 .030
AL1032-130 10-32UNF .020-.130 .2969 .415 .296 .615 .030
AL1032-225 10-32UNF .130-.225 .2969 .415 .296 .615 .030
AL1/4-165 1/4-20 .027-.165 .3906 .500 .390 .610 .030
AL1/4-260 1/4-20 .165-.260 .3906 .500 .390 .710 .030
AL58/16 5/16-18 .027-.150 .5312 .685 .530 .725 .035
 AL58/312 5/16-18 .150-.312 .5312 .685 .530 .840 .035
 AL3/8-150 3/8-16 .027-.150 .5312 .685 .530 .725 .035
 AL3/8-312 3/8-16 .150-.312 .5312 .685 .530 .840 .035
AL1/2-200 1/2-13 .063-.200 .6875 .865 .685 1.197 .047
 AL1/2-350 1/2-13 .200-.350 .6875 .865 .685 1.347 0.47
 AL1/2-500 1/2-13 .350-.500 .6875 .865 .685 1.497 0.47
