RK2 SERIES
RK2 SERIES
STEEL CR+3 BLIND RIVET NUT REDUCED HEAD, ROUND SHANK WITH KNURLED BODY, OPEN END
METRIC SIZE :MM
STEEL CR+3 BLIND RIVET NUT REDUCED HEAD, ROUND SHANK WITH KNURLED BODY, OPEN END
METRIC SIZE :MM

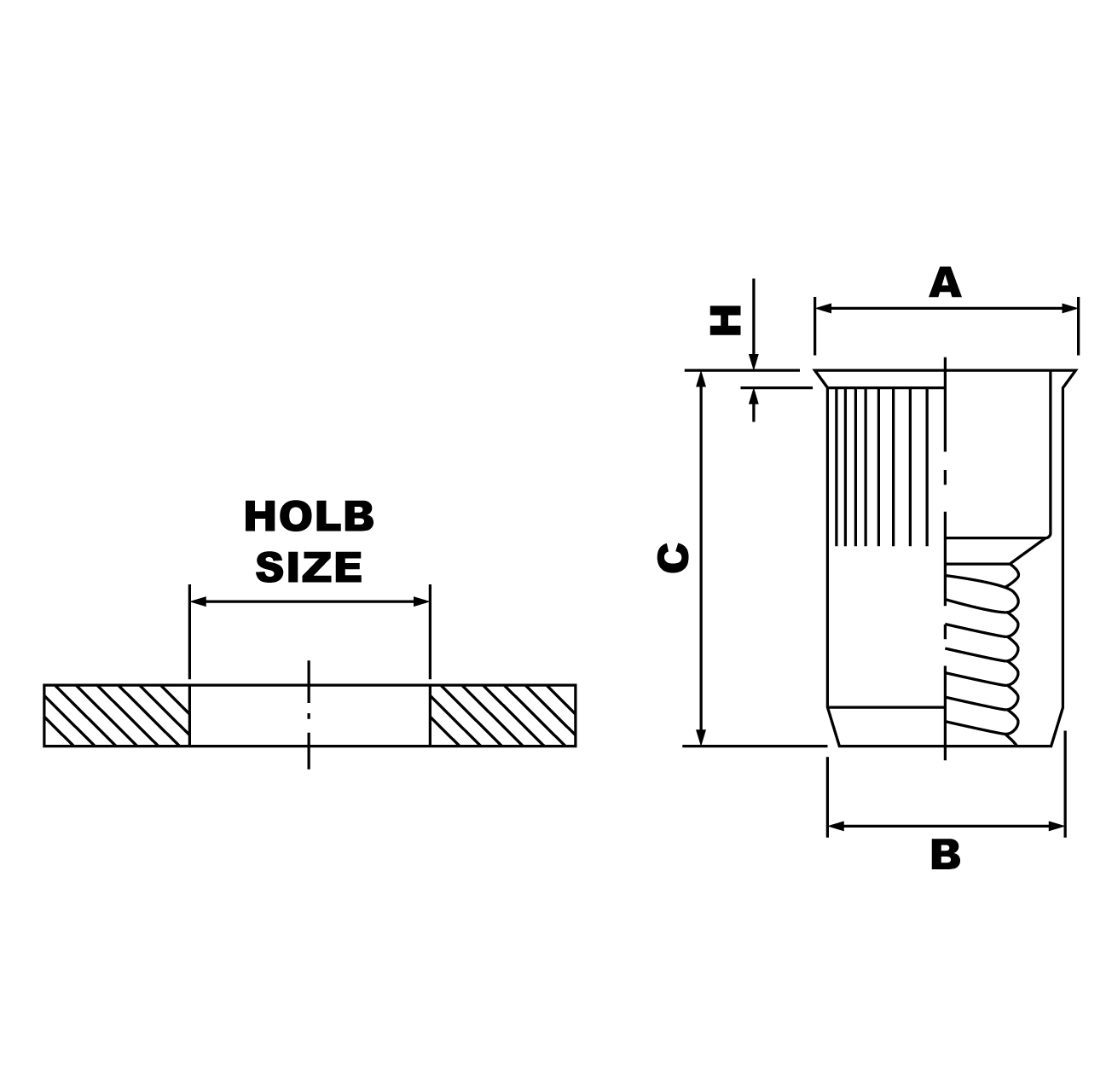

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.15 | A±0.3 | B max | C±0.38 | H±0.13 |
| RK2315 | M3x0.5 | 0.5-1.5 | 4.80 | 5.30 | 4.72 | 8.80 | 0.40 |
| RK2420 | M4x0.7 | 0.5-2.0 | 6.35 | 7.20 | 6.35 | 10.40 | 0.45 |
| RK2530 | M5x0.8 | 0.5-3.0 | 7.11 | 8.10 | 7.10 | 12.00 | 0.50 |
| RK2830 | M8x1.25 | 0.7-3.0 | 10.60 | 11.50 | 10.50 | 16.00 | 0.50 |
