R2 SERIES
R2 SERIES
STEEL CR+3 BLIND RIVET NUT REDUCED COUNTERSUNK HEAD, OPEN END
METRIC SIZE :MM
STEEL CR+3 BLIND RIVET NUT REDUCED COUNTERSUNK HEAD, OPEN END
METRIC SIZE :MM

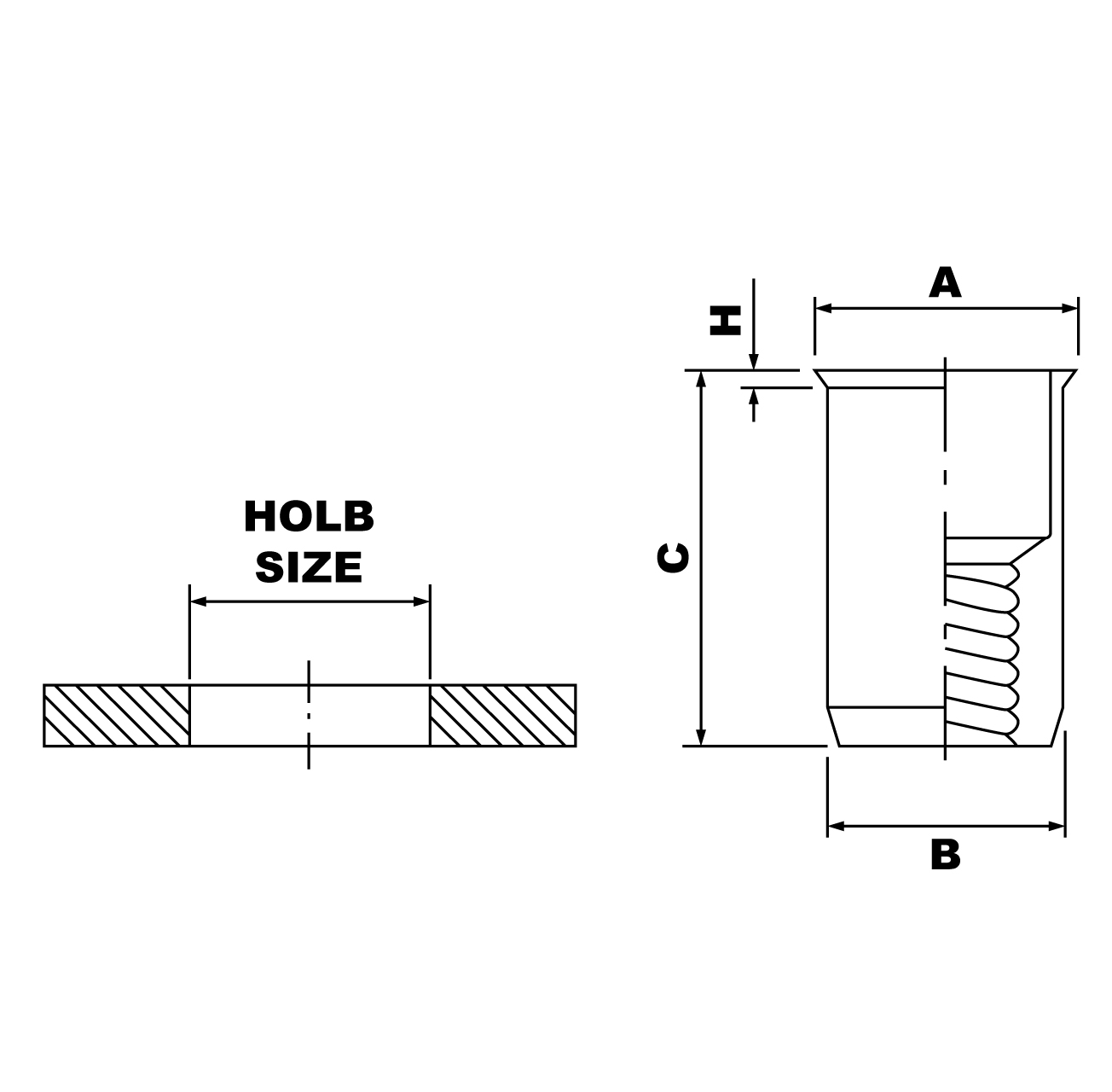

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| R2420 | M4x0.7 | 0.5-2.0 | 6 | 6.90 | 5.97 | 10.00 | 0.45 |
| R2530 | M5x0.8 | 0.5-3.0 | 7 | 8.00 | 6.97 | 12.00 | 0.50 |
| R2630 | M6x1.0 | 0.5-3.0 | 11 | 10.00 | 8.97 | 15.00 | 0.50 |
| R2830 | M8x1.25 | 0.5-3.0 | 11 | 12.00 | 10.97 | 16.00 | 0.50 |
| R21040 | M10x1.5 | 1.0-4.5 | 13 | 14.10 | 12.97 | 20.50 | 0.70 |
