FK SERIES
FK SERIES
STEEL CR+3 BLIND RIVET NUT COUNTERSUNK HEAD, KNURLED BODY, OPEN END
METRIC SIZE :MM
STEEL CR+3 BLIND RIVET NUT COUNTERSUNK HEAD, KNURLED BODY, OPEN END
METRIC SIZE :MM

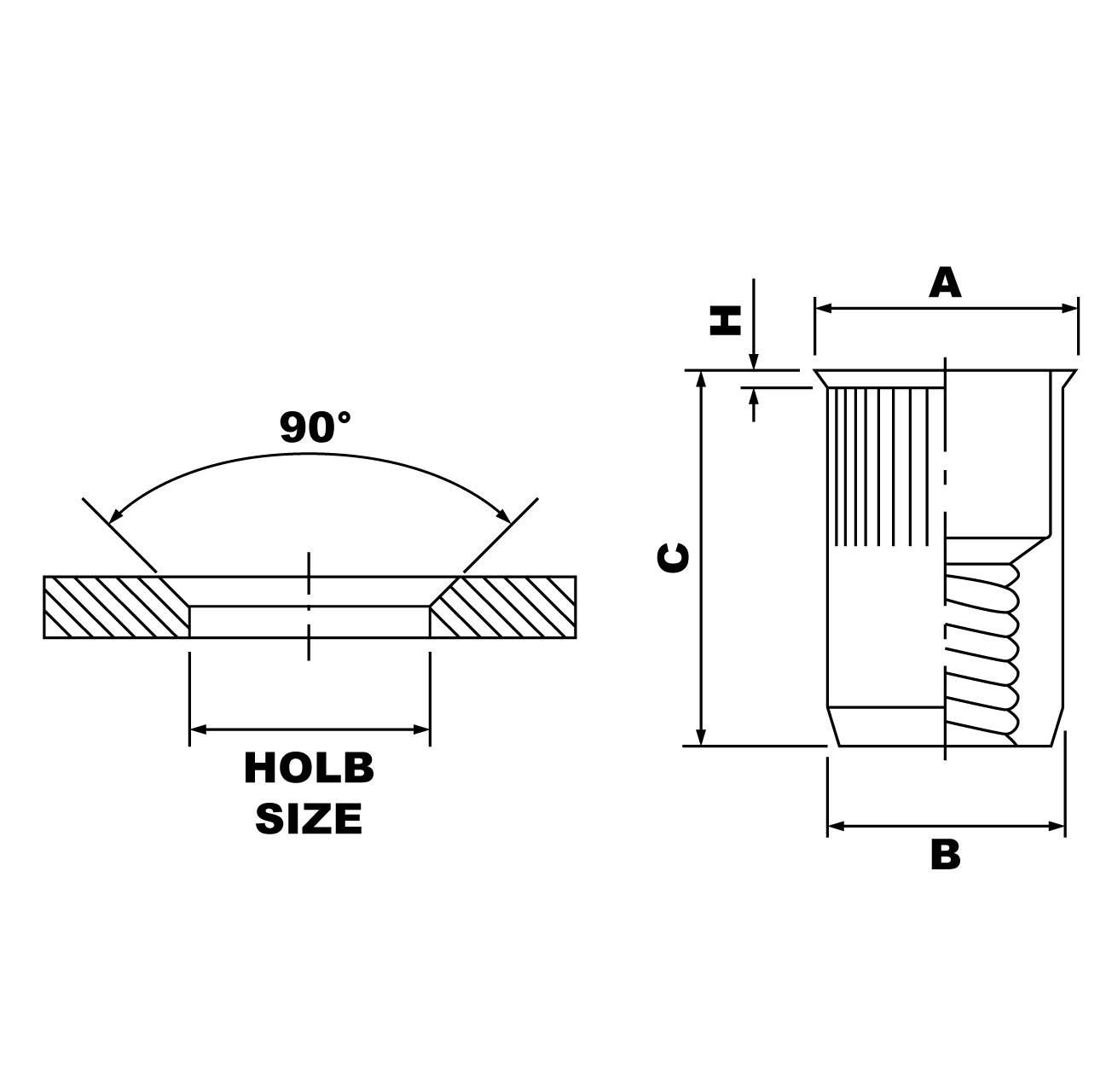

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| FK445 | M4x0.7 | 2.5-4.5 | 6 | 9.00 | 5.97 | 13.80 | 0.80 |
| FK545 | M5x0.8 | 2.0-4.5 | 7 | 11.00 | 6.97 | 15.50 | 2.00 |
| FK550 | M5x0.8 | 2.5-5.0 | 7 | 10.00 | 6.97 | 15.00 | 1.00 |
| FK630 | M6x1.0 | 0.5-3.0 | 9 | 13.00 | 8.97 | 16.00 | 1.50 |
| FK655 | M6x1.0 | 3.5-5.5 | 9 | 13.00 | 8.97 | 19.00 | 1.50 |
| FK660 | M6x1.0 | 4.5-6.0 | 9 | 13.00 | 8.97 | 19.00 | 1.50 |
| FK1030 | M10x1.5 | 1.0-3.0 | 13 | 19.00 | 12.97 | 22.50 | 2.00 |
| FK1240 | M12x1.75 | 1.0-4.0 | 16 | 23.00 | 15.97 | 27.00 | 2.00 |
