RK SERIES
RK SERIES
STEEL CR+3 BLIND RIVET NUT COUNTERSUNK HEAD, KNURLED BODY, OPEN END
METRIC SIZE :MM
.jpg)

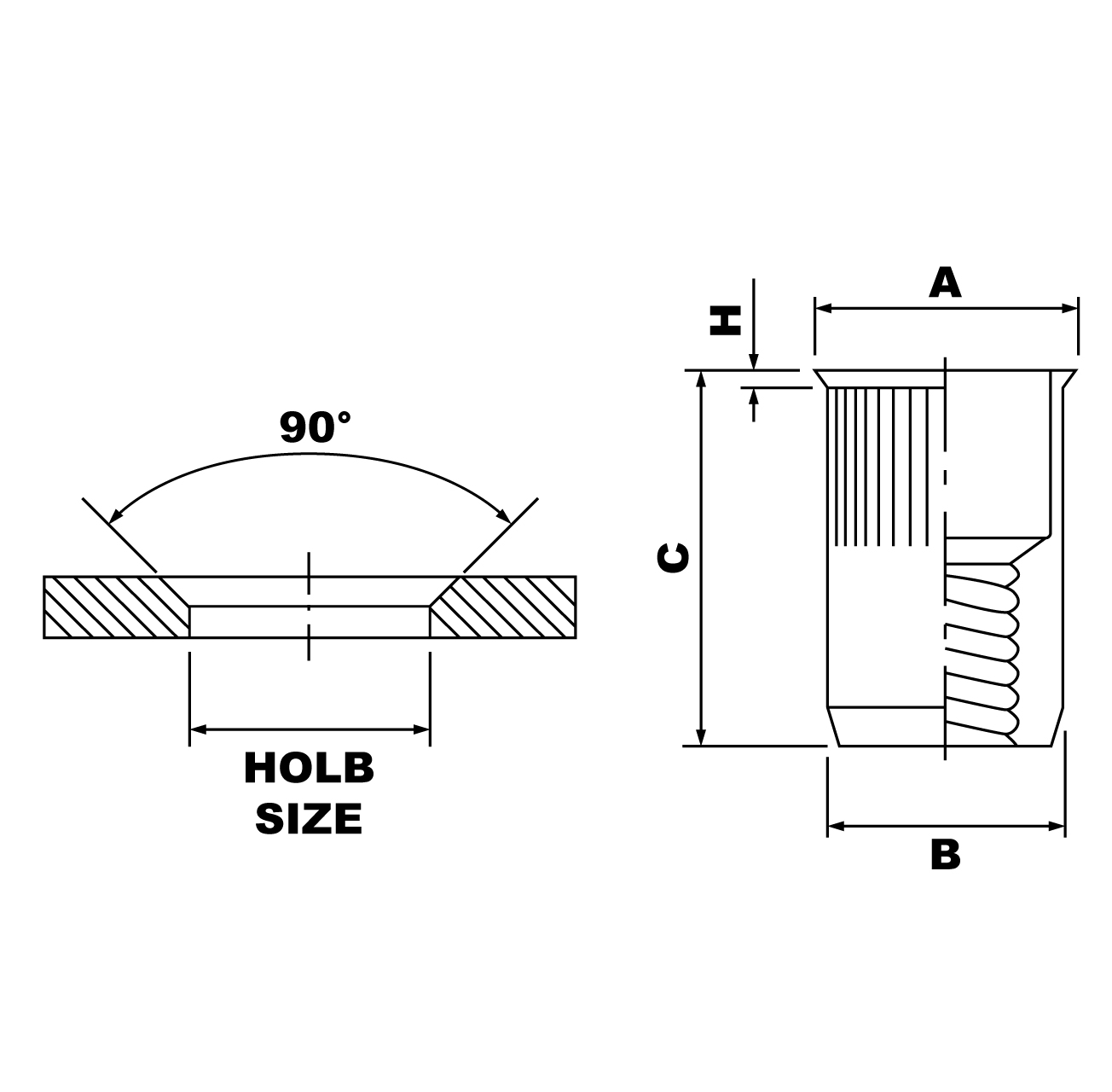

STEEL CR+3 BLIND RIVET NUT COUNTERSUNK HEAD, KNURLED BODY, OPEN END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| RK435 | M4x0.7 | 1.5-3.5 | 6 | 8.50 | 5.97 | 11.50 | 1.50 |
| RK450 | M4x0.7 | 3.5-5.0 | 6 | 8.50 | 5.97 | 13.00 | 1.50 |
| RK540 | M5x0.8 | 1.5-4.0 | 7 | 9.50 | 6.97 | 13.00 | 1.50 |
| RK645 | M6x1.0 | 1.5-4.5 | 9 | 11.50 | 8.97 | 16.00 | 1.50 |
| RK660 | M6x1.0 | 4.5-6.0 | 9 | 11.50 | 8.97 | 17.50 | 1.50 |
| RK845 | M8x1.25 | 1.5-4.5 | 11 | 13.50 | 10.97 | 18.50 | 1.50 |
| RK865 | M8x1.25 | 4.5-6.5 | 11 | 13.50 | 10.97 | 21.00 | 1.50 |
| RK1045 | M10x1.5 | 1.5-4.5 | 13 | 15.50 | 12.97 | 22.00 | 1.50 |
| RK1245 | M12x1.75 | 1.8-4.5 | 16 | 18.50 | 15.97 | 26.00 | 1.80 |
| RK1275 | M12x1.75 | 4.5-7.5 | 16 | 18.50 | 15.97 | 29.00 | 1.80 |
