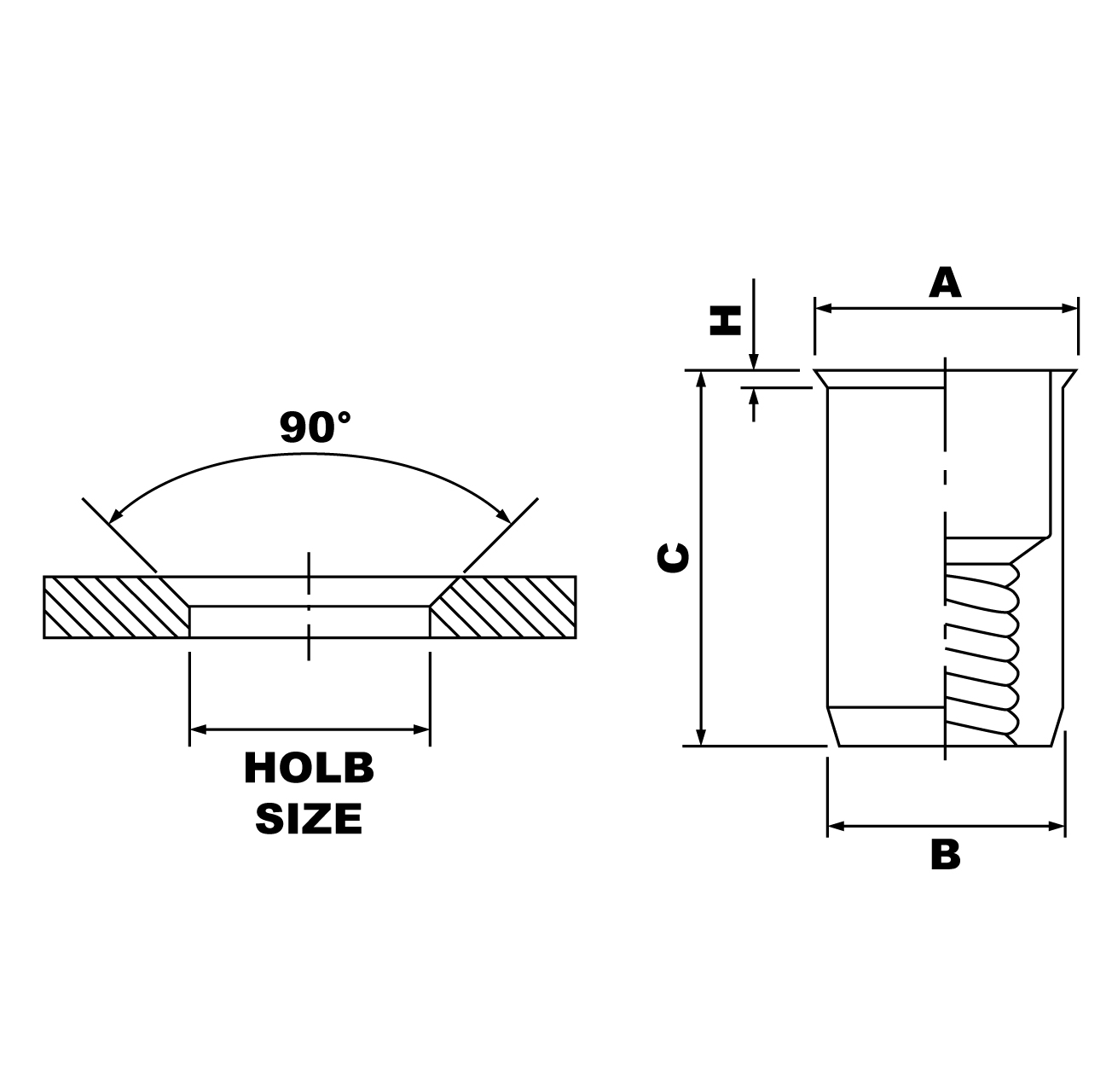

STEEL CR+3 BLIND RIVET NUT COUNTERSUNK HEAD, OPEN END
METRIC SIZE :MM
STEEL CR+3 BLIND RIVET NUT COUNTERSUNK HEAD, OPEN END
METRIC SIZE :MM
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE+0.1 | A±0.3 | B max | C±0.3 | H±0.2 |
| C325 | M3x0.5 | 1.5-2.5 | 5 | 6.50 | 4.97 | 10.50 | 1.00 |
| C435 | M4x0.7 | 1.5-3.5 | 6 | 8.50 | 5.97 | 11.50 | 1.50 |
| C450 | M4x0.7 | 3.5-5.0 | 6 | 8.50 | 5.97 | 13.00 | 1.50 |
| C540 | M5x0.8 | 1.5-4.0 | 7 | 9.50 | 6.97 | 13.00 | 1.50 |
| C555 | M5x0.8 | 4.0-5.5 | 7 | 9.50 | 6.97 | 14.50 | 1.50 |
| C645 | M6x1.0 | 1.5-4.5 | 9 | 11.50 | 8.97 | 16.00 | 1.50 |
| C660 | M6x1.0 | 4.5-6.0 | 9 | 11.50 | 8.97 | 17.50 | 1.50 |
| C845 | M8x1.25 | 1.5-4.5 | 11 | 13.50 | 10.97 | 18.50 | 1.50 |
| C860 | M8x1.25 | 4.5-6.0 | 11 | 13.50 | 10.97 | 20.00 | 1.50 |
| C1030 | M10x1.5 | 1.5-3.0 | 13 | 15.50 | 12.97 | 20.50 | 1.50 |
| C1045 | M10x1.5 | 3.0-4.5 | 13 | 15.50 | 12.97 | 22.00 | 1.50 |
| C1062 | M10x1.5 | 4.5-6.0 | 13 | 15.50 | 12.97 | 23.50 | 1.50 |
| C1245 | M12x1.75 | 1.8-4.5 | 16 | 19.00 | 15.97 | 26.00 | 1.80 |
