Bedding / Carton Pliers
| Model No |
SJ Type |

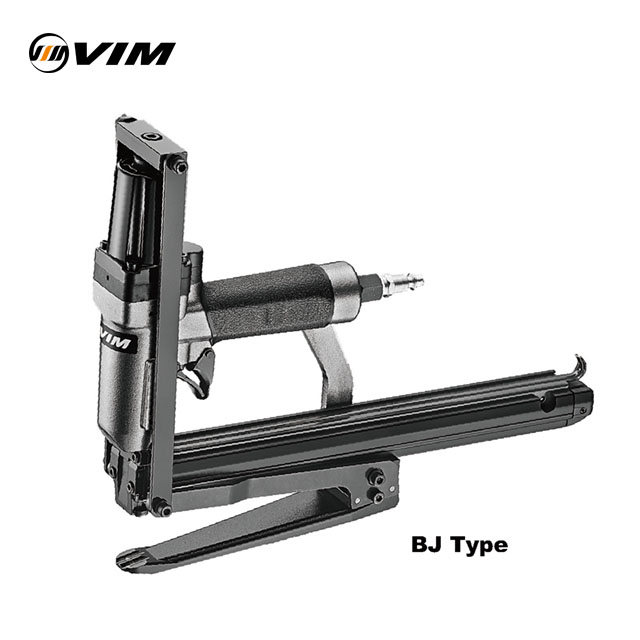

BJ Type | LJ Type |
| L x W x H | 302 x 63 x 362 mm | 306 x 63 x 362 mm |
325 x 63 x 362 mm |
| Weight | 2.1 kgs | 2.2 kgs |
2.2 kgs |
| Model No |

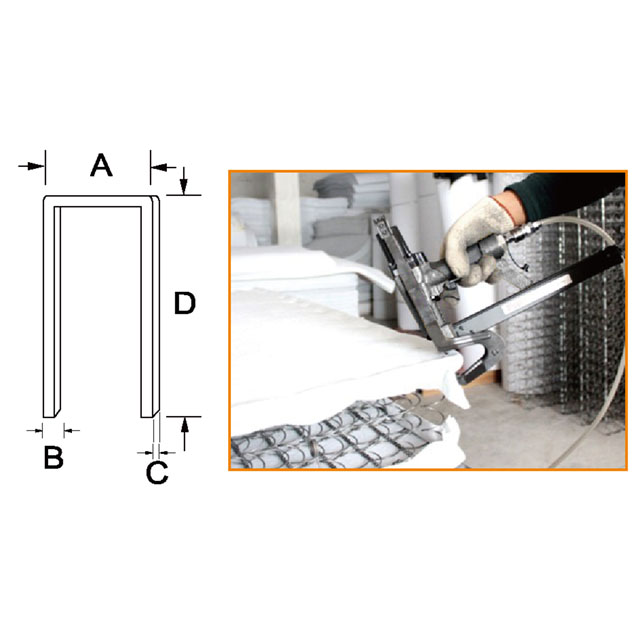

Crown(A) |
Width(B) x Thickness(C) |
Length(D) |
Capacity |
| P88SJ / P88BJ / P88LJ |
13.2 mm | 0.5 x 1.2 mm | 12~25 mm | 200 pcs |
| P11025SJ / P11025BJ / P11025LJ |
13.2 mm |
0.6 x 1.6 mm | 12~25 mm |
200 pcs |
| P11025KSJ / P11025KBJ / P11025KLJ |
12.8 mm |
0.6 x 1.6 mm | 12~25 mm |
200 pcs |
| F1B77716SJ / F1B77716BJ / F1B77716LJ |
12.6 mm | 0.7 x 2.3 mm | 8~16 mm | 100 pcs |
| F1B77725SJ / F1B77725BJ / F1B77725LJ |
12.6 mm | 0.7 x 2.3 mm | 16~25 mm |
100psc |
| F1B77916SJ / F1B77916BJ / F1B77916LJ |
12.5 mm | 0.6 x 1.3 mm | 12~25 mm |
168 pcs |
| F1B77925SJ / F1B77925BJ / F1B77925LJ |
12.5 mm | 0.6 x 1.3 mm | 8~16 mm | 168 pcs |
| 19525SJ / 19525BJ / 19525LJ |
12.8 mm | 0.65 x 1.8 mm | 12~25 mm |
200 pcs |
| 8016SJ / 8016BJ / 8016LJ |
12.9 mm | 0.65 x 0.95 mm | 8~16 mm | 250 pcs |
| 8025SJ / 8025BJ / 8025LJ |
12.9 mm | 0.65 x 0.95 mm | 12~25 mm |
250 pcs |
| 1216JSJ / 1216JBJ / 1216JLJ |
12.8 mm | 0.55 x 1.27 mm | 6~16 mm | 200 pcs |
| F16J16SJ / F16J16BJ / F16J16LJ |
11.9 mm | 0.55 x 1.99 mm | 8~16 mm | 200 pcs |
.jpg)
.jpg)
.jpg)
APPLICATION
Furniture, bedding
Ticking(Flange) to innerspring
Novelty
Components
FEATURES
Easy loading
