Overall Length	5 7/8" (150 mm)
Weight	1.3 kgs (3 LB)

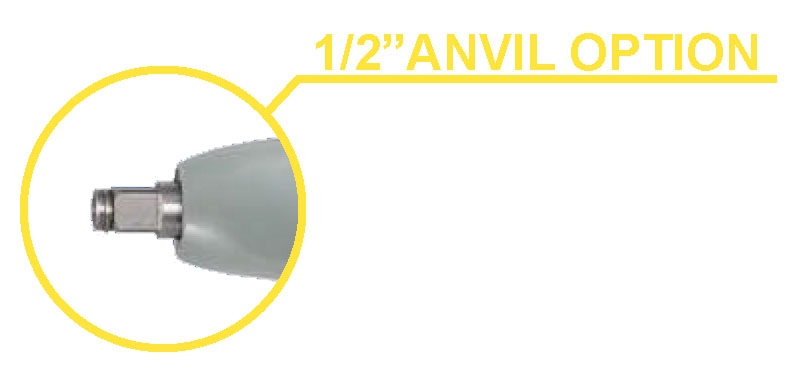

Square Drive	3/8" / 1/2"
Bolt Capacity	1/2" (M13)
Avg. Air Con.	3.0 CFM (85.8 L/min)
Air Inlet	1/4"
Hose Size (I.D.)	3/8"
Air Pressure	90 PSI (6.2 Bar)
Torque (5 Sec.)	190 FT-LB / 258 N.m.
Max Torque (10 Sec.)	220 FT-LB / 298 N.m.
Free Speed	10200 RPM
Vibration	4.5 m/s2
Sound Pressure Level	88 Dba

APPLICATION



FEATURES

Mechanism: Pin Clutch
Highest durable grade steel anvil
Front exhaust
Forward：3 positions
Reverse：1 position
Light torque with stability and smoothnes
Die casting housing
Components with durable and heavy duty materials
