Pneumatic Side Bottomer PSB120,PSB150,PSB170,PSB230
| L x W x H | 735x600x1620 mm |
| Weight | 33.3 kgs |
| Air Pressure | 5~7 kgs/cm² |

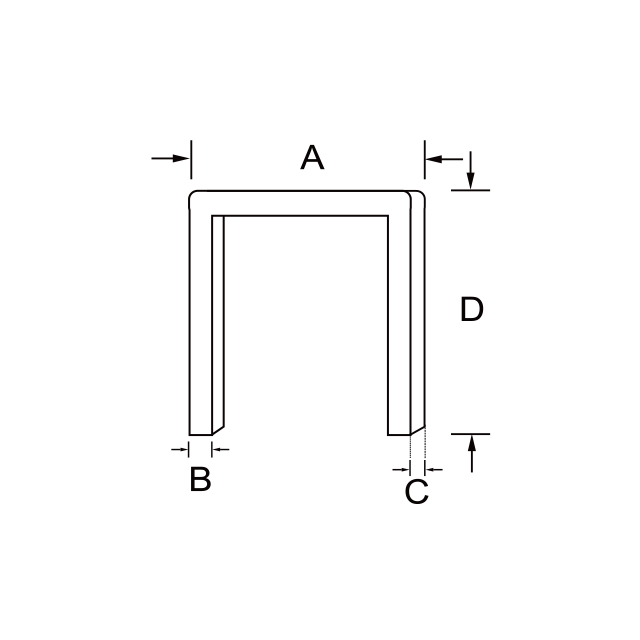

| Model No | Crown(A) | Width(B)x Thickness(C) |
Length(D) | Working Height | Working Depth |
| PSB12035/PSB15035 PSB17035/PSB23035 |
34.7 mm | 0.9 x 2.3 mm | 15,18,22 mm | 1200/1500 1700/2300 mm |
310 mm |
| PSB12032/PSB15032 PSB17032/PSB23032 |
34 mm | 0.9 x 2.3 mm | 16,19,22 mm | 1200/1500 1700/2300 mm |
310 mm |
| PSB12034/PSB15034 PSB17034/PSB23034 |
32 mm | 0.9 x 1.9 mm | 15,18,22 mm | 1200/1500 1700/2300 mm |
310 mm |
| PSB1207437/PSB1507437 PSB1707437/PSB2307437 |
34.5mm | 0.9 x 1.9 mm | 15,18 mm | 1200/1500 1700/2300 mm |
310 mm |
| PSB1209040/PSB1509040 PSB1709040/PSB2309040 |
34.5 mm | 0.9 x 2.3 mm | 15,18,22 mm | 1200/1500 1700/2300 mm |
310 mm |
| PSB12016/PSB15016 PSB17016/PSB23016 |
16 mm | 0.6 x 1.8 mm | 8,15,18,22 mm | 1200/1500 1700/2300 mm |
310 mm |

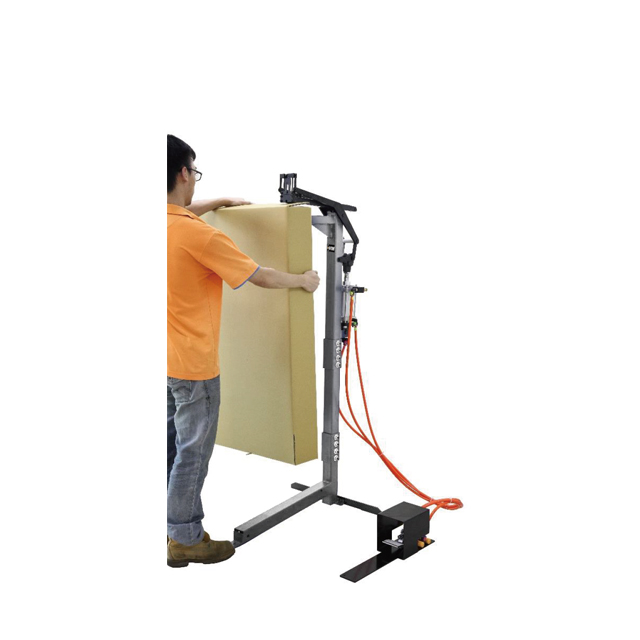

APPLICATION
Adjustable height penumatic side bottomer to help you with stapling
large cartion lid and bottoms as well as storing itself
FEATURES
FEATURES
Depth and working height can be adjustable
The use of a pneumatic bottomer is advisable
The model is equipped with a safety foot pedal
Easy Staple load design for fast staple loading
Short ergonomic foot pedal designed for speed and easy actuation
Robust with steel tubing frame and wearing parts of hardened steel
