Hand Free Coil Carton Stapler Switch Bracket HCSRR3218B,HCSGR3218B,HCSRR3222B,HCSS3418B,HCST3218B
|
L x W x H
|
530X200X500 mm
|
|

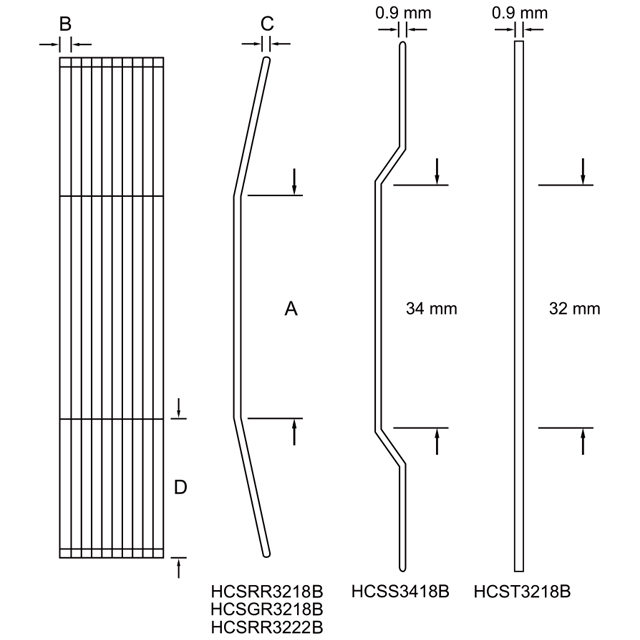

Model No
|
Crown(A)
|
Staple

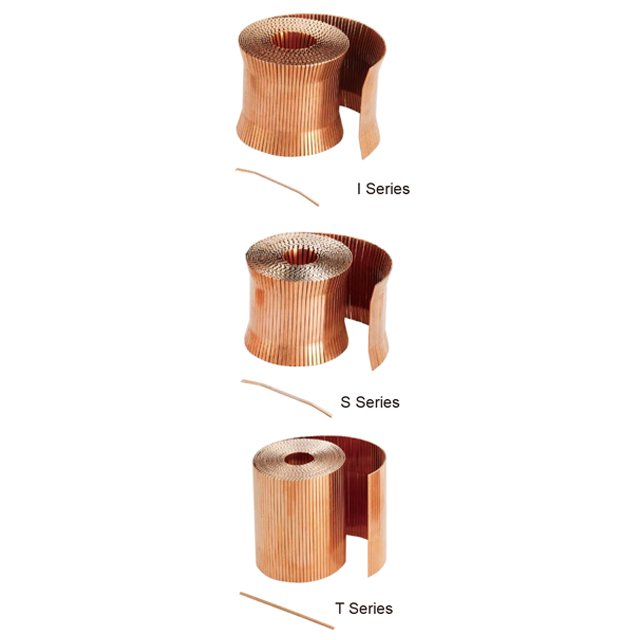

Series |
Width(B)x
Thickness(C) |
Lenght(D)
|
Capacity
|
|
HCSRR3218B
|
32 mm
|
I Series
|
0.9 x 1.9 mm
|
15,18 mm
|
1000 pcs
|
|
HCSGR3218B
|
32 mm
|
I Series
|
0.9 x 2.3 mm
|
15,18 mm
|
1000 pcs
|
|
HCSRR3222B
|
32 mm
|
I Series
|
0.9 x 2.3 mm
|
18,22 mm
|
1000 pcs
|
|
HCSS3418B
|
34 mm
|
S Series
|
0.9 x 1.9 mm
|
15,18 mm
|
1000 pcs
|
|
HCST3218B
|
32 mm
|
T Series
|
0.9 x 1.9 mm
|
15,18 mm
|
1000 pcs |
APPLICATION
Small to medium box closure
Ideal for overlap cartons and five panel folders
Ideal for replacing or enhancing glue system
FEATURES
Carton contact activated trip allows operator to both hands to maneuver carton for side strike stapling
FEATURES
Carton contact activated trip allows operator to both hands to maneuver carton for side strike stapling
