Hand Free Coil Carton Staplers HCSRR3218, HCSGR3218, HCSRR3222, HCSS3418, HCST3218
|
L x W x H
|
280x120x350 mm |
|

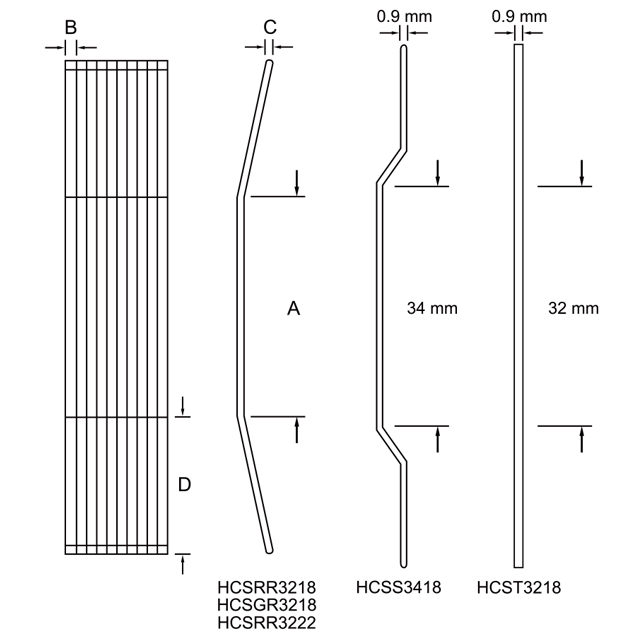

Model No
|
Crown(A) | Staple Series |
Width(B)x Thickness(C) |
Length(D) |
| HCSRR3218 |
32 mm |

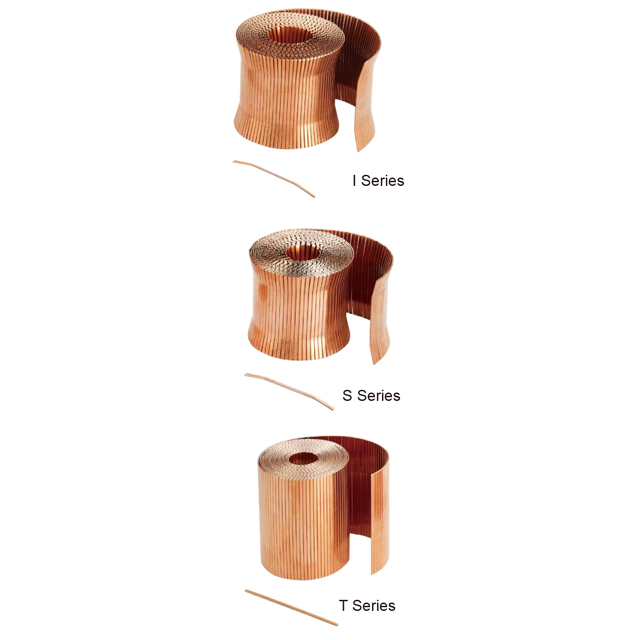

I Series |
0.9 x 1.9 mm |
15,18 mm |
| HCSGR3218 | 32 mm | I Series |
0.9 x 2.3 mm |
15,18 mm |
|
HCSRR3222
|
32 mm |
I Series |
0.9 x 2.3 mm |
18,22 mm |
| HCSS3418 | 34 mm | S Series | 0.9 x 1.9 mm | 15,18 mm |
| HCST3218 | 32 mm |
T Series |
0.9 x 1.9 mm |
15,18 mm |
.jpg)
APPLICATION
Small to medium box closure
Ideal for overlap cartons and five panel folders
Ideal for replacing or enhancing glue system
FEATURES
Carton contact activated trip allows operator to both hands to maneuver carton for side strike stapling
FEATURES
Carton contact activated trip allows operator to both hands to maneuver carton for side strike stapling
